TSC TDP-225 Series Service Manual

TDP-225 Series
Bar Code Printer Service Manual
16

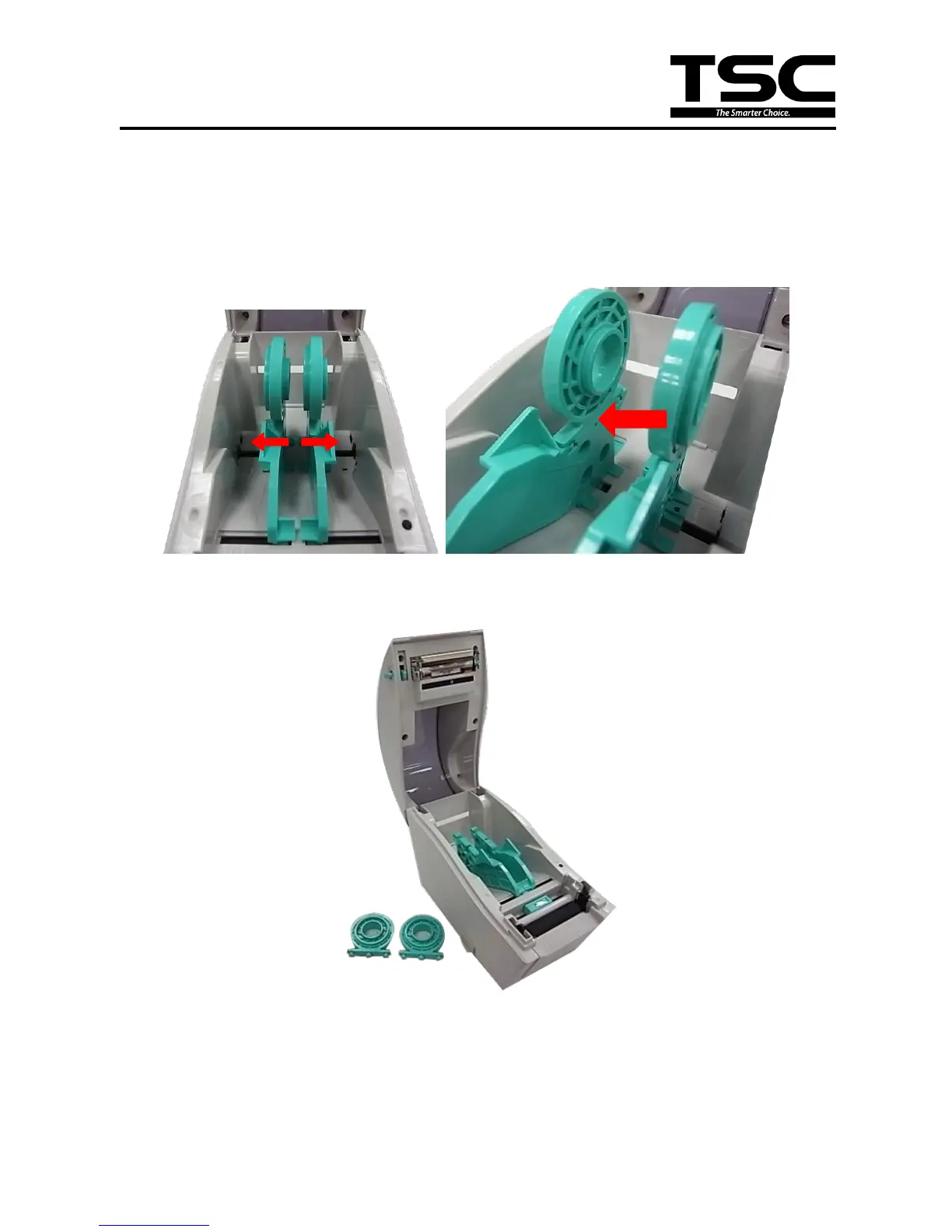

3.4 Replacing the Media Holder Hub (For TDP-225/324 model)
1. Open the printer top cover.
2. Hold the media holder and push the bottom of the media holder hub to remove the media
holder hub.
3. Refer to the same steps to remove the other media holder hub.
4. Reassemble the parts in the reverse procedures.
PUSH

TSC TDP-225 Series Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 DPI
Memory	8 MB Flash
Processor	32-bit RISC
Interface	USB 2.0
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-40°F to 140°F (-20°C to 60°C)
Label Width	60 mm (2.36")
