TSC TDP-225 Series Service Manual

TDP-225 Series
Bar Code Printer Service Manual
15

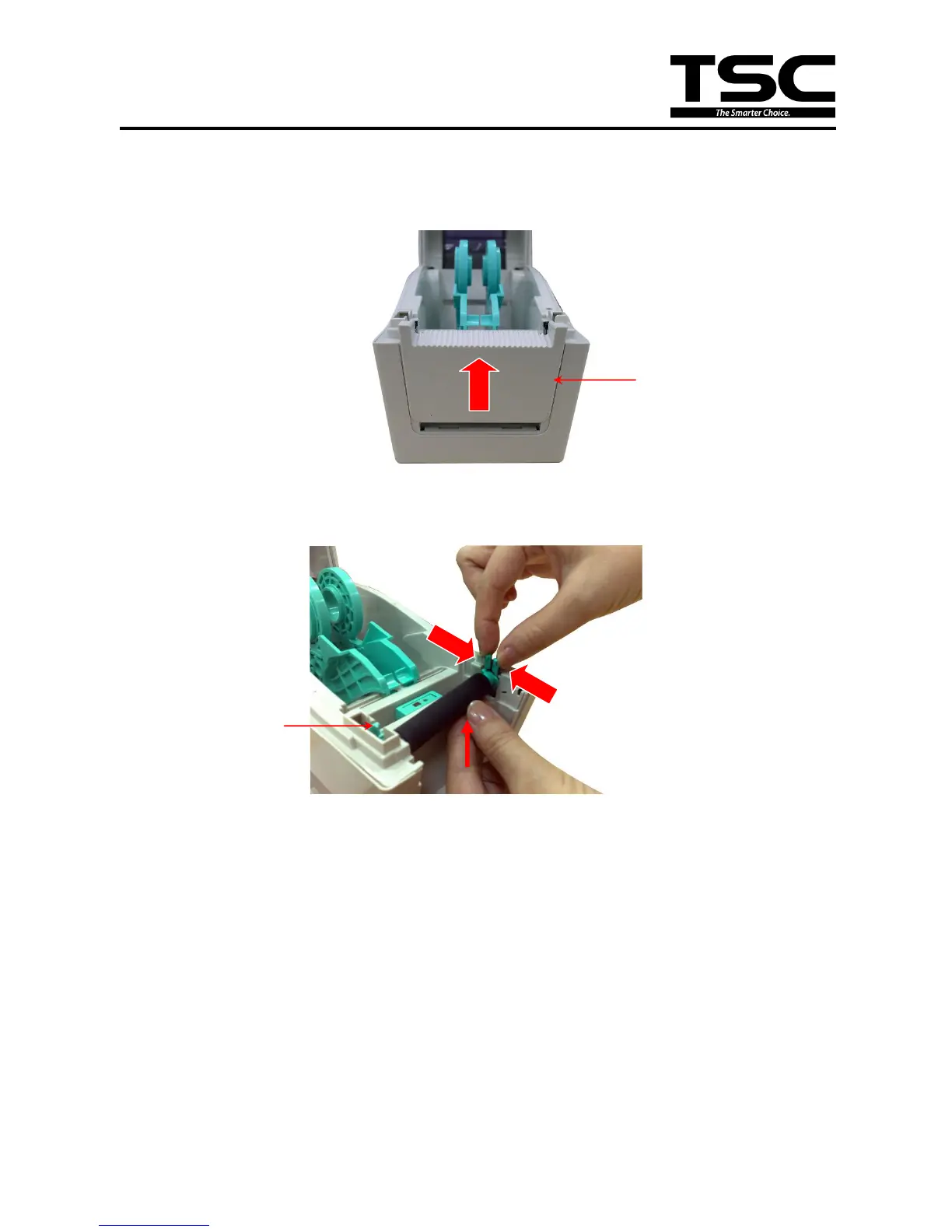

3.3 Replacing the Platen Roller Assembly
1. Open the printer top cover and remove the lower front cover.
2. Take out the platen roller assembly from the lower inner cover by pressing on the
right side and left side holder tabs of platen.
4. Replace a new platen roller assembly.
5. Reassemble the parts in the reverse procedures.
Tabs
Lower front cover

TSC TDP-225 Series Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 DPI
Memory	8 MB Flash
Processor	32-bit RISC
Interface	USB 2.0
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-40°F to 140°F (-20°C to 60°C)
Label Width	60 mm (2.36")
