TSC TDP-225 Series Service Manual

TDP-225 Series
Bar Code Printer Service Manual
17

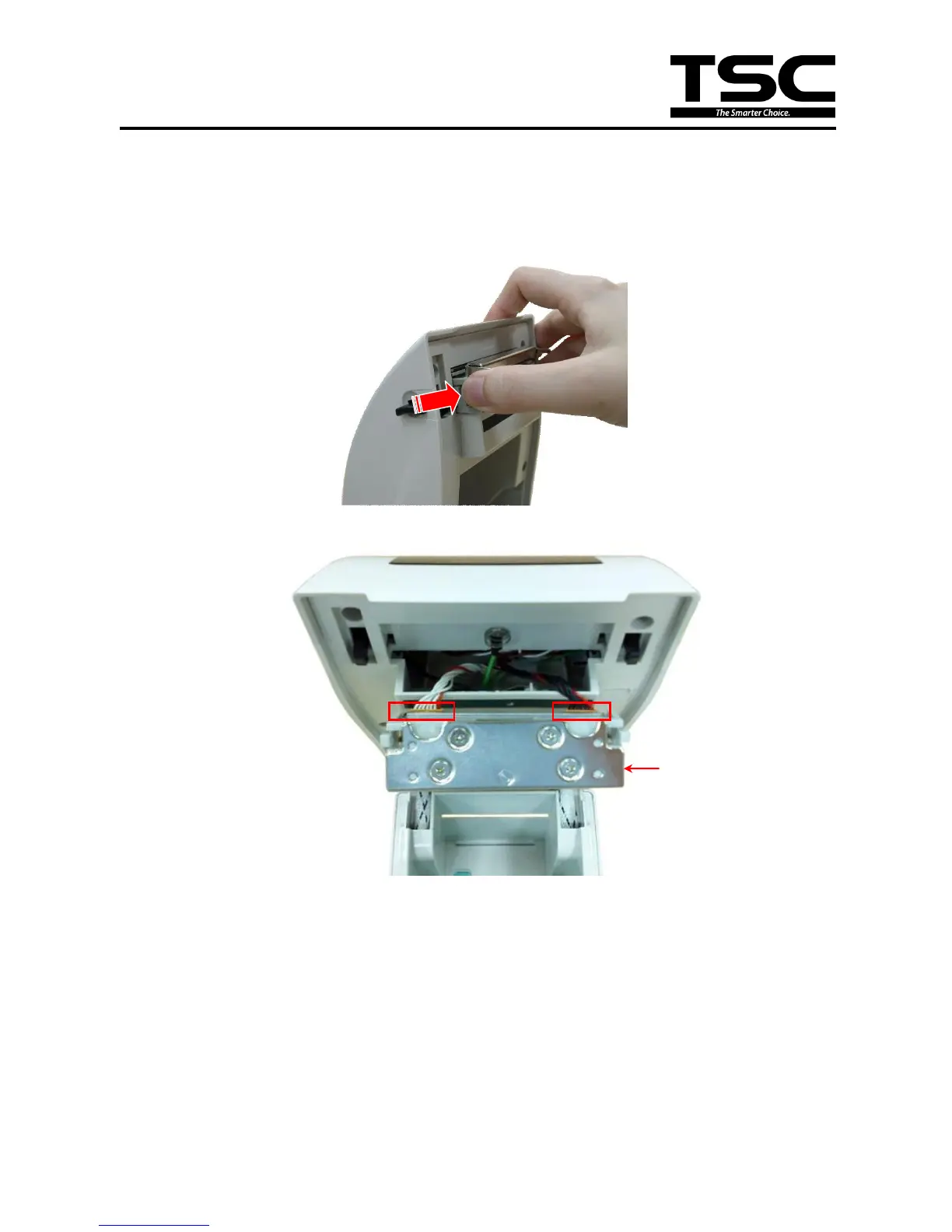

3.5 Replacing the Print Head Assembly
1. Open the printer top cover.
2. Press left concave of the print head bracket then pick up the print head assembly.
3. Disconnect the print head harness. Replace the print head assembly.
4. Reassemble the parts in the reverse procedures.
Print head assembly

TSC TDP-225 Series Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 DPI
Memory	8 MB Flash
Processor	32-bit RISC
Interface	USB 2.0
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-40°F to 140°F (-20°C to 60°C)
Label Width	60 mm (2.36")
