TSC TTP 243 Pro User Manual

7
TTP-243 Pro/ 243E Pro/ 342 Pro
Bar Code Printer
1.7 Various Sensors

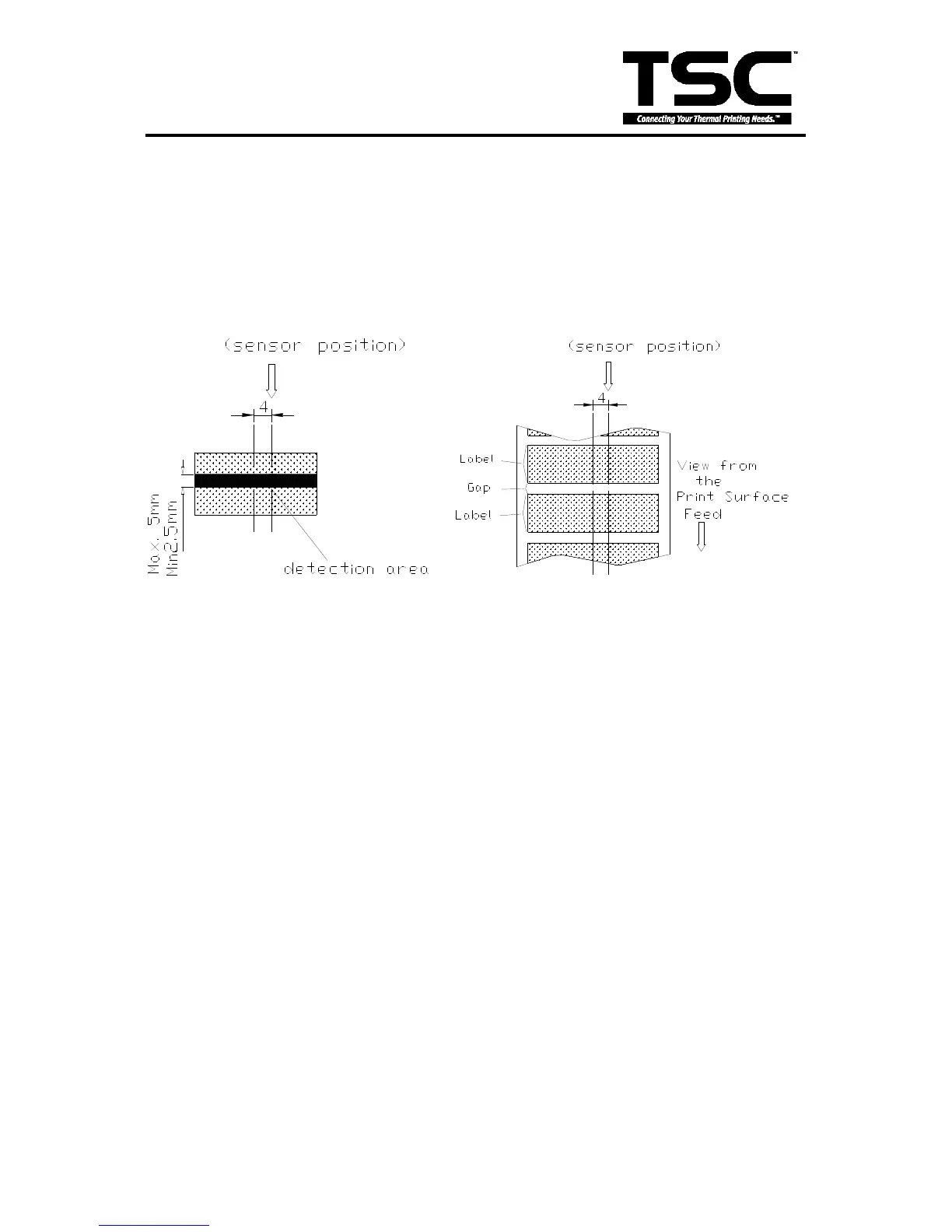

Feed Gap Sensor
The feed gap sensor detects a label gap to locate the starting print position of the next
label. The sensor is mounted 4 mm off the center line of the main mechanism.
.
In case of Label
Black Mark Sensor
The black mark sensor locates the position of label by emitting infrared rays onto the
black mark at the back of the ticket. The sensor is mounted 5.75 mm off the center line of
the ticket roll width on the mechanism.

TSC TTP 243 Pro Specifications

General

Brand	TSC
Model	TTP 243 Pro
Category	Barcode Reader
Language	English
