31
TTP-243 Pro/ 243E Pro/ 342 Pro
Bar Code Printer
4.10 Ribbon Sensor (Transmitter) / Gap Sensor (Transmitter) Replacement
1. Follow the instructions in Section 4.1 to remove all the connectors on mainboard.

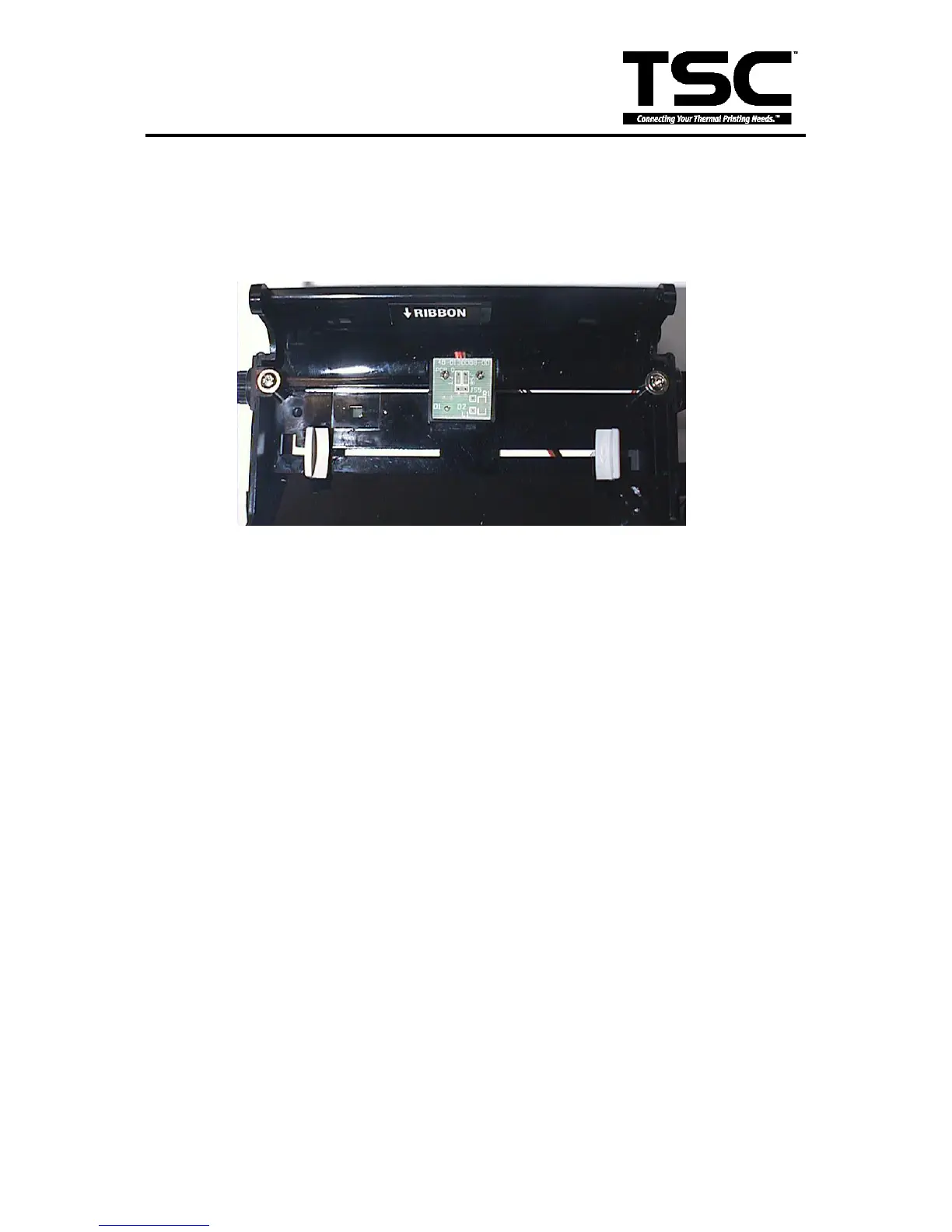

2. The ribbon sensor (transmitter) is located in the center of the lower mechanism.
Ribbon Sensor (Transmitter)
3. Remove the two flat tap screws.
4. Remove the cable tie and sensor PCB.
5. Replace with a new PCB. Reassemble the removed parts in the reverse order of removal.
