4.7 Stepping Motor Replacement
1. Follow the instructions in Section 4.1 to remove all the connectors on mainboard.
2. Take out the mechanism.

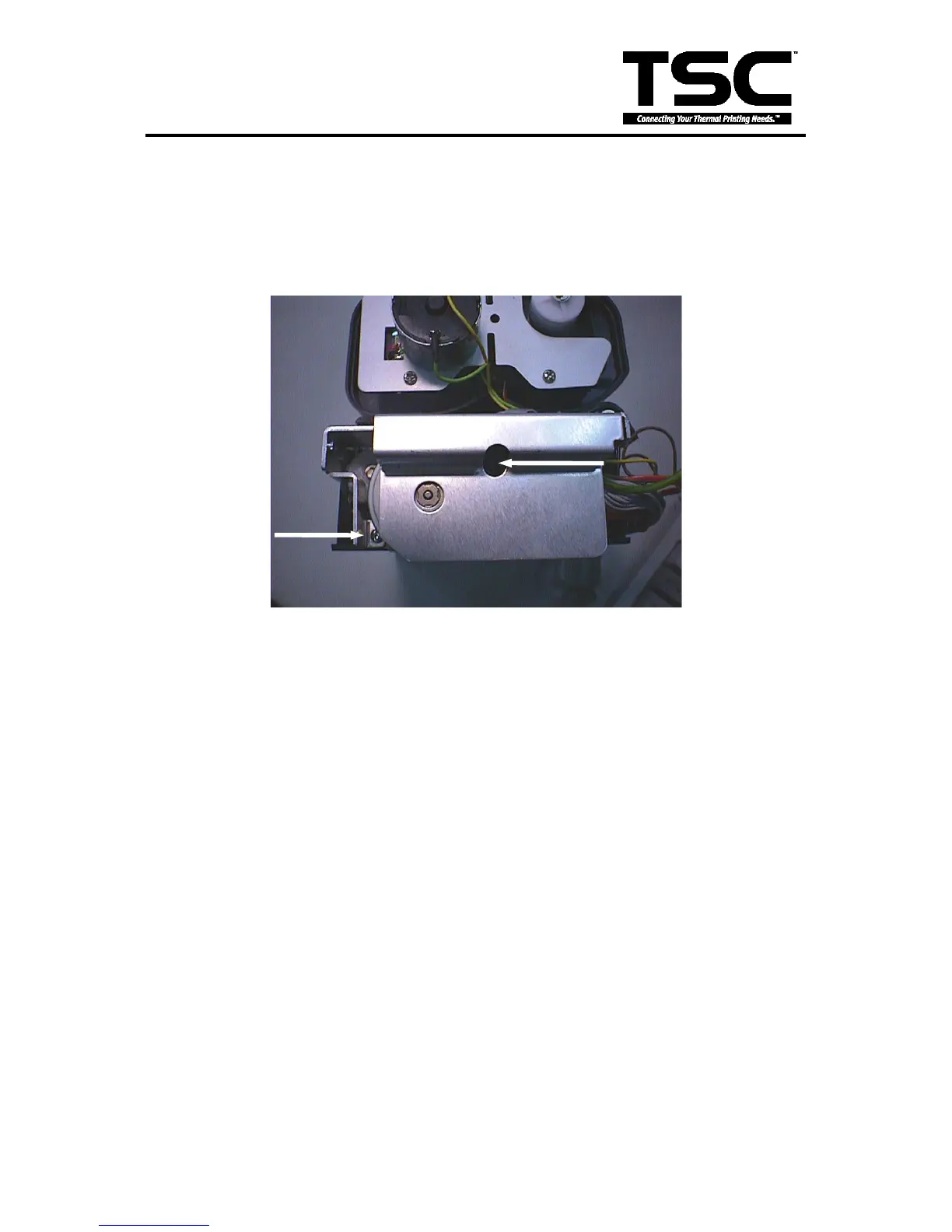

3. Remove the two screws of the stepping motor.
Stepping Motor
4. Replace the stepping motor and reassemble the removed parts in the reverse order of removal.
