TSC TTP 243 Pro User Manual

32
TTP-243 Pro/ 243E Pro/ 342 Pro
Bar Code Printer

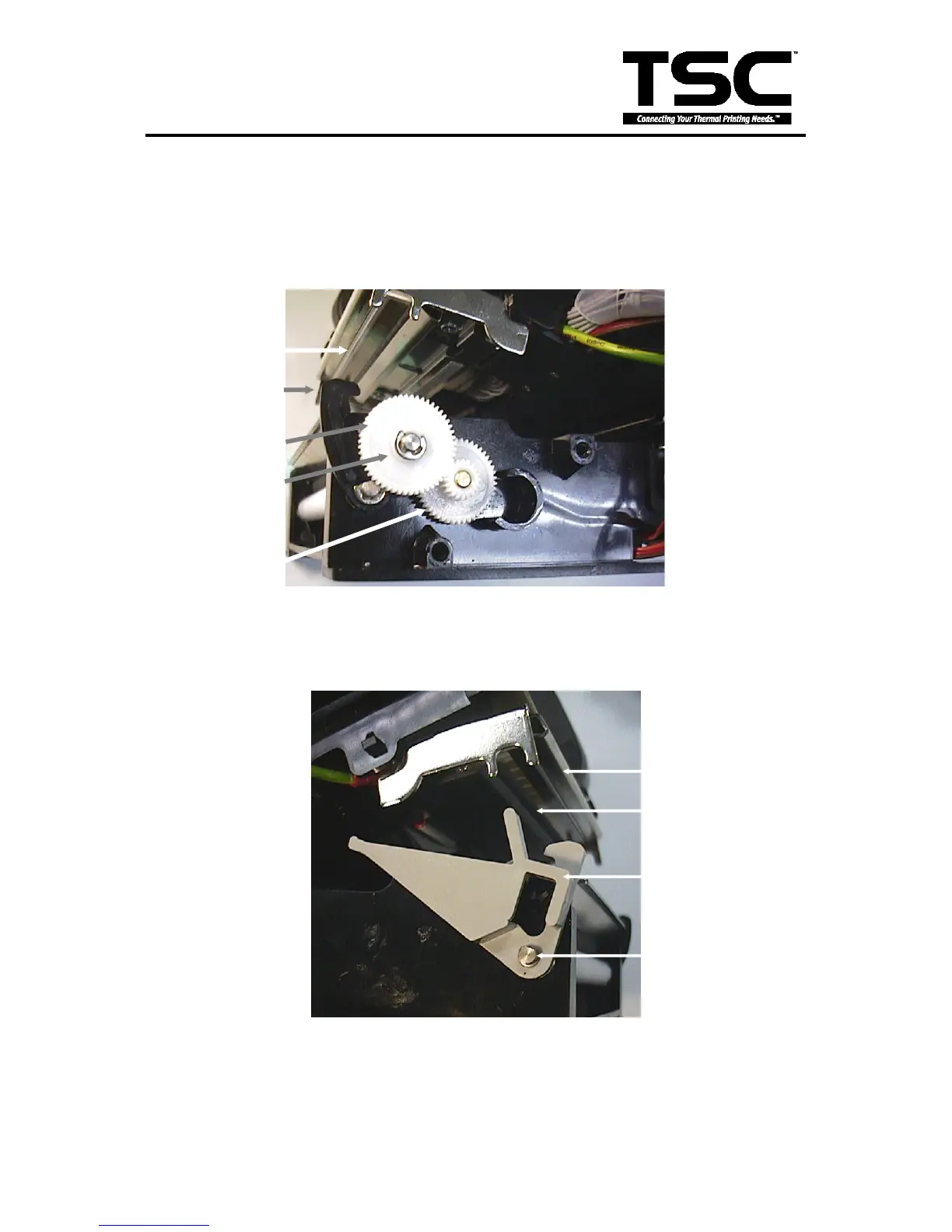

4.11 Platen Replacement
1. Follow the instructions in Section 4.7 to remove the two screws, stepping motor and stepping
motor cover.
2. Remove the E ring and two gears.
Location of E ring and Gears
3. Remove the E-ring and the printer carriage release lever on the left side of the mechanism.
4. Remove the E-ring and the printer carriage release lever arm.
Printer carriage release lever and E ring
Printer
Carriage
Release Lever
E Ring
Thermal Head
Bracket
Thermal Head
Gear #1
E Ring
Gear #2
Printer Carriage
Release lever arm
