4.3 Print Head Replacement
1. Turn off the printer power.
2. Remove the RS-232 cable and power cord.
3. Open the top cover.
4. Remove the ribbon and label roll.
5. Open the print carriage.

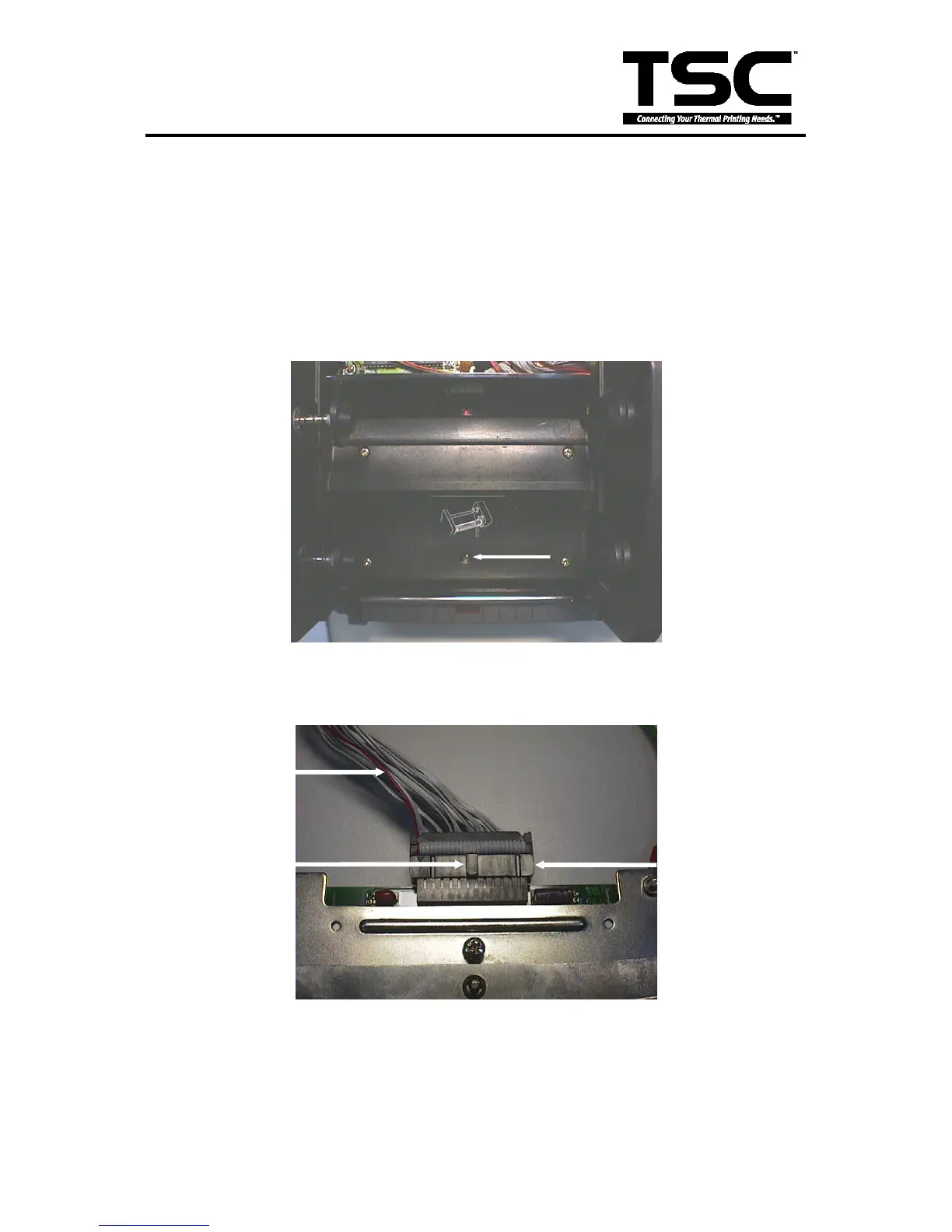

6. Remove the screw at the top front center of the mechanism, as shown.
The Print Head Screw
7. Disconnect the print head cable.
Printhead and the Cable
Print Head
Connector
Key of the
Connector
Print Head
Cable
