TSC TTP-247 Series User Manual

8
4. To close the cover, lift up the top cover to the ultimate angle then close the top cover gently and it will be kept at a stop position
between 1 and 2 for a while. Use both hands to gently push down the top cover to close it and make sure the cover is latched on
both sides.
Note: DO NOT place your hands between top cover and lower cover while close the top cover!

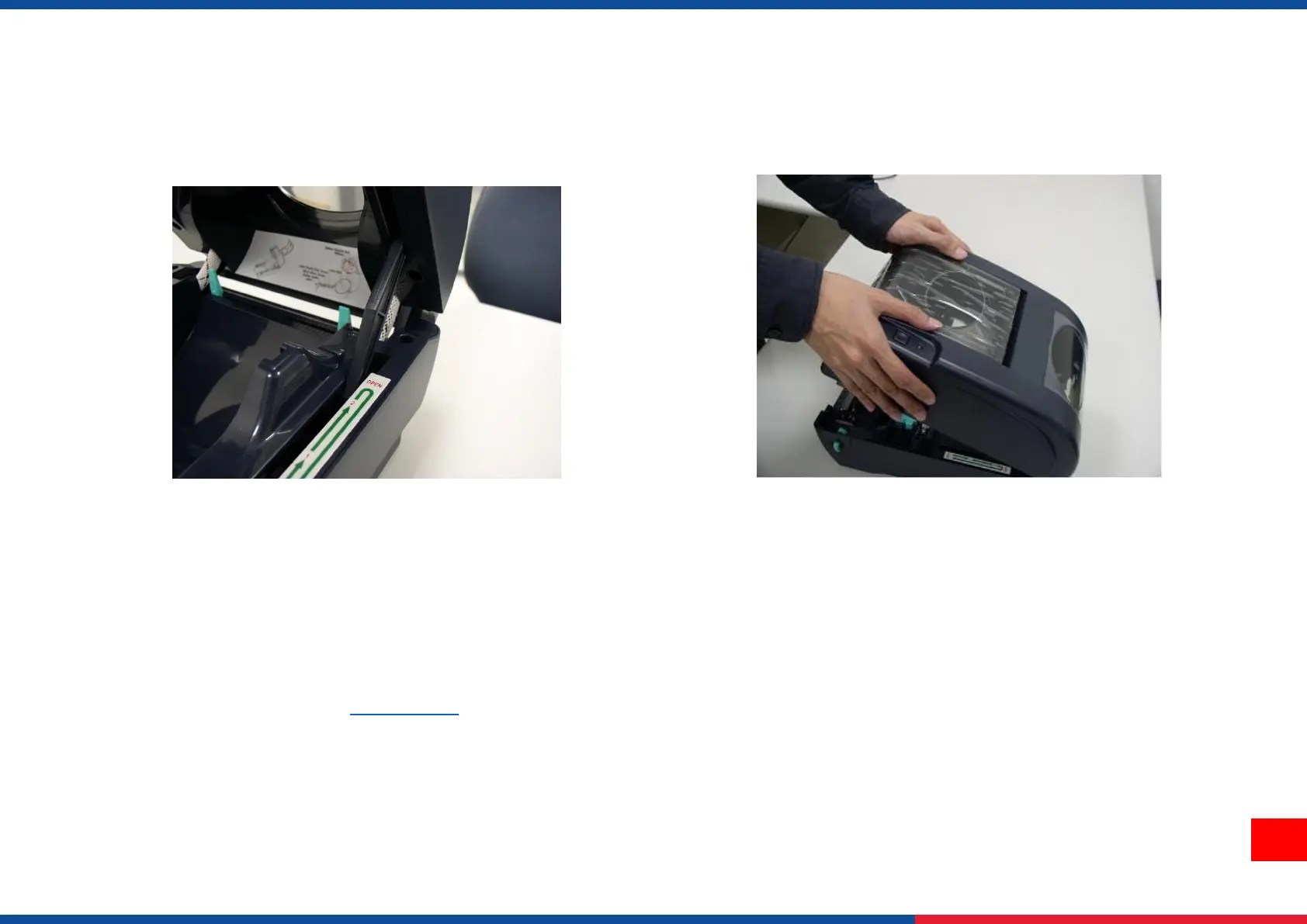

Top cover is fully open and ready to close Use both hands to close the top cover
5. Do not force the cover! If you are not sure if top cover is fixed at stop position, please do not push top cover to close it or the
top cover will be damaged.
Please open the top cover to the ultimate angle to close the top cover again. Use both hands to push top cover to close it.
Note:
Please refer to videos on TSC YouTube or driver CD.

TSC TTP-247 Series Specifications

General

Resolution	203 dpi
Max Print Width	4.09" (104 mm)
Processor	32-bit RISC CPU
Operating Temperature	41°F to 104°F (5°C to 40°C)
Print Method	Thermal Transfer and Direct Thermal
Max Print Speed	7 ips
Memory	8 MB SDRAM
Interface	USB 2.0
Ribbon Capacity	300 meters
Media Sensor	Reflective, Transmissive
Label Width	1" (25.4 mm) ~ 4.33" (110 mm)
Label Thickness	0.0028" to 0.008" (0.07 mm to 0.2 mm)
Power Supply	100-240V AC, 50/60 Hz
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Operating Humidity	25 ~ 85% non-condensing
Maximum Print Length	39.37" (1000 mm)
