TSC TTP-247 Series User Manual

30
5.6 Setting Post-Print Action
When the printer is equipped with other opton kits, ex: cutter, peeler, rewinder, please select the mode after finishing the calibration.
Follow below procedure to set the post action for the printing:

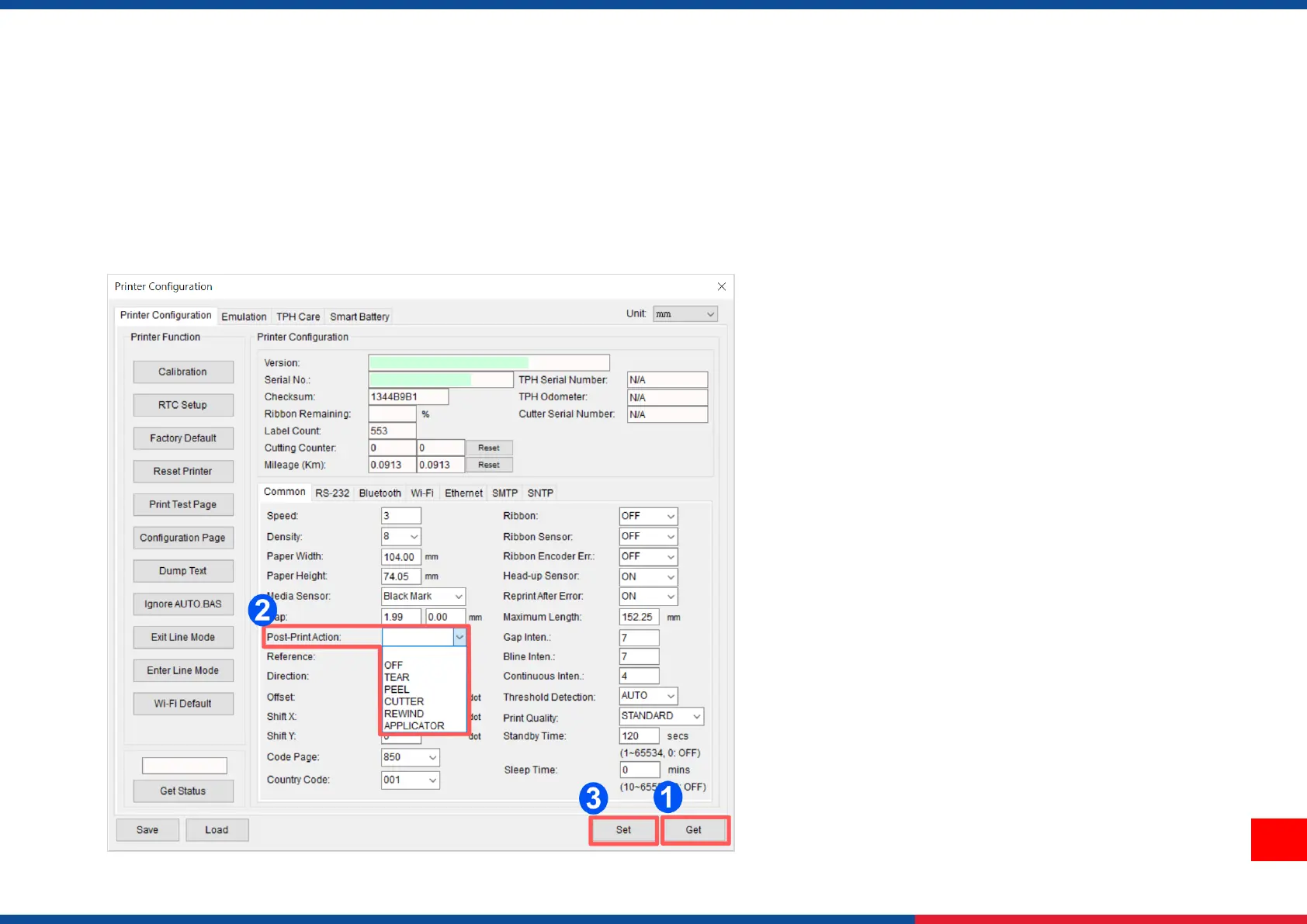

Refer Chp 5.1 to Connect the printer with TSC Console > Double click the printer > The Printer Configuration Page will pop up > Click
Get to load information > Go to Common Tab > Find Post-Print Action > Select the mode depending on users’ application > Click Set.

TSC TTP-247 Series Specifications

General

Resolution	203 dpi
Max Print Width	4.09" (104 mm)
Processor	32-bit RISC CPU
Operating Temperature	41°F to 104°F (5°C to 40°C)
Print Method	Thermal Transfer and Direct Thermal
Max Print Speed	7 ips
Memory	8 MB SDRAM
Interface	USB 2.0
Ribbon Capacity	300 meters
Media Sensor	Reflective, Transmissive
Label Width	1" (25.4 mm) ~ 4.33" (110 mm)
Label Thickness	0.0028" to 0.008" (0.07 mm to 0.2 mm)
Power Supply	100-240V AC, 50/60 Hz
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Operating Humidity	25 ~ 85% non-condensing
Maximum Print Length	39.37" (1000 mm)
