TSC TTP-247 Series User Manual

14

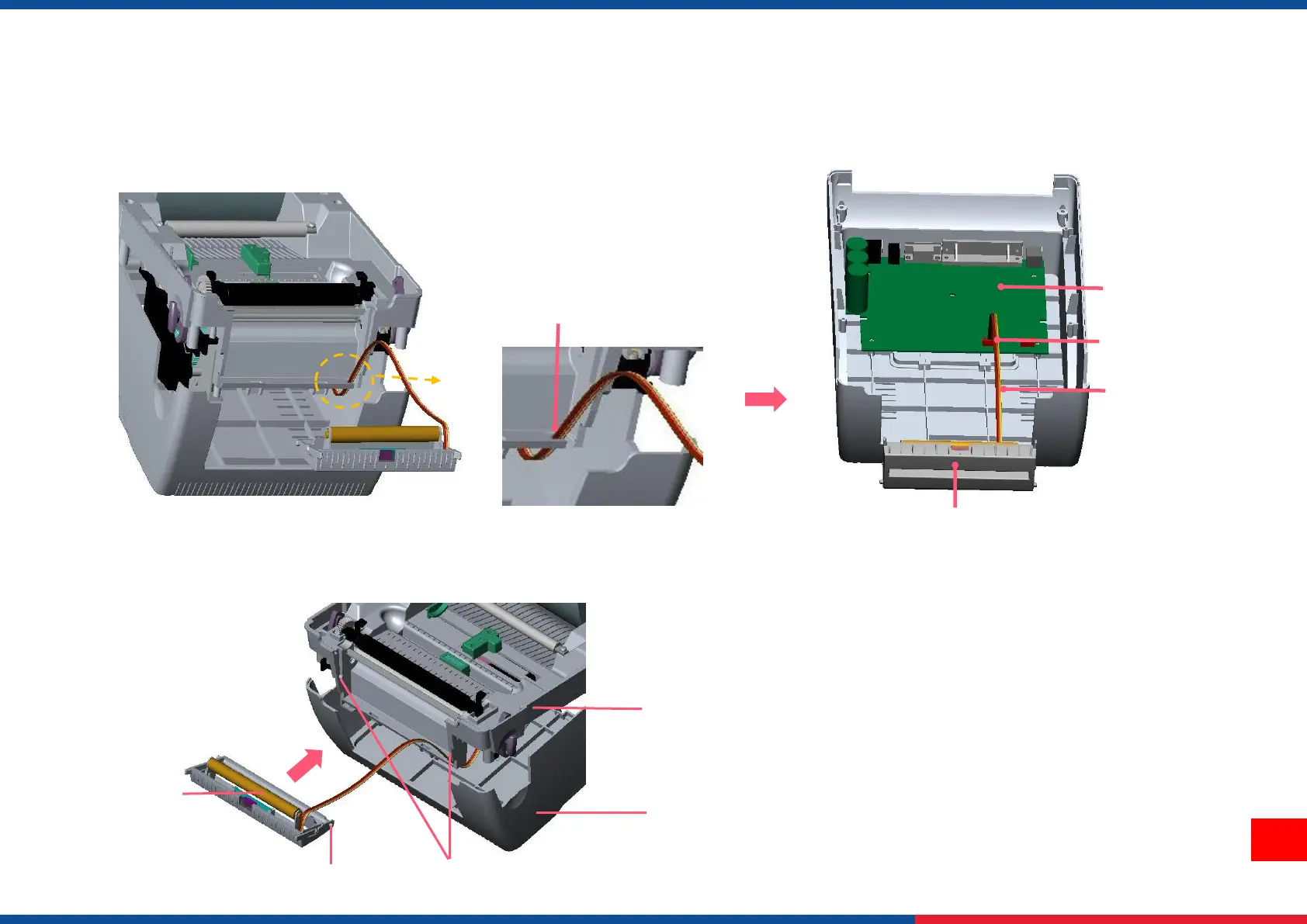

4. Upside down the printer. Remove two screws at the hinge and remove one screw at memory card cover.
5. Hold the lower cover to lift up the top cover open levers to separate the the mechanism.
6. Arrange the cable through the bezel amd Connect the peel-off panel cable to the 5-pin socket on printer PCB.
7. Insert the peel-off tenons into the lower inner cover mortises until tenons snap into places.
Roller
Tenon
Mortise
Lower Inner Cover
Lower Cover
Peel-off panel
Peel-off panel Cable
5-pin Socket
PCB
Bezel

TSC TTP-247 Series Specifications

General

Resolution	203 dpi
Max Print Width	4.09" (104 mm)
Processor	32-bit RISC CPU
Operating Temperature	41°F to 104°F (5°C to 40°C)
Print Method	Thermal Transfer and Direct Thermal
Max Print Speed	7 ips
Memory	8 MB SDRAM
Interface	USB 2.0
Ribbon Capacity	300 meters
Media Sensor	Reflective, Transmissive
Label Width	1" (25.4 mm) ~ 4.33" (110 mm)
Label Thickness	0.0028" to 0.008" (0.07 mm to 0.2 mm)
Power Supply	100-240V AC, 50/60 Hz
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Operating Humidity	25 ~ 85% non-condensing
Maximum Print Length	39.37" (1000 mm)
