TSC TTP-247 User Manual

23
3.9 Setting Ethernet by Diagnostic Utility (Option)
The Diagnostic Utility is enclosed in the CD disk \Utilities directory. Users can use
Diagnostic Tool to setup the Ethernet by RS-232, USB and Ethernet interfaces. The
following contents will instruct users how to configure the Ethernet by these three
interfaces.
3.9.1 Using USB interface to setup Ethernet interface
1. Connect the USB cable between the computer and the printer.
2. Turn on the printer power.
3. Start the Diagnostic Utility by double clicking on the icon.
Note: This utility works with printer firmware V6.00 and later versions.

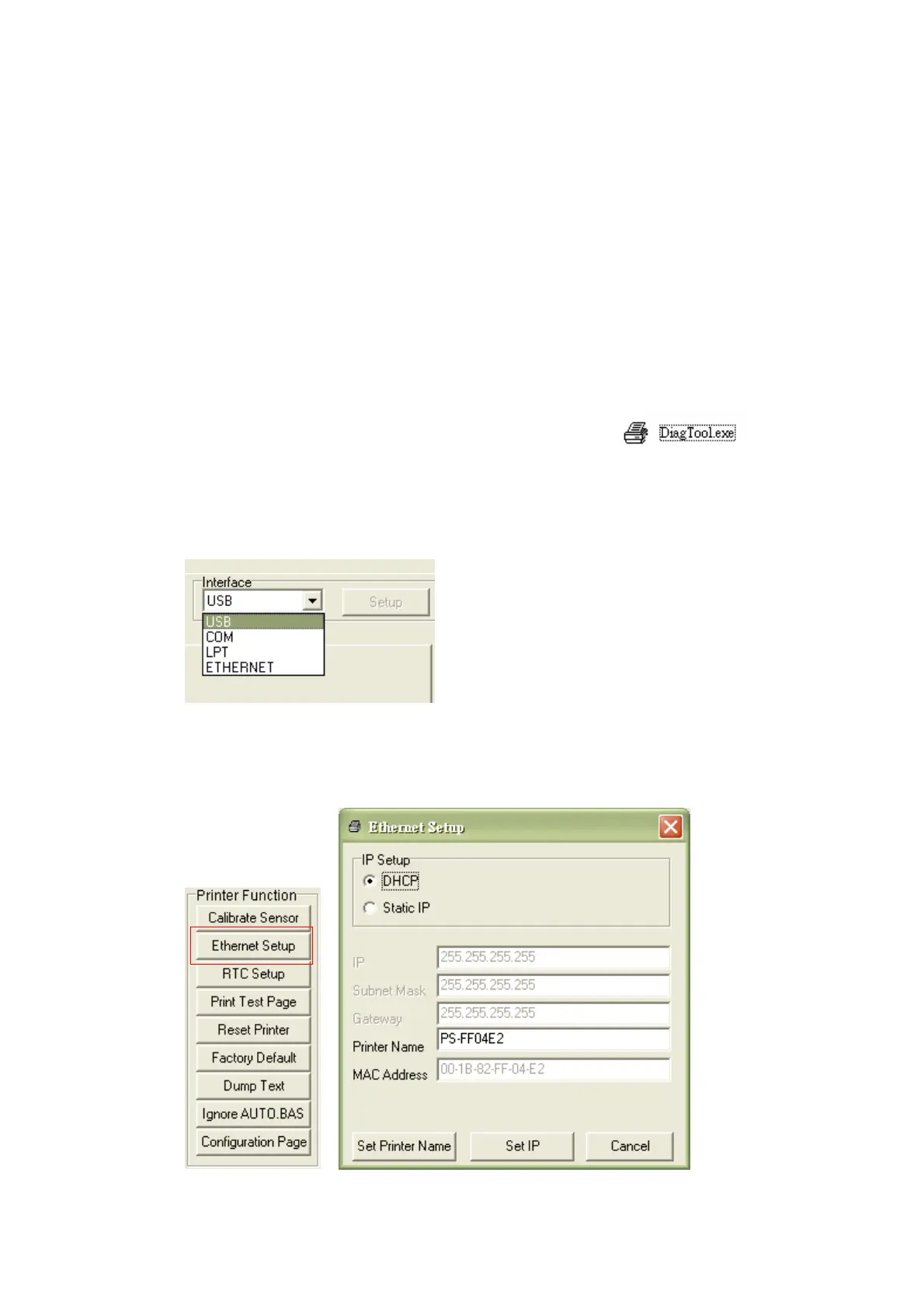

4. The Diagnostic Utility default interface setting is USB interface. If USB
interface is connected with printer, no other settings need to be changed in
the interface field.
5. Click on the “Ethernet Setup” button from “Printer Function” group in Printer
Configuration tab to setup the IP address, subnet mask and gateway for the
on board Ethernet.

TSC TTP-247 Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 dpi
Max Print Width	4.09" (104 mm)
Processor	32-bit RISC CPU
Weight	2.5 kg
Max Print Speed	7 ips
Memory	8 MB SDRAM, 4 MB Flash
Interface	USB 2.0, Serial
Ribbon Capacity	300 meters
Label Width	1" (25.4 mm) ~ 4.33" (110 mm)
Label Thickness	0.06 mm ~ 0.19 mm
Power Supply	External Universal Switching Power Supply
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Operating Humidity	25% to 85%, non-condensing
Certifications	CE, FCC, UL, CCC
