5. Adjust the paper guides to fit the paper width.
6. Close the printer top cover by lifting the top cover to the maximum opening
angle then push down the top cover gently.
Fig. 11 External roll mount label installation (II)
3.5 Peel-off Module Installation (Option)
1. Open the top cover and remove the front panel from the printer.

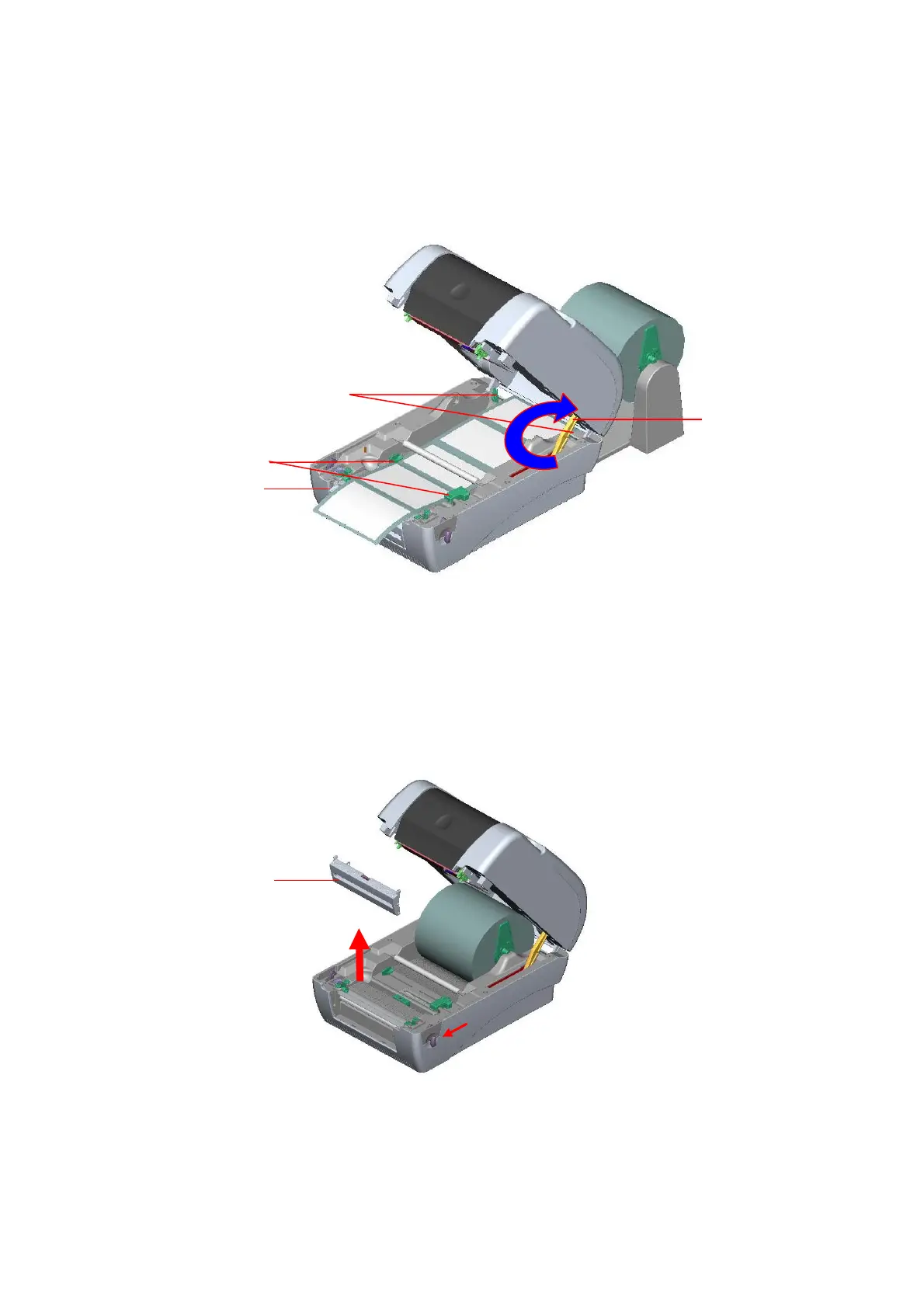

Fig. 12 Remove the front panel
2. Open the top cover and hold it and push down and push backward the top cover
support then push backward the top cover.
Paper Guide
Platen
Rear Paper Guide
Front Panel
Top Cover Support
