TSC TTP-247 User Manual

4
3. Setup
3.1 Setting Up the Printer
1. Place the printer on a flat, secure surface.
2. Make sure the power switch is off.
3. Connect the printer to the computer with the Centronics or USB cable.
4. Plug the power cord into the power supply connector at the rear of the printer,
and then plug the power cord into a properly grounded receptacle.

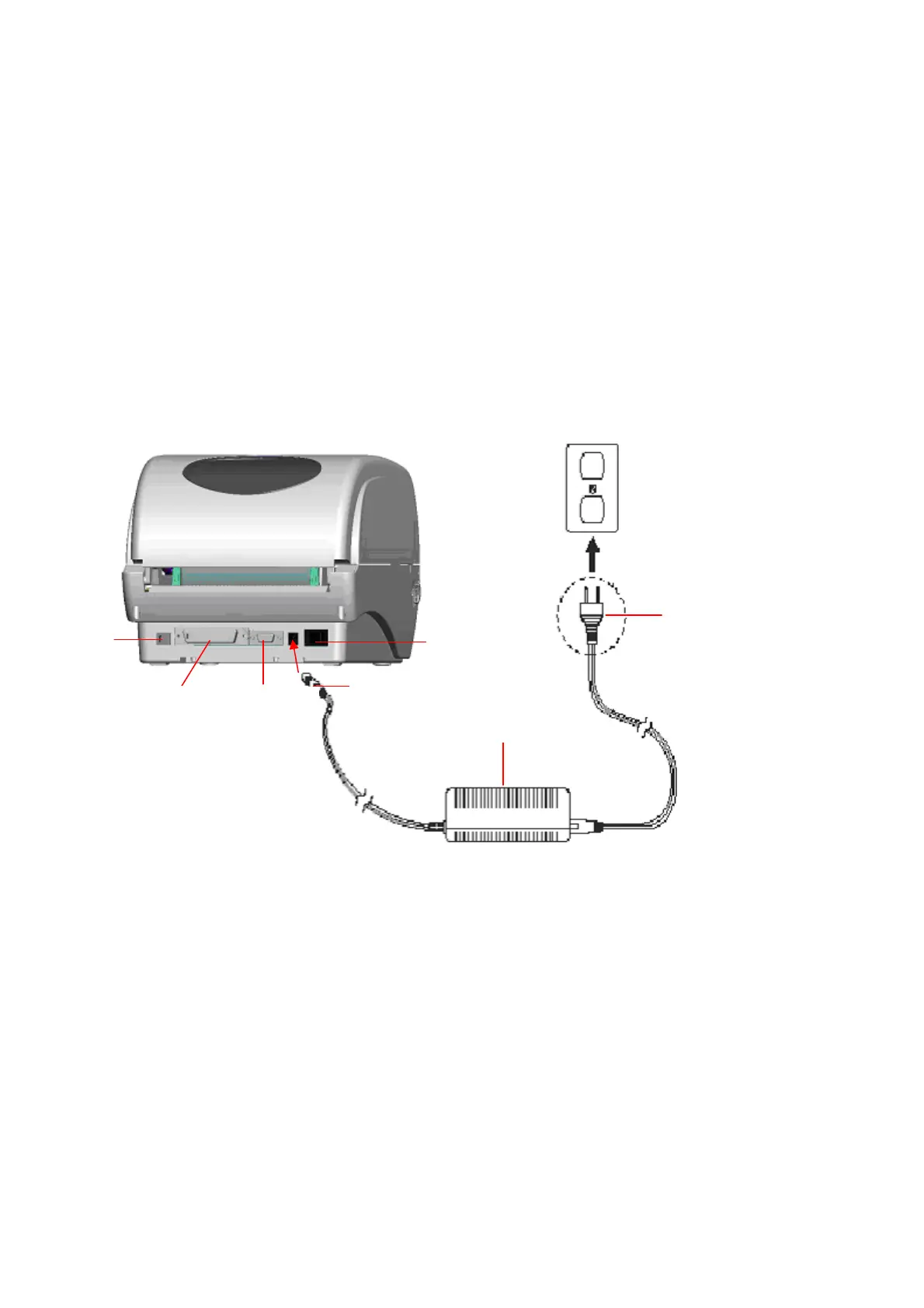

Fig. 3 Attach power supply to printer
3.2 Loading the Ribbon
The printer will detect if the ribbon is installed after turning on power on and it will
set printing mode to thermal transfer or direct thermal printing mode automatically. If
printer does not detect the ribbon, the ribbon take up motor will be turned off.
Make sure the printer top cover is engaged properly at both sides prior to powering
up the printer.
Power Supply
Plug
Power Cable
Power Switch
USB
RS-232C
Centronics

TSC TTP-247 Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 dpi
Max Print Width	4.09" (104 mm)
Processor	32-bit RISC CPU
Weight	2.5 kg
Max Print Speed	7 ips
Memory	8 MB SDRAM, 4 MB Flash
Interface	USB 2.0, Serial
Ribbon Capacity	300 meters
Label Width	1" (25.4 mm) ~ 4.33" (110 mm)
Label Thickness	0.06 mm ~ 0.19 mm
Power Supply	External Universal Switching Power Supply
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Operating Humidity	25% to 85%, non-condensing
Certifications	CE, FCC, UL, CCC
