TSC TTP-247 User Manual

8
Fig. 8 Label installation (II)
3.4 External Label Roll Mount Installation (Option)
1. Attach an external paper roll mount on the bottom of the printer.

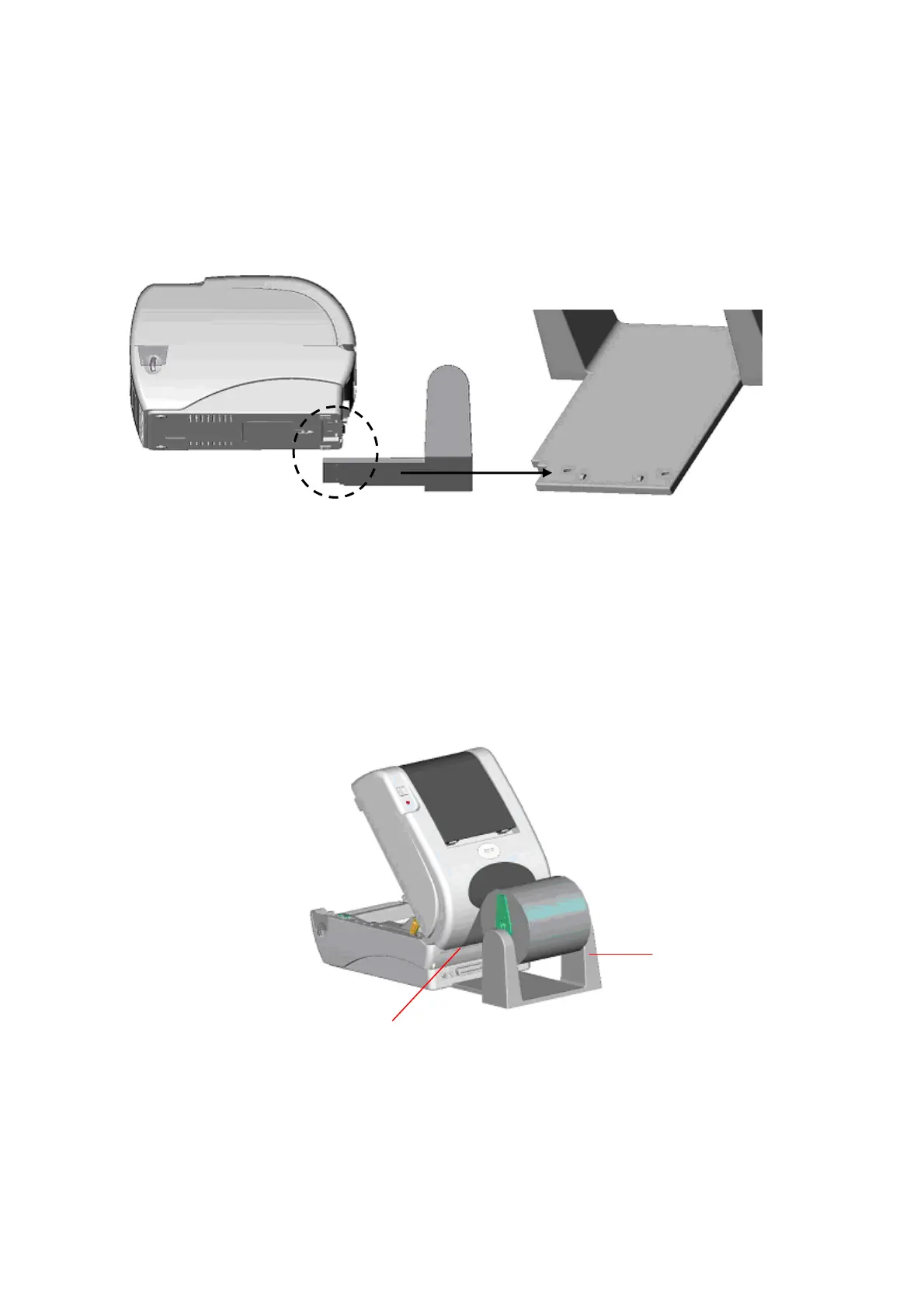

Fig. 9 Attach the external roll mount to the printer
1. Open the printer top cover by releasing the top cover open levers. The top cover
support will hold the printer top cover.
2. Install a roll of paper on the external paper roll mount.
3. Feed the paper to the external paper feed opening through the rear paper guide.
Fig. 10 External roll mount label installation (I)
4. Feed the paper, printing side face up, through the paper guide and pass over the
platen.
External Paper Feed Opening
External Paper Roll
Mount

TSC TTP-247 Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 dpi
Max Print Width	4.09" (104 mm)
Processor	32-bit RISC CPU
Weight	2.5 kg
Max Print Speed	7 ips
Memory	8 MB SDRAM, 4 MB Flash
Interface	USB 2.0, Serial
Ribbon Capacity	300 meters
Label Width	1" (25.4 mm) ~ 4.33" (110 mm)
Label Thickness	0.06 mm ~ 0.19 mm
Power Supply	External Universal Switching Power Supply
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Operating Humidity	25% to 85%, non-condensing
Certifications	CE, FCC, UL, CCC
