TSC TTP-2610MT Series User Manual

15

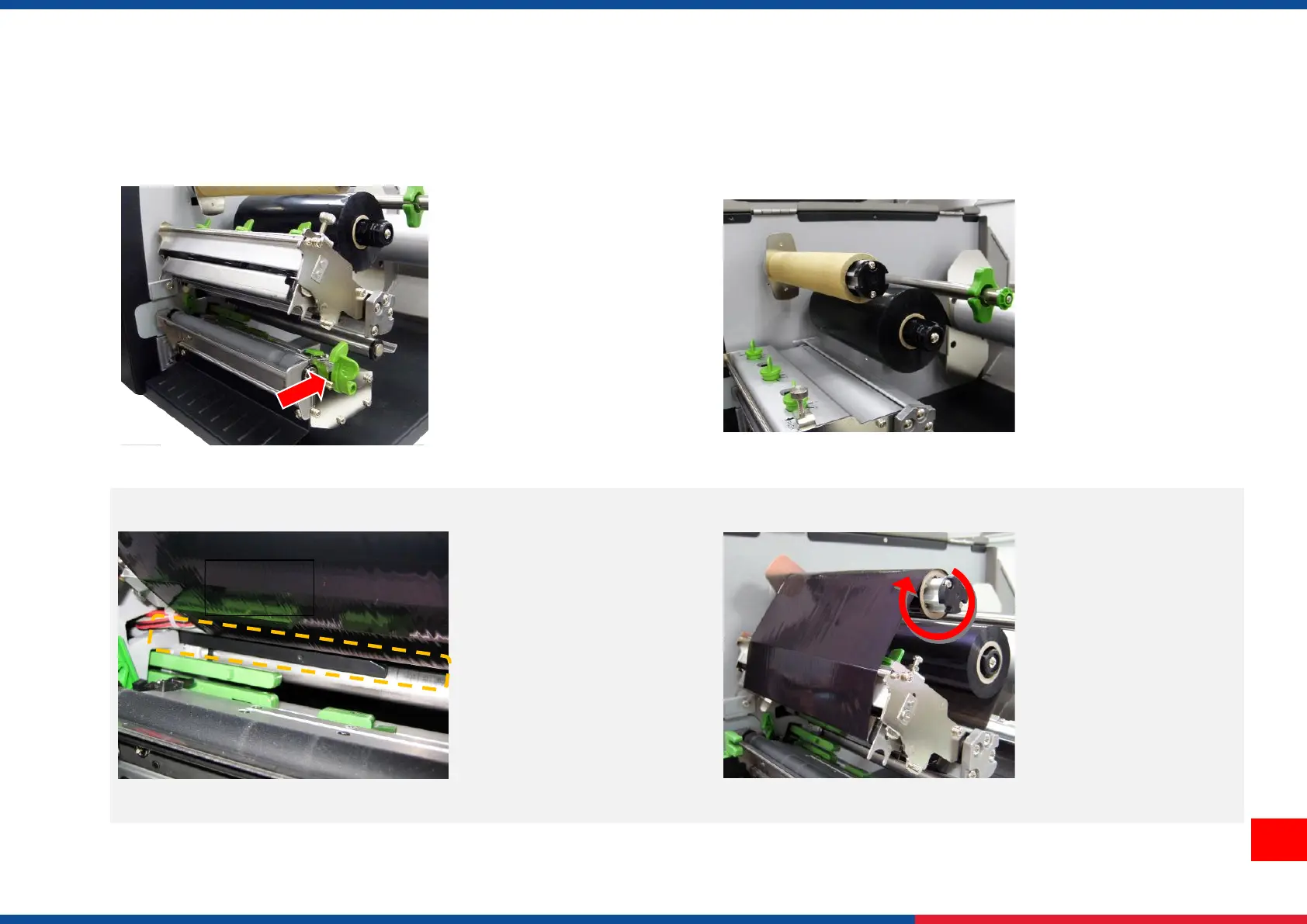

3.2 Loading the Ribbon
1. Lift the handle to open the
printer right side cover.
Push the print head
release lever to open the
print head mechanism.
2. Install the ribbon and
paper core onto the
ribbon supply spindle
and ribbon rewind
spindle.
3. Thread the ribbon through
the ribbon sensor slot and
then through the open
space in between print
head and platen.
4. Wind the ribbon
clockwise about 3~5
circles onto the ribbon
rewind spindle until it
is smooth and
properly stretched.
Ribbon
sensor
