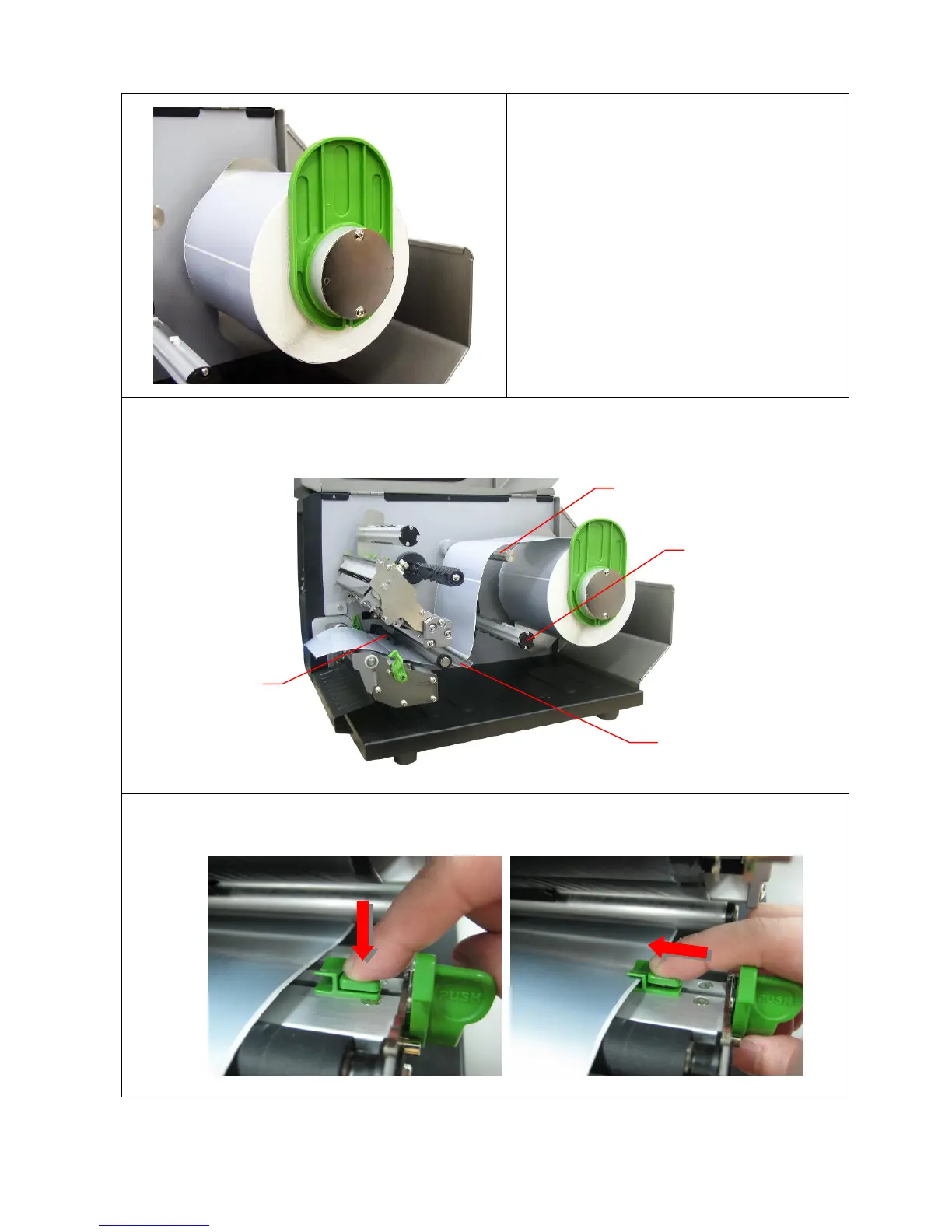

4. Place the roll of media on the label
supply spindle and push it to the end
of label spindle. Install the label roll
guard gently to fit the width of label
roll.
5. Pull label roll leading edge forward through the media guide bar, damper, media sensor
and place the label leading edge onto the platen roller.
6. Adjust the label guide to fit the width of the label.
Media guide bar
Damper
Media sensor
Internal rewind
spindle (Option)
