TSC TTP-268M User Manual

18

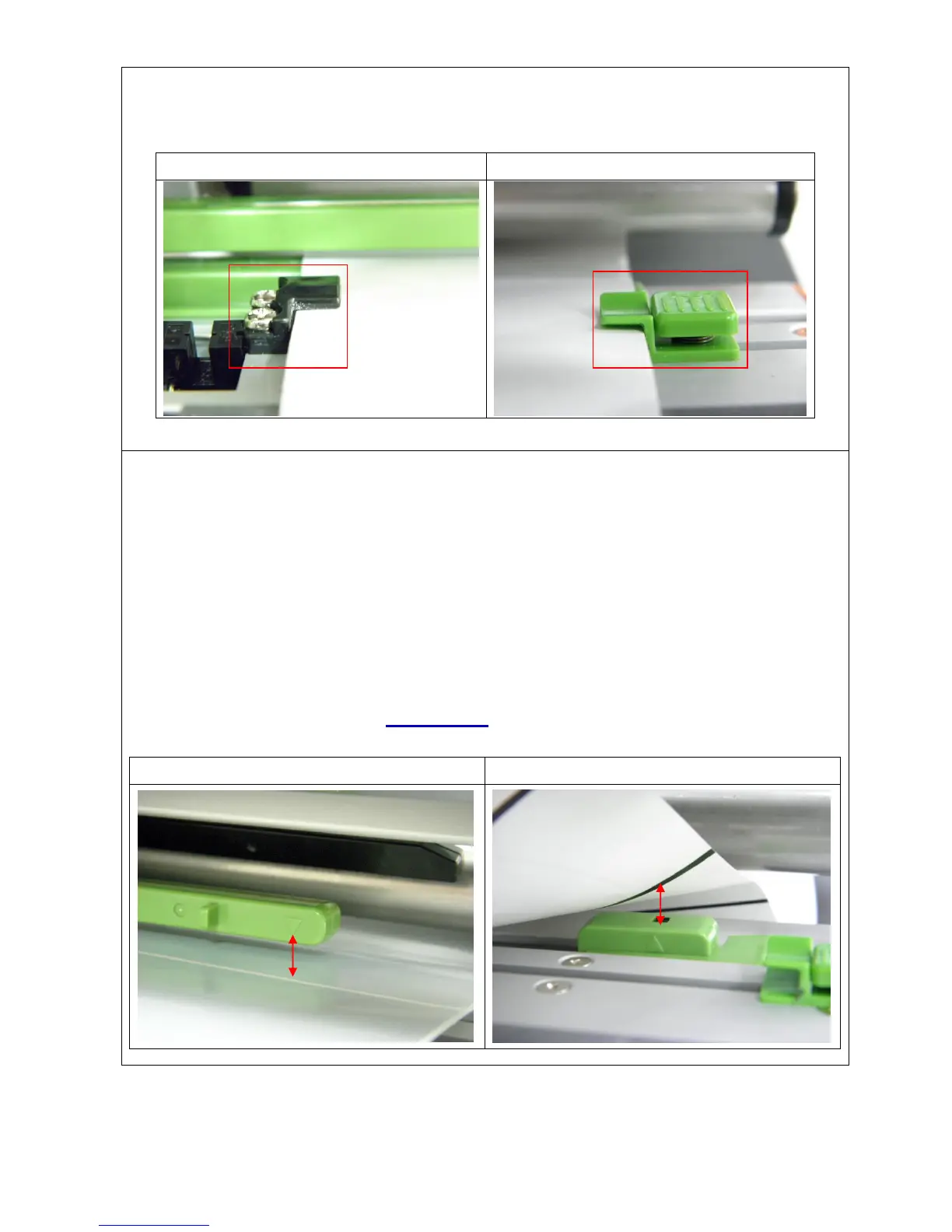

7. Making sure the label is into both label guides.
Left label guide
Right label guide (Adjustable)
8. Close the print head mechanism. Making sure the latches are engaged securely.
9. Using the front display panel to set the media sensor type and calibrate the selected
sensor. (Please refer to section 3.1.2)
Note:
 Please calibrate the gap/black mark sensor when changing media.
 The sensor location is marked by a triangle mark ▽ at the sensor housing.
 The media sensor position is moveable, please make sure the gap or black mark is at
the location where media gap/black mark will pass through for sensing.
 Please refer to videos on TSC YouTube or driver CD.
Gap media
Black mark media
