TSC TTP-345 Service Manual

23
3.2. Replacing Top Inner Cover
1. Refer 3.1 to remove the top cover.

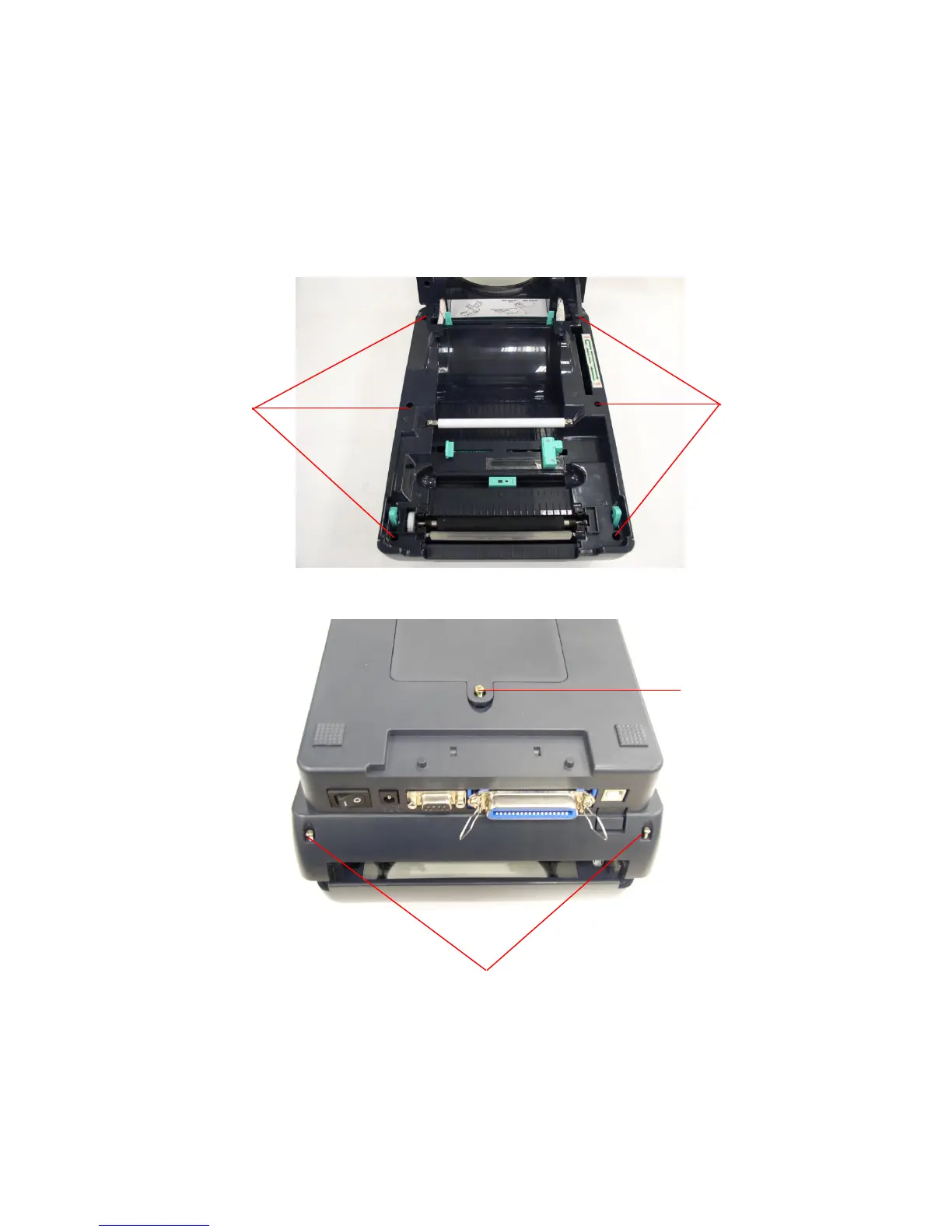

2. Remove the 6 screws of lower inner cover. Turn the printer upside down, and
remove the 2 screws of hinge holder, 1 screw of memory card cover.
3. Disconnect all the harnesses from Main Board. Lift up the lower inner cover.
Turn the lower inner cover upside down, and remove the 6 screws of lower
inner cover and hinge holders.
2 screws of hinge holder
Screw of memory
card cover
Screws
Screws

TSC TTP-345 Specifications

General

Print Method	Thermal Transfer
Resolution	300 dpi
Max Print Speed	5 ips
Max Print Length	90" (2286 mm)
Memory	8 MB Flash
Interface	USB 2.0, RS-232
Power Supply	External universal switching power supply
