7. DIAGNOSTIC TOOL
The Diagnostic Utility is a toolbox that allows users to explore the printer’s
settings and status; change printer settings; download graphics, fonts, and
firmware; create printer bitmap fonts; and to send additional commands to the
printer. Using this convenient tool, you can explore the printer status and settings
and troubleshoot the printer.
Note: This utility works with printer firmware V6.00 and later versions.
7.1 Start the Diagnostic Tool
1. Double click on the Diagnostic tool icon to start the software.

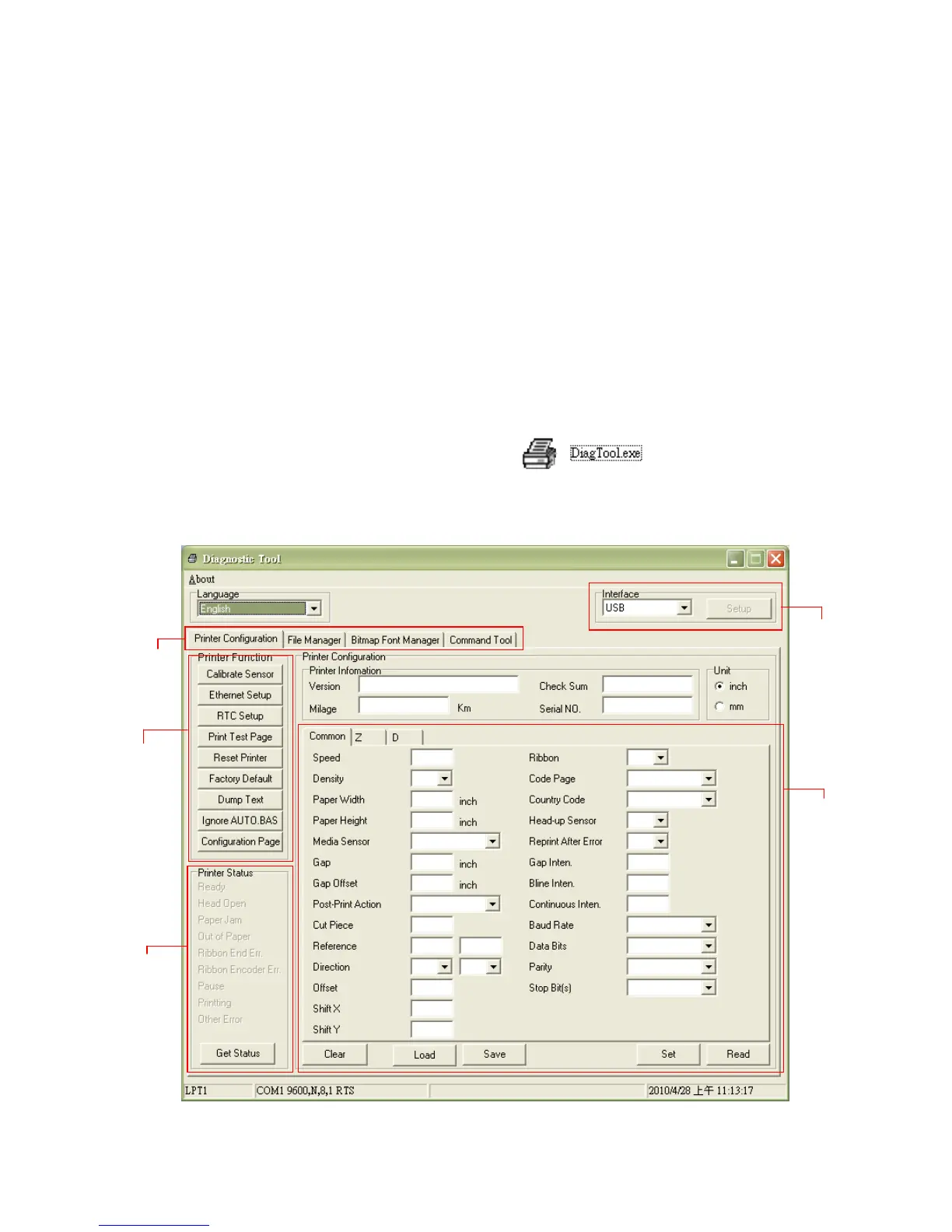

2. There are four features (Printer Configuration, File Manager, Bitmap Font
Manager, Command Tool) included in the Diagnostic utility.
Features tab
Printer function
Printer status
Interface
Printer setup

TSC TTP-345 Specifications

General

Print Method	Thermal Transfer
Resolution	300 dpi
Max Print Speed	5 ips
Max Print Length	90" (2286 mm)
Memory	8 MB Flash
Interface	USB 2.0, RS-232
Power Supply	External universal switching power supply
