TSC TTP-345 Service Manual

45
3.16. Install Cutter Module (Option)

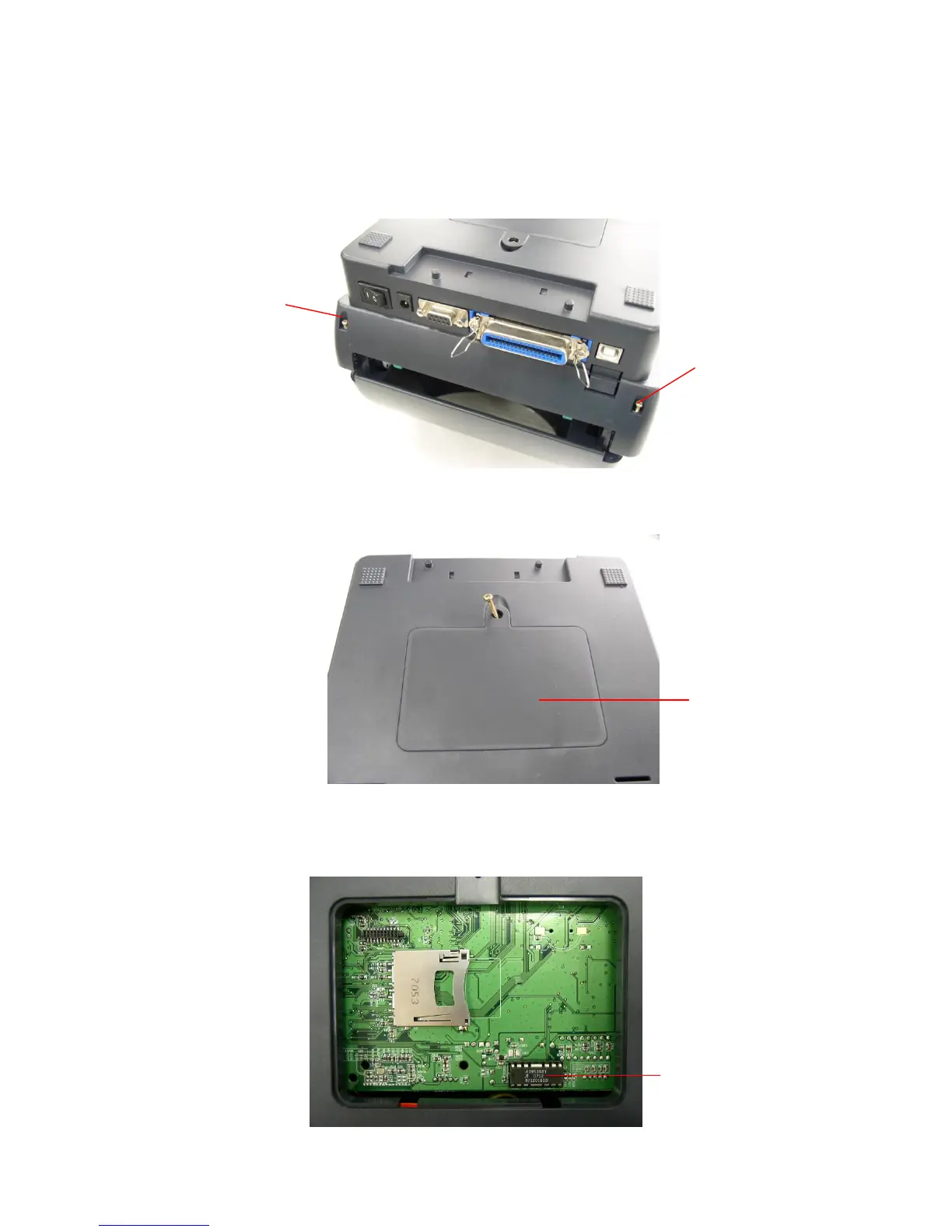

1. Upside down the printer to remove two screws of hinge holder in the lower cover.
2. Remove the screw that fixes the memory card cover.
3. Plug in the Cutter Driver IC at U30 socket on the main board.
Cutter Driver IC
Screw of hinge
holder
Screw of hinge
holder
Memory card
cover

TSC TTP-345 Specifications

General

Print Method	Thermal Transfer
Resolution	300 dpi
Max Print Speed	5 ips
Max Print Length	90" (2286 mm)
Memory	8 MB Flash
Interface	USB 2.0, RS-232
Power Supply	External universal switching power supply
