TSC TTP-345 Service Manual

46

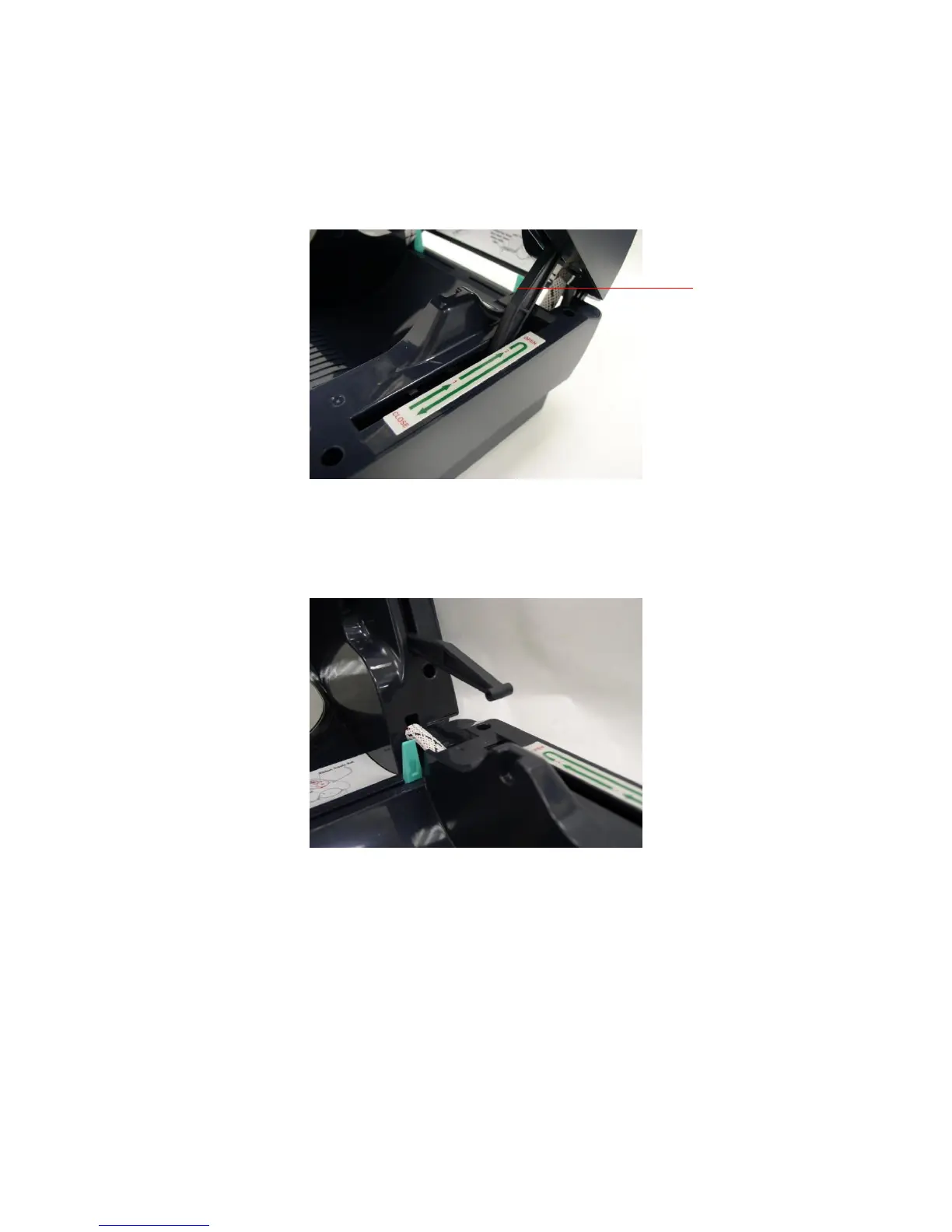

4. Open the printer top cover by pushing the top cover open levers to the paper
outlet direction. The top cover support will hold the printer top cover.
5. Open the top cover to the ultimate open angle. Push the top cover support to the
communication port direction to disconnect the lower inner cover and top cover
support.
6. Pull up the front panel from the lower cover.
Top cover
support

TSC TTP-345 Specifications

General

Print Method	Thermal Transfer
Resolution	300 dpi
Max Print Speed	5 ips
Max Print Length	90" (2286 mm)
Memory	8 MB Flash
Interface	USB 2.0, RS-232
Power Supply	External universal switching power supply
