TSC TTP-345 Service Manual

47

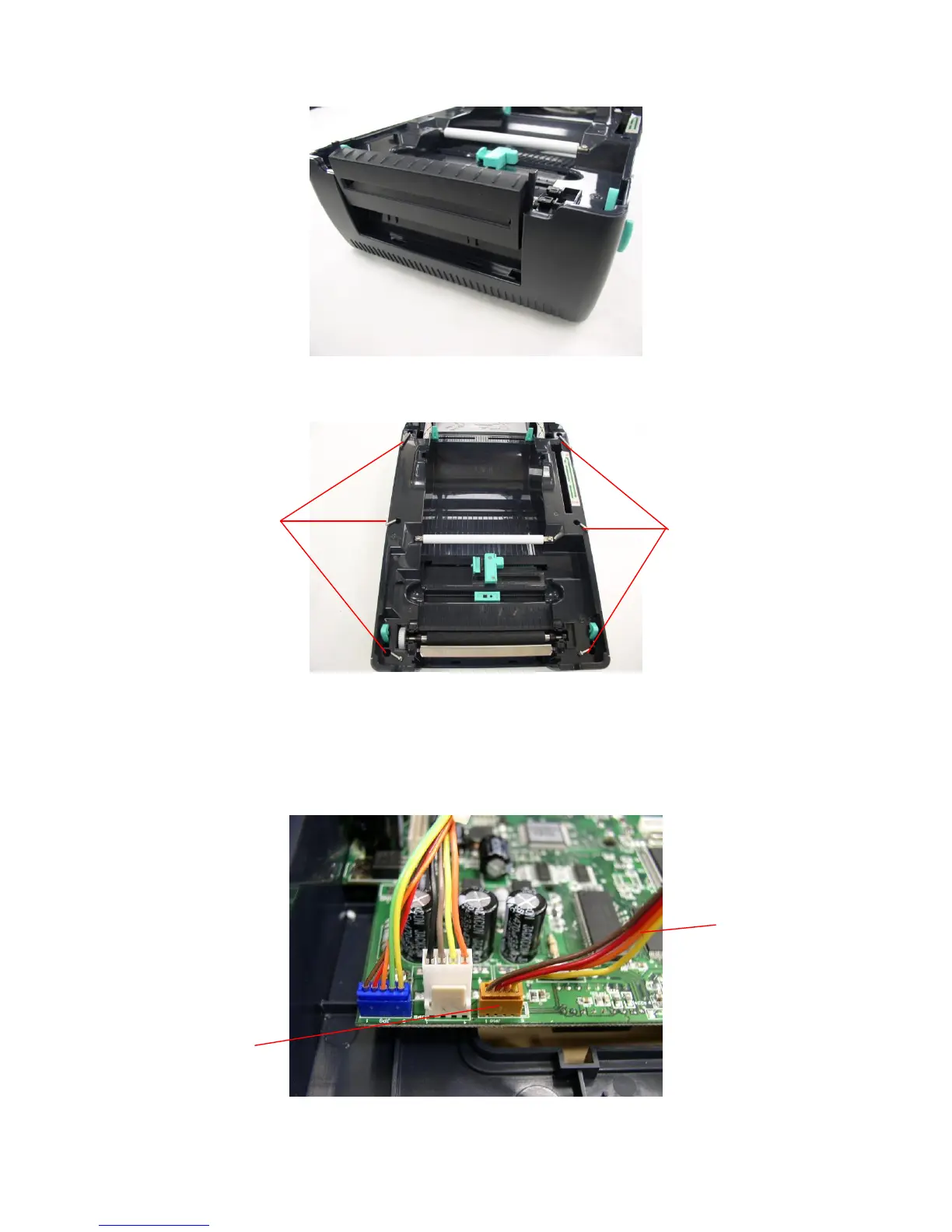

7. Remove the 6 screws in lower inner cover.
8. Lift up the lower inner cover from the Lower Cover.
9. Install the 4 pin connector of the cutter onto JP38 on the main board. Pull the wire
of the 4-pin connector through the slot of lower inner cover front side. Then, put
back the lower inner cover.
Location
JP38
Screws
Screws
Wire of the 4-pin
connector

TSC TTP-345 Specifications

General

Print Method	Thermal Transfer
Resolution	300 dpi
Max Print Speed	5 ips
Max Print Length	90" (2286 mm)
Memory	8 MB Flash
Interface	USB 2.0, RS-232
Power Supply	External universal switching power supply
