TSC TTP-345 Service Manual

48

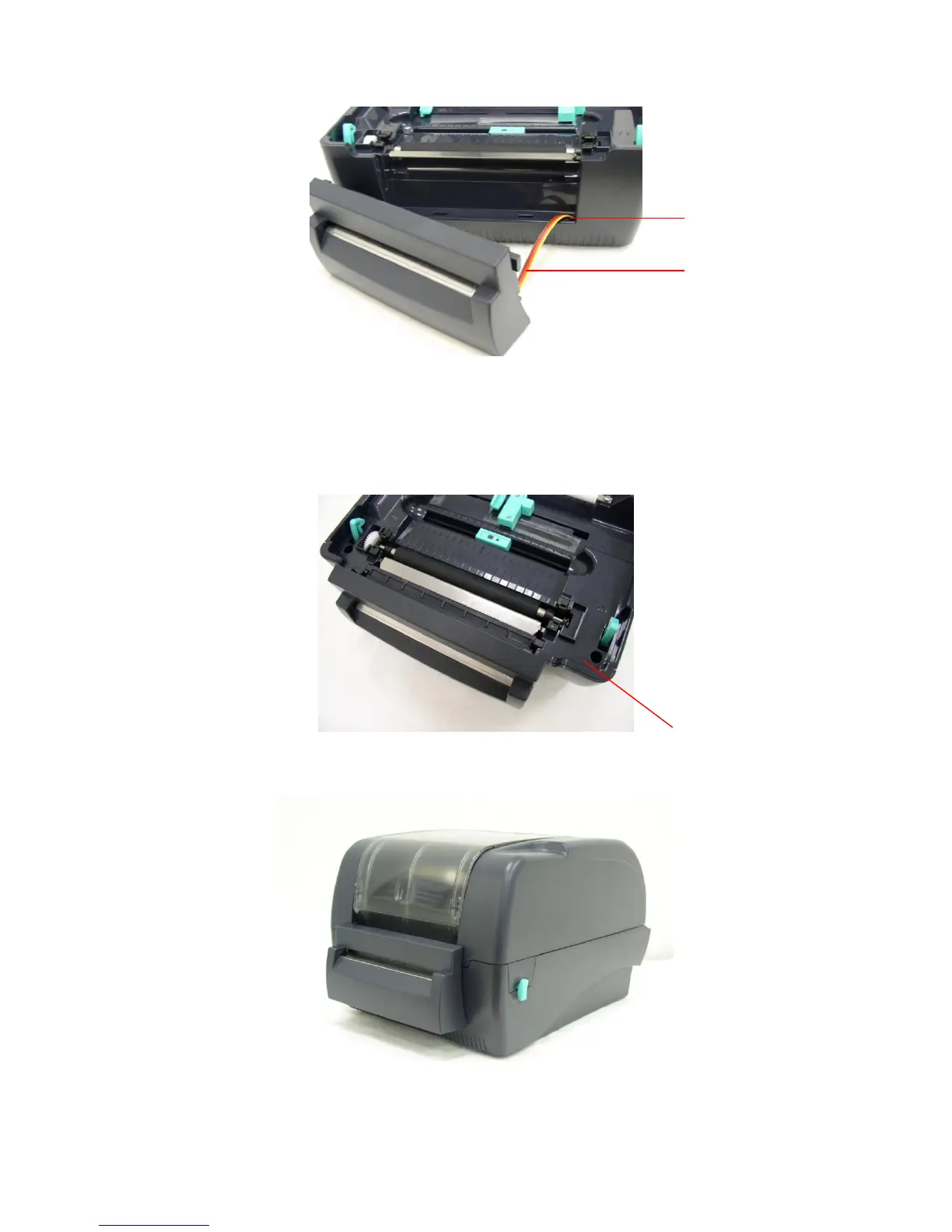

10. Gently push cutter module into the two slots of lower inner cover front side, then
push cutter to lock into the lower inner cover.
11. Assemble the memory card cover.
12. Reassemble parts in reverse procedures.
Cutter wire
Slot
Lower inner
cover

TSC TTP-345 Specifications

General

Print Method	Thermal Transfer
Resolution	300 dpi
Max Print Speed	5 ips
Max Print Length	90" (2286 mm)
Memory	8 MB Flash
Interface	USB 2.0, RS-232
Power Supply	External universal switching power supply
