5. Feed the paper, printing side facing up, through the paper guide and pass over the
platen.
6. Lead the paper through the backing paper opening, beneath the roller, and tear off
one piece of the label.
7. Adjust the paper guide by removing left or right to fit the paper width.
Lead the paper through the backing paper opening, beneath the roller
8. Push the peel-off panel back to the printer.
9. Close the top cover by lifting up the top cover support and close the top cover
slowly.
Note: Pull the label outward tightly after closing the top cover.

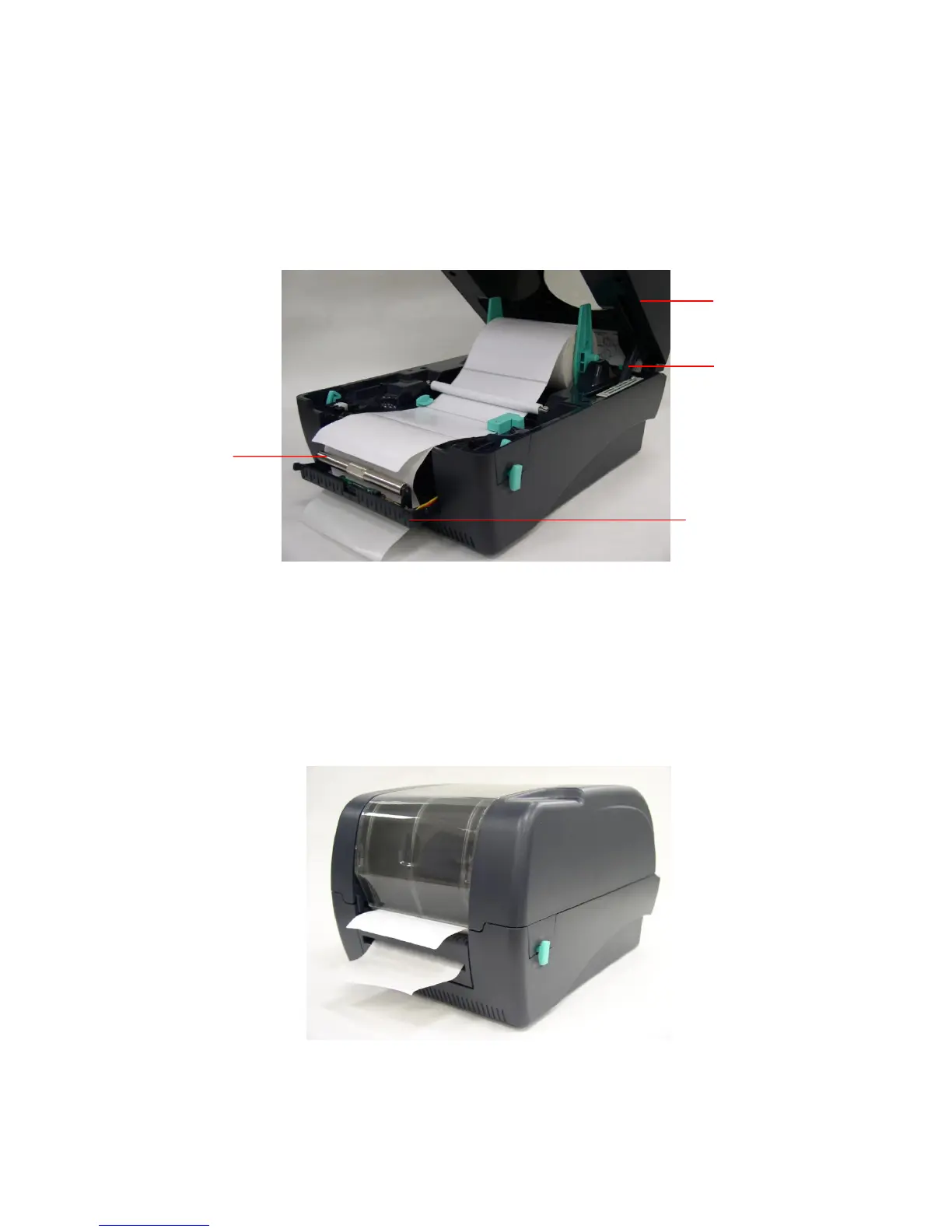

Complete label installation for peel-off mode
Roller
Top Cover
Peel-off panel
Top Cover Support

TSC TTP-345 Specifications

General

Print Method	Thermal Transfer
Resolution	300 dpi
Max Print Speed	5 ips
Max Print Length	90" (2286 mm)
Memory	8 MB Flash
Interface	USB 2.0, RS-232
Power Supply	External universal switching power supply
