TTP-2410M/346M/644M
TTP-246M Plus/344M Plus
Bar Code Printe
r
Service Manual

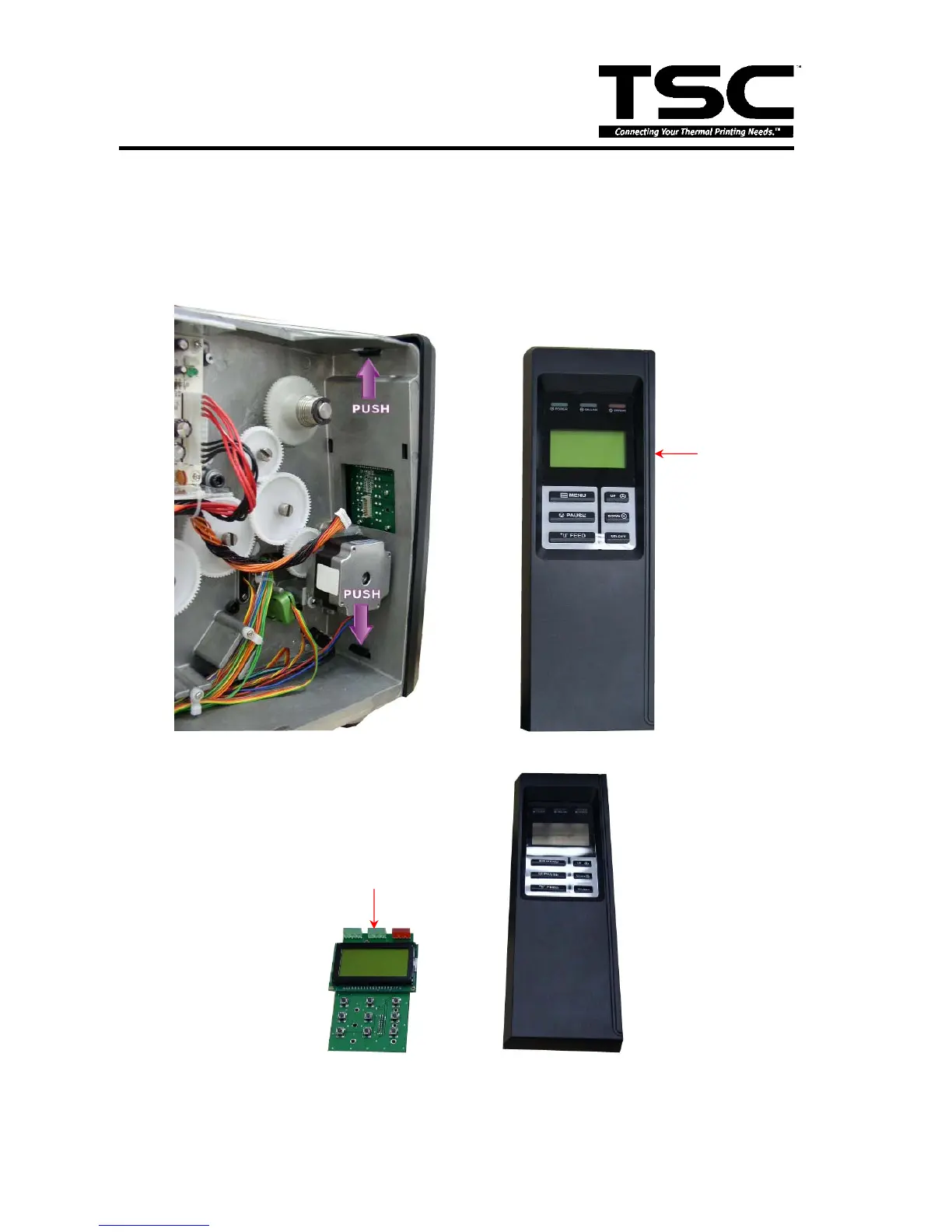

3.2 Replacing the LCD Panel Module
1. Refer to section 3.1 to remove the electronics cover.
2. Disconnect harness from the LCD panel module.
3. Push two tabs to remove/replace the LCD panel module.
4. Remove five screws to remove/replace LCD panel PCB ASS'Y and LCD panel ASS'Y.
5. Reassemble the parts in the reverse procedures.
LCD panel
module
LCD panel PCB assembly
