TTP-2410M/346M/644M
TTP-246M Plus/344M Plus
Bar Code Printe
r
Service Manual

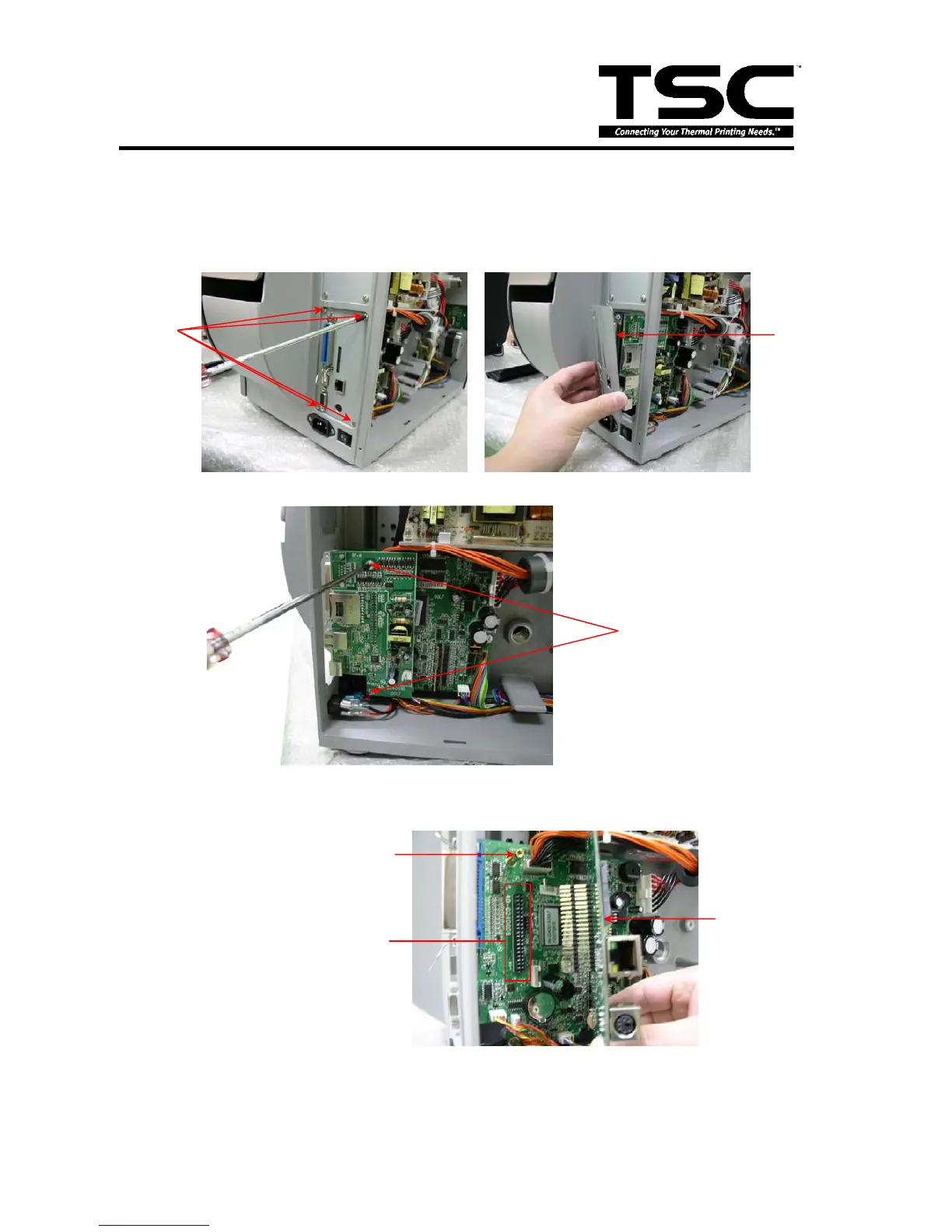

3.4 Replacing Multi-interface Board
1. Refer to section 3.1 to remove the electronics cover.
2. Remove 4 screws then take off the interface plate.
3. Remove 2 screws.
4. Replace the multi-interface board.
5. Reassemble the parts in the reverse procedures.
Screws
Connector
Screws
Interface
plate
Multi-interface
board
Copper pillar
