3.14 Internal Rewinding Kit Installation (Option)
1. Refer to section 3.1 to remove the electronics cover.
2. Fasten the screw#2 to fix the gear#1.
3. Fasten the screw#2 to fix the gear#2.

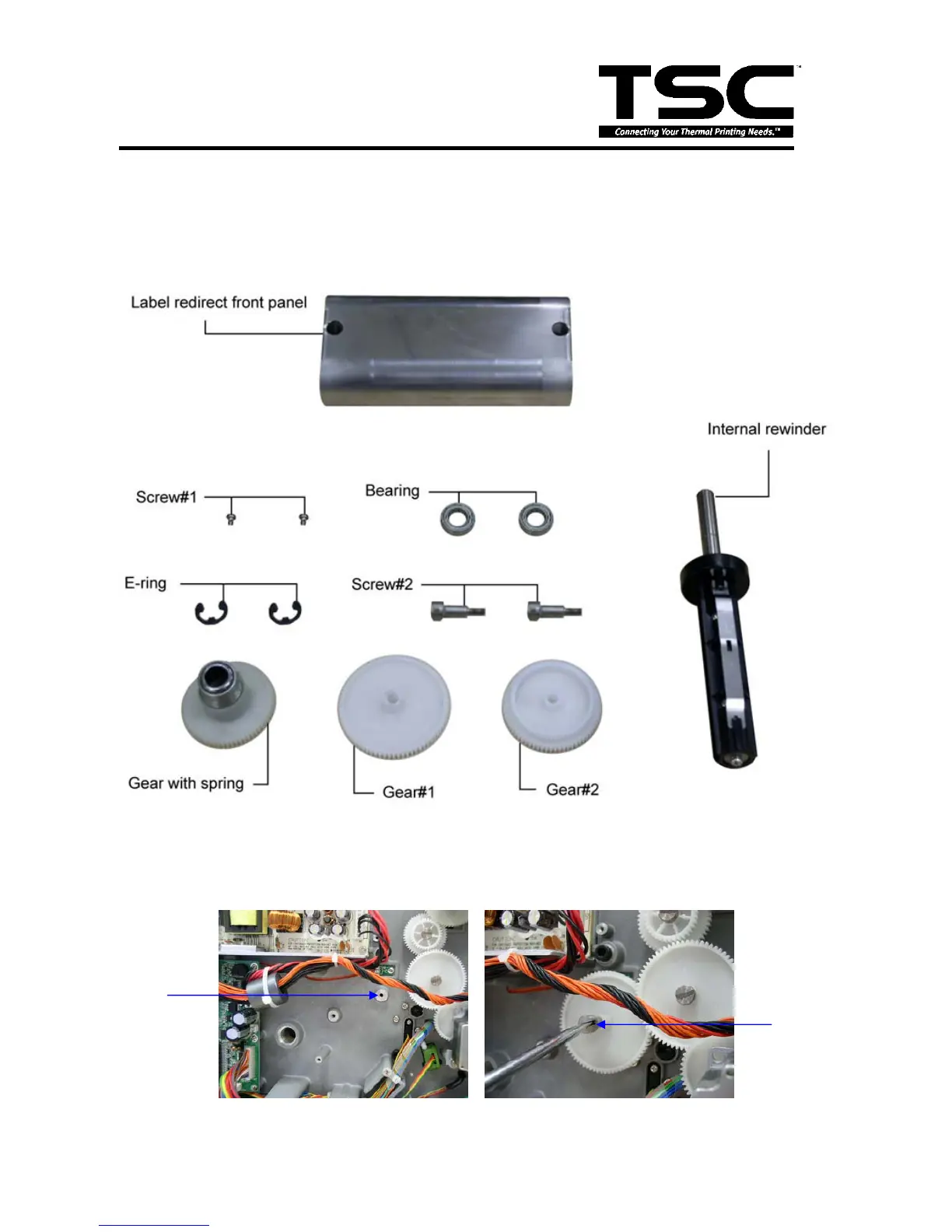

Internal rewinding kit parts list:
Gear#1
position
Screw#2
