Service Manual

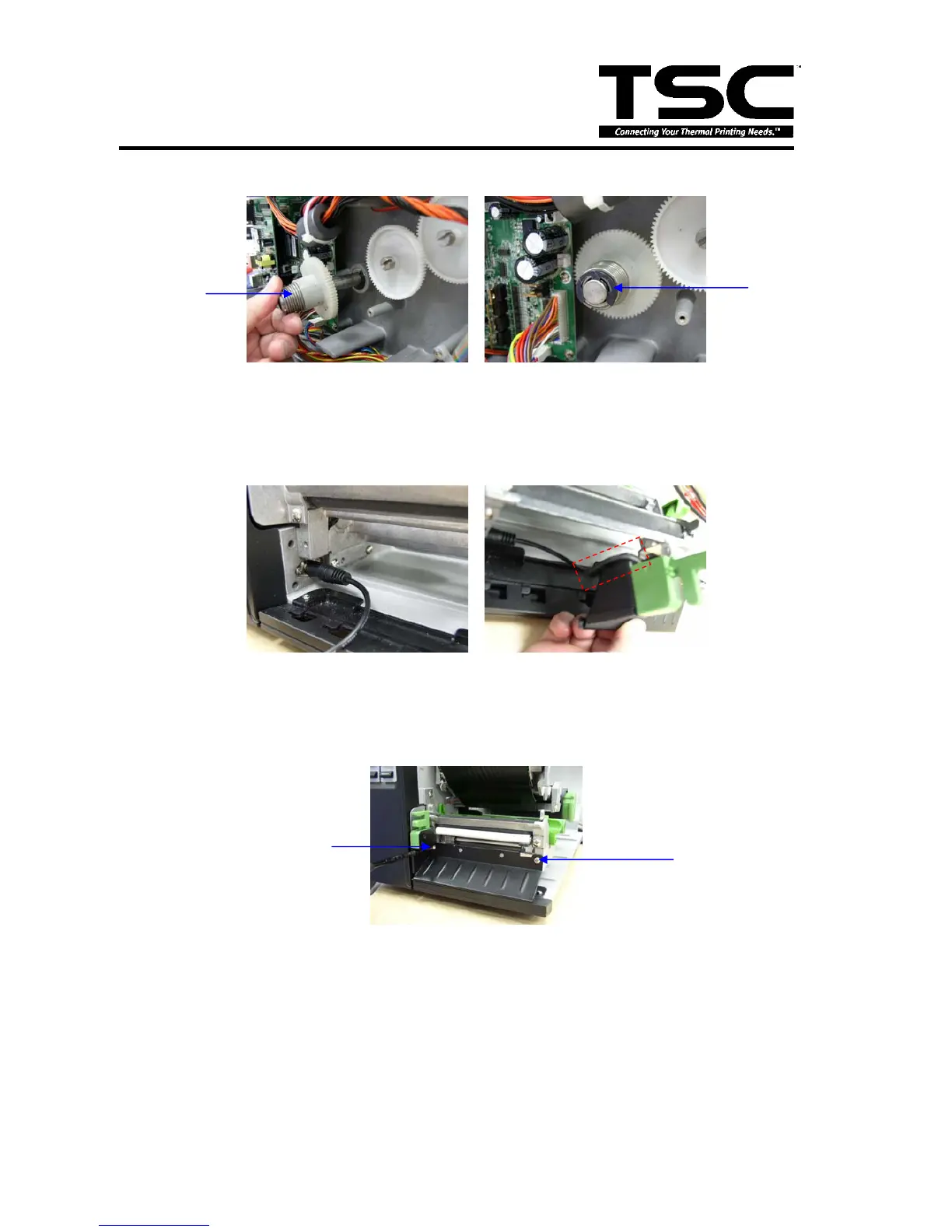

9. Insert the gear (with spring) into the spindle and fix it with E-ring.
10. Refer to section 3.1 to remove the lower front panel.
11. Plug the peel-off mini DIN cable connector into the cutter/peel-off connector and place
the cable in the cable cavity. The triangle mark on the connector must be at the upper
side.
12. Attach the peel-off module to the front of the platen roller. Align the peel-off module screw
holes to the screw holes that fix the lower front panel.
13. Fasten the 2 screws at the peel-off module to fix the peel-off module to the printer
mechanism.
Gear with
spring
E-ring
Screw
Screw
To Next Page
