TSC TTP-346M User Manual

29
29
TTP-2410M/346M/644M
TTP-246M Plus/344M Plus
Bar Code Printe
r
Service Manual

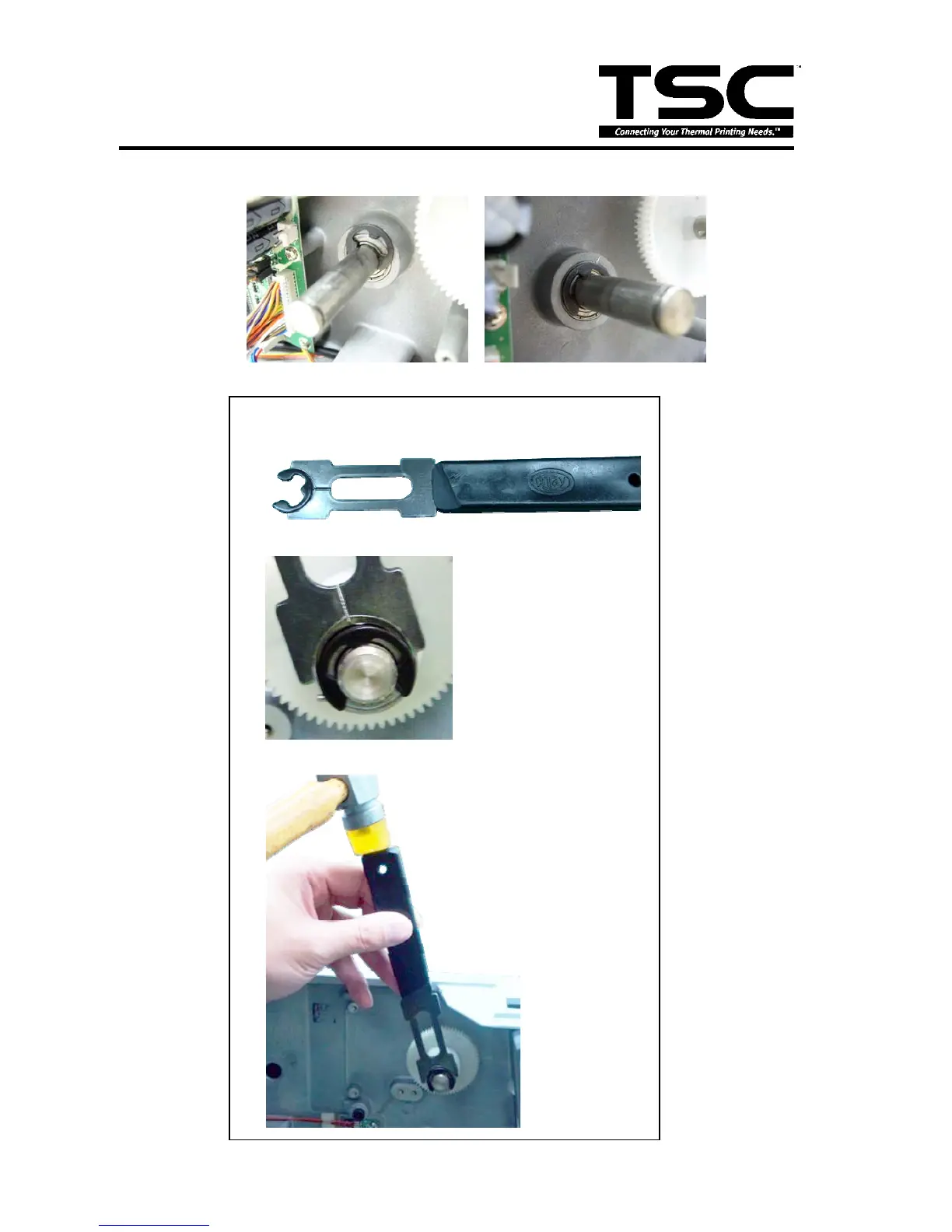

8. Use the E-ring driver and hammer to fix the internal rewind by E-ring.
*How to assemble e-ring?
a. Put E-ring into E-ring driver.
b. Put the E-ring on roller niche.
c. Use hammer to fix e-ring and roller.

TSC TTP-346M Specifications

General

Brand	TSC
Model	TTP-346M
Category	Barcode Reader
Language	English
