3.7 Replacing the Stepping Motor
1. Refer to section 3.1 to remove the electronics cover.
2. Disconnect the stepping motor connector from the main board.
3. Remove 2 screws on the stepping motor.
4. Remove/Replace the stepping motor.
5. Reassemble the parts in the reverse procedures.

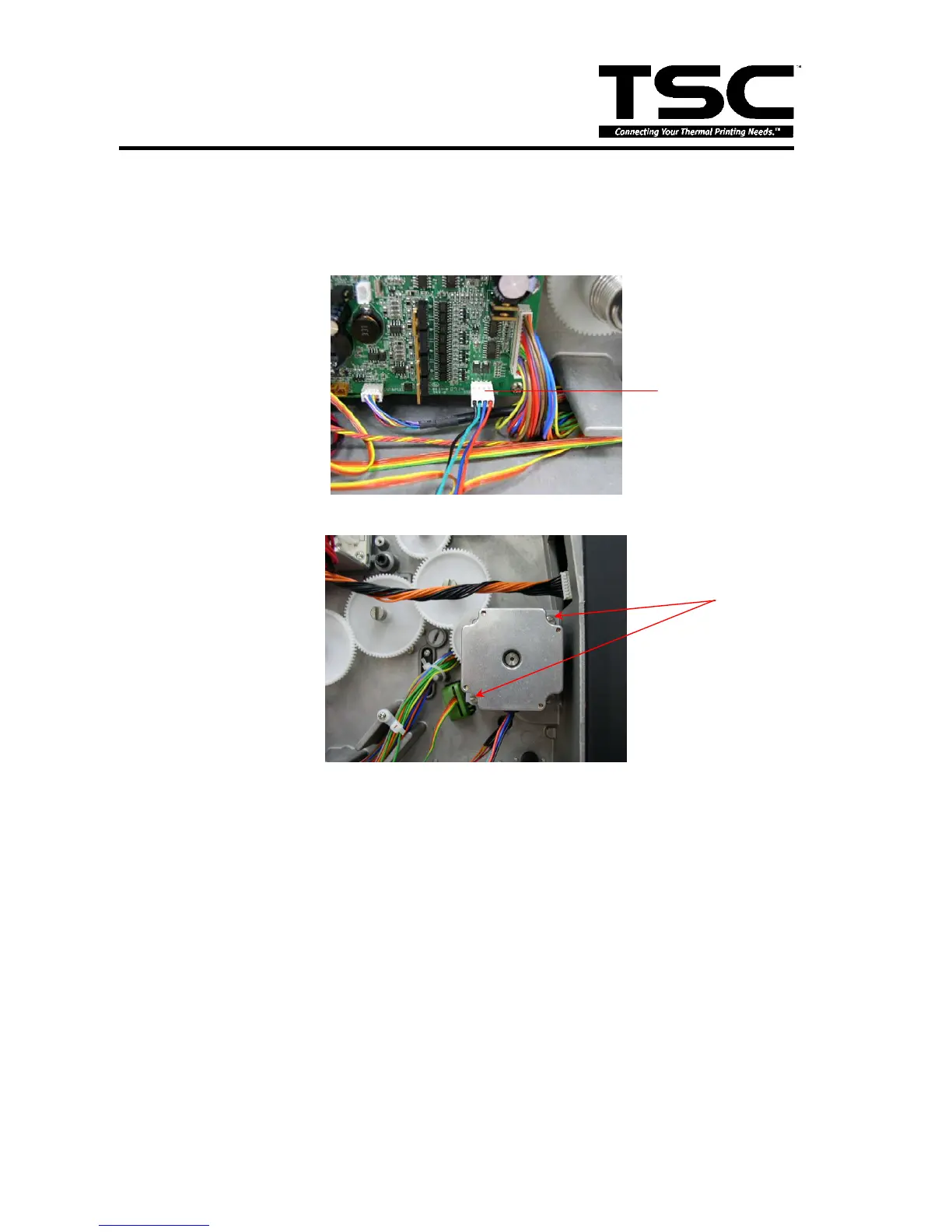

Stepping motor
connector
Screws
