6 VelociCalc
®
/VeloCalc
®
Pro Air Velocity Meter 9600 Series
Case M a gnets, Probe H o lder and W rist S t rap

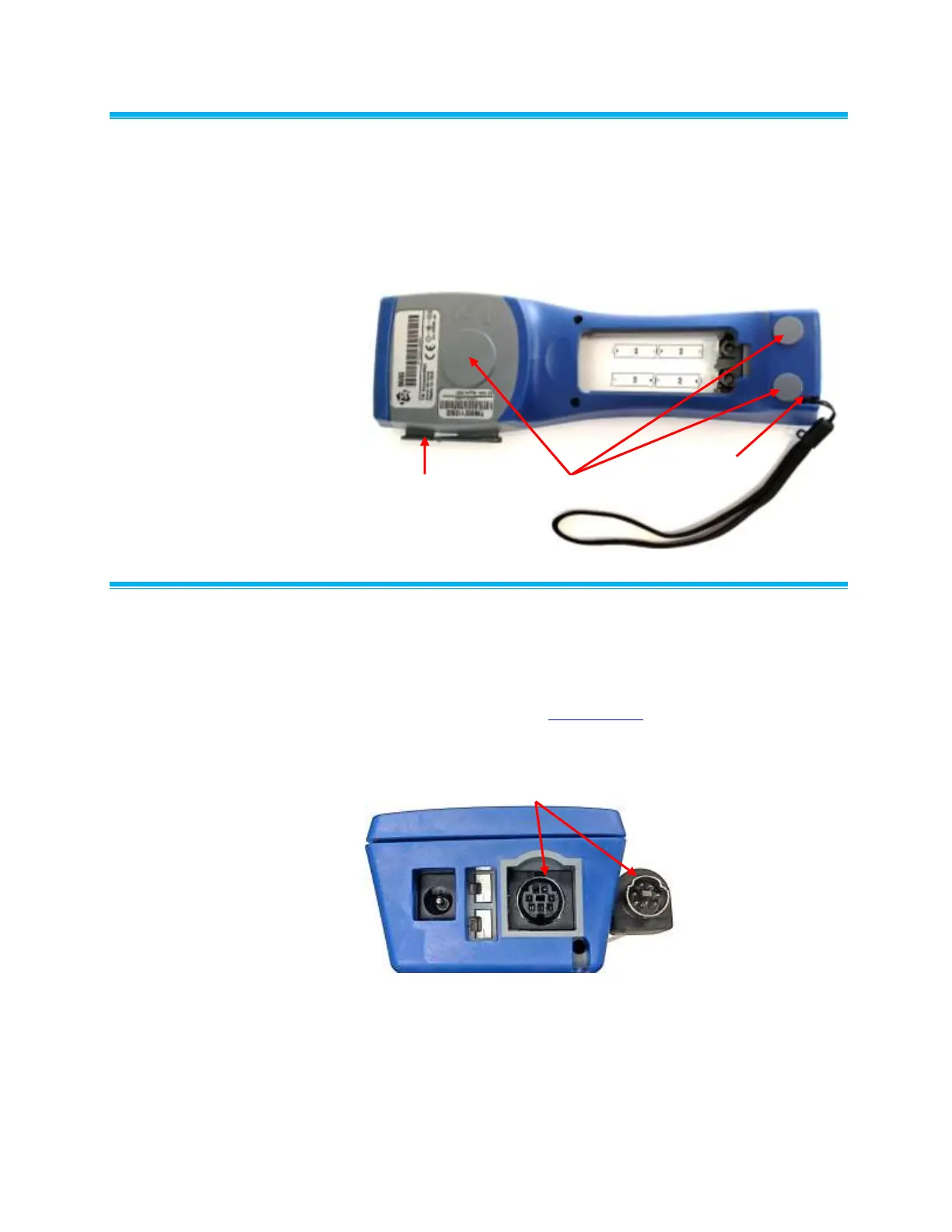

The back of the case features built-in magnets that allow for hands-
free operation. Two small magnets are near the bottom of the case
and one large magnet in the top next to the serial number label. The
instrument can be affixed to metal components such as sheet metal
ductwork or frames of fume hoods. In addition, the case design
incorporates a probe holder and wrist strap connection.
Connec ting Ventilation or I AQ Prob es
The ventilation and IAQ probes have a “D” shape overmolding on
the mini-DIN connector which must align with the connector at the
base of the 9600 series meter. This will ensure the probe is
properly connected and remains so during use. Once connected
and turned on, refer to the Display Order for displaying the
desired measurements.
“D” Shaped
mini-DIN connector
