Operation and Service Manual 9
W A R N I N G
DO NOT use the instrument or probes near hazardous voltage
sources since serious injury could result.

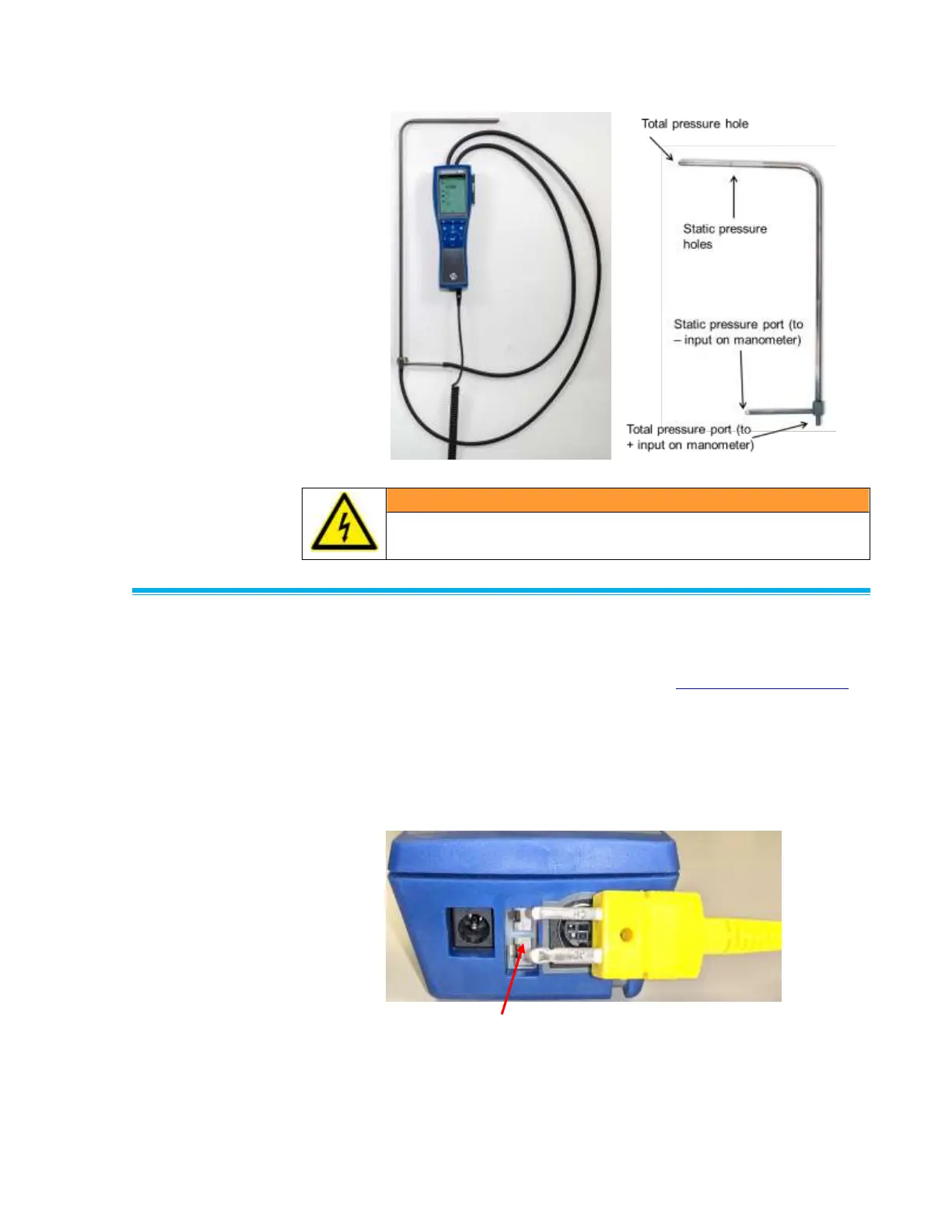

Thermo couple Port
The 9600 Series VelociCalc
®
Air Velocity Meter includes a
thermocouple port at the base of the meter. Any K-alloy thermocouple
with mini-connector can be attached. See Chapter 4, Display Order
for displaying the thermocouple measurement.
Connecting the Thermocouples
The K-alloy thermocouple with mini-connector has one terminal wider
than the other. The wider terminal will be inserted into the bottom of
the TC connector port.
