TTL Air curtain systems - control and automation panel type Touch

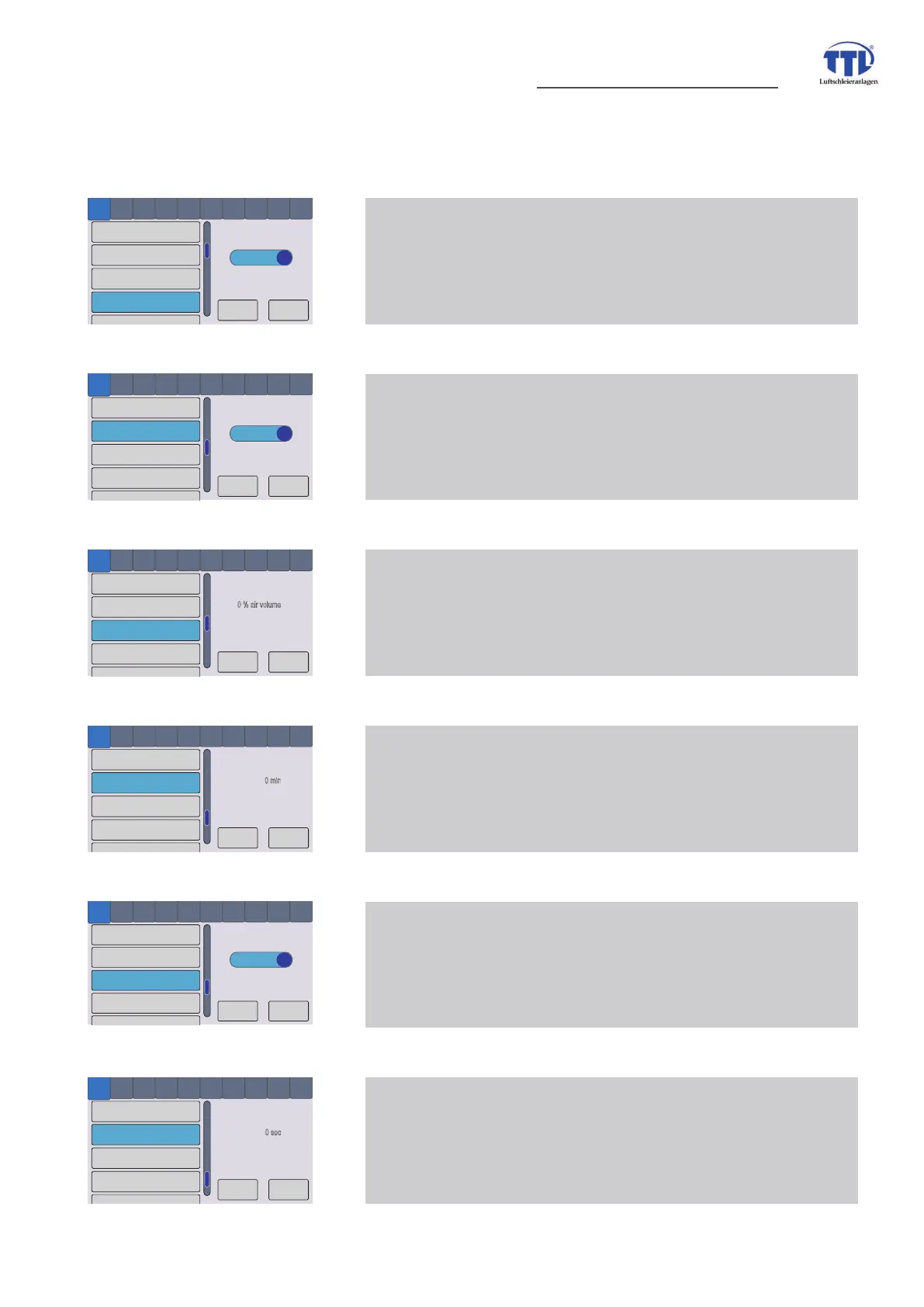

9. Displays and general operating settings (cont.)
9.2.3 Menue 3 - settings (cont.)
OK
Cancel
winter mode permission
auto start after frost alert
DDC release manual mode
ext. contact enables winter mode
intensity reheating
1 2 3 4 5 6 7 8 9 10
1
2
OFF
/settings/ext. contact enables winter mode
terminals 26-27 enables
winter mode
3 Settings menue 6 - ext. contact enables winter mode
release of terminals 26-27 at internal connecting board (PCB)
for using of an external switcher/signal for summer/winter
switchover
OK
Cancel
selenoid valve switching
winter mode permission
quick start procent
quick start time
ext. contact enables winter mode
1 2 3 4 5 6 7 8 9 10
1
2
OFF
/settings/winter mode permission
winter mode
3 Settings menue 7 - winter mode permission
switchover summer- /winter mode, summer mode will close a
perhaps contacted selenoid valve/motor mixer or a
electrothermal valve generally
OK
Cancel
selenoid valve switching
winter mode permission
quick start prozent
quick start time
ext. contact enables winter mode
1 2 3 4 5 6 7 8 9 10
1
2
0 % air volume
quick start procent
/settings/quick start procent
3 Settings menue 8 - quick start procent
setting of a basic operating level (in procent of full air power),
from which the unit starts for reaching a start as fast
as possible, useful for short time opeartion by door contact
3 Settings menue 9 - quick start time
 SUHVHWWLQJRIWLPHIRUDXWRPDWLFDOO\ÀQLVKLQJRITXLFNVWDUW
mode
OK
Cancel
auto signal inverting
quick start time
selenoid valve switching
auto signal delay
quick start prozent
1 2 3 4 5 6 7 8 9 10
1
2
0 min
quick start time = 0
quick start inactive
/settings/quick start time
OK
Cancel
filter change schedule
automatic contact delay
automatic contact inverting
operation message setting
selenoid valve switching
1 2 3 4 5 6 7 8 9 10
1
2
0 sec
automatic contact
delay
/settings/automatic contact delay
3 Settings menue 11 - auto signal delay
setting of a time delay for switching by automatic contact
(door contact)
3 Settings menue 10 - selenoid valve switching
a contacted room thermostate can additional to switching of
fans also switch a contacted selenoid valve or electrothermal
valve (accessories) (HEATING mode)
OK
Cancel
automatic contact inverting
quick start time
selenoid valve switching
automatic contact delay
quick start procent
1 2 3 4 5 6 7 8 9 10
1
2
OFF
/settings/selenoid valve switching
selenoid valve switched
by room thermostate
