Tuttnauer 2340EA-D - Front View 2340 Ea-D, Eka-D, 2840 Ea-D, Eka-D

Page 13

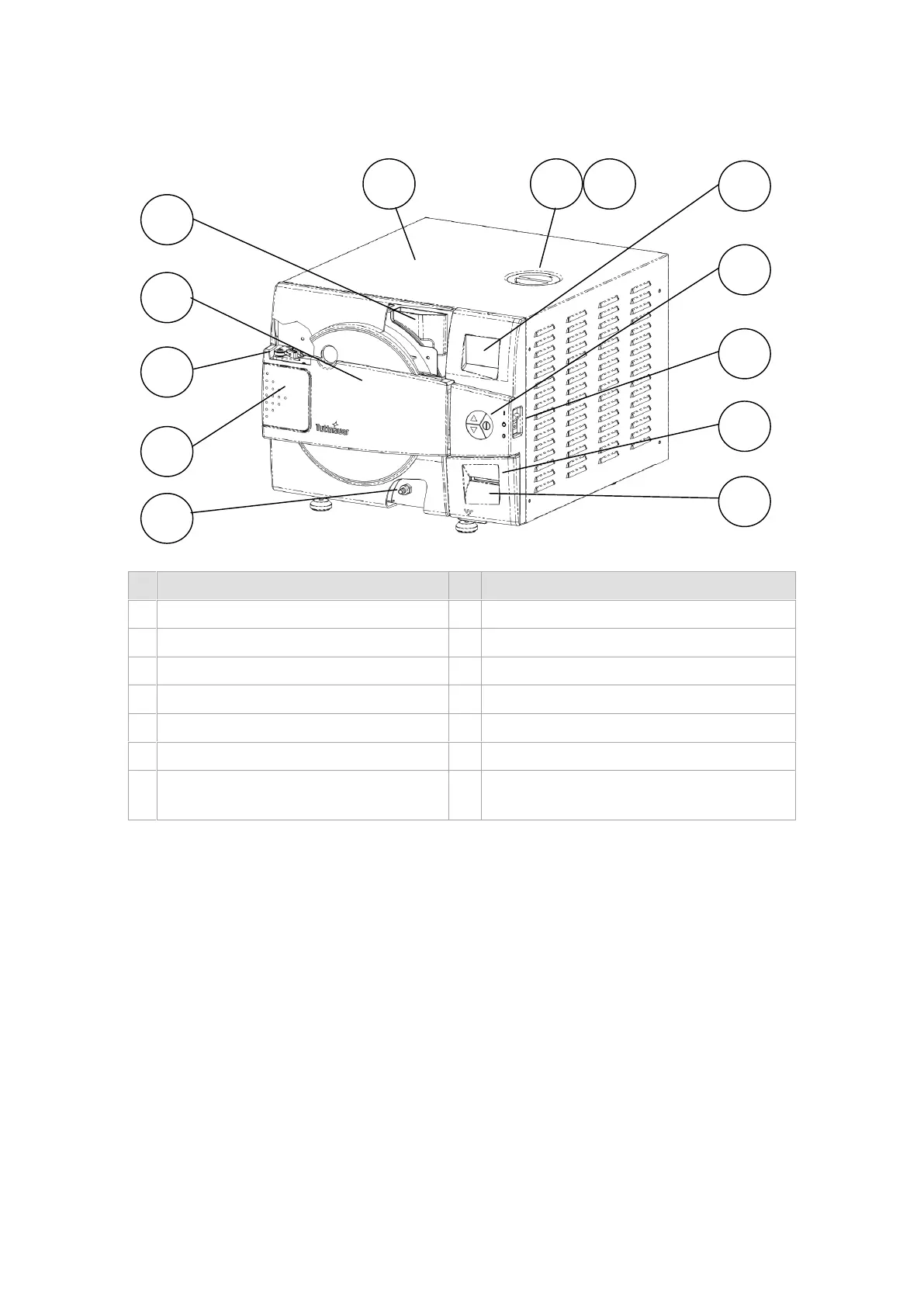

3.14. FRONT VIEW 2340EA-D, EKA-D, 2840EA-D, EKA-D
No.
Description
No.
Description
1
Drain
8
Safety valve
2
Door opening grip
9
Display
3
Door micro-switch
10
Keypad
4
Door cover
11
Autoclave power switch
5
Water filling funnel
12
Printer cover
6
Autoclave cover
13
Printer (option)
7
Mineral-free water reservoir
cover
5
4
3
7
8
11
9
10
13
12
6
2
1
