Tuttnauer 2340EA-D - Rear View 2340 Ea-D, Eka-D, 2840 Ea-D, Eka-D; Rear View 3850 Ea-D, 3870 Ea-D

Page 15

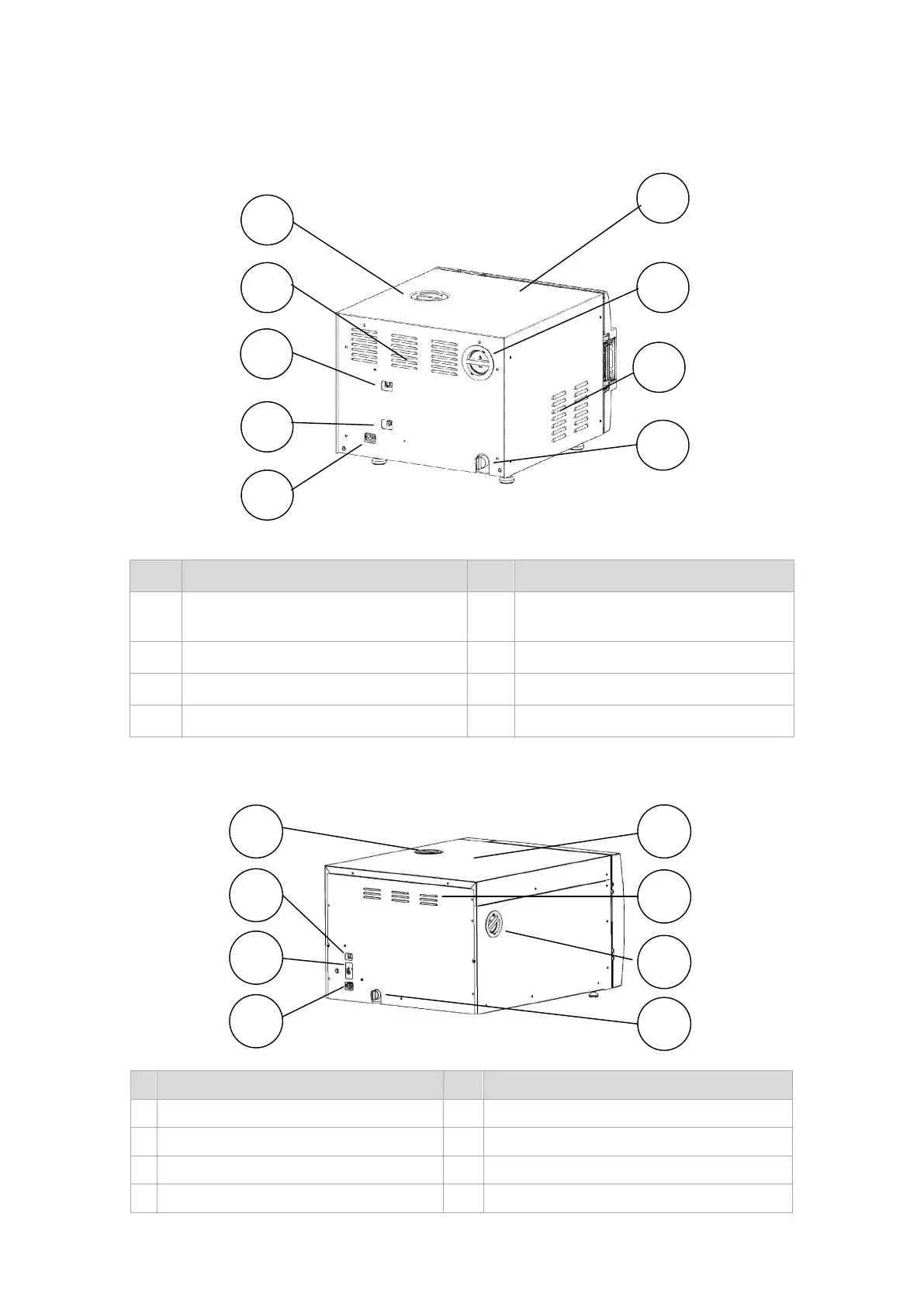

3.16. REAR VIEW 2340EA-D, EKA-D, 2840EA-D, EKA-D
No.
Description
No.
Description
1
Main power electric cable
socket
5
Mineral-free water reservoir
cover
2
Cut-off switch
6
Autoclave cover
3
Network port
7
Air filter cover
4
Ventilation grills
8
Water strainer
3.17. REAR VIEW 3850EA-D, 3870EA-D
No.
Description
No.
Description
1
Main power electric cable socket
5
Autoclave cover
2
Circuit breaker
6
Ventilation grills
3
RJ45 Network port
7
Air filter cover
4
Mineral-free water reservoir cover
8
Water outlet strainer
