Tuttnauer 2340EA-D - Front View 3850 Ea-D, 3870 Ea-D

Page 14

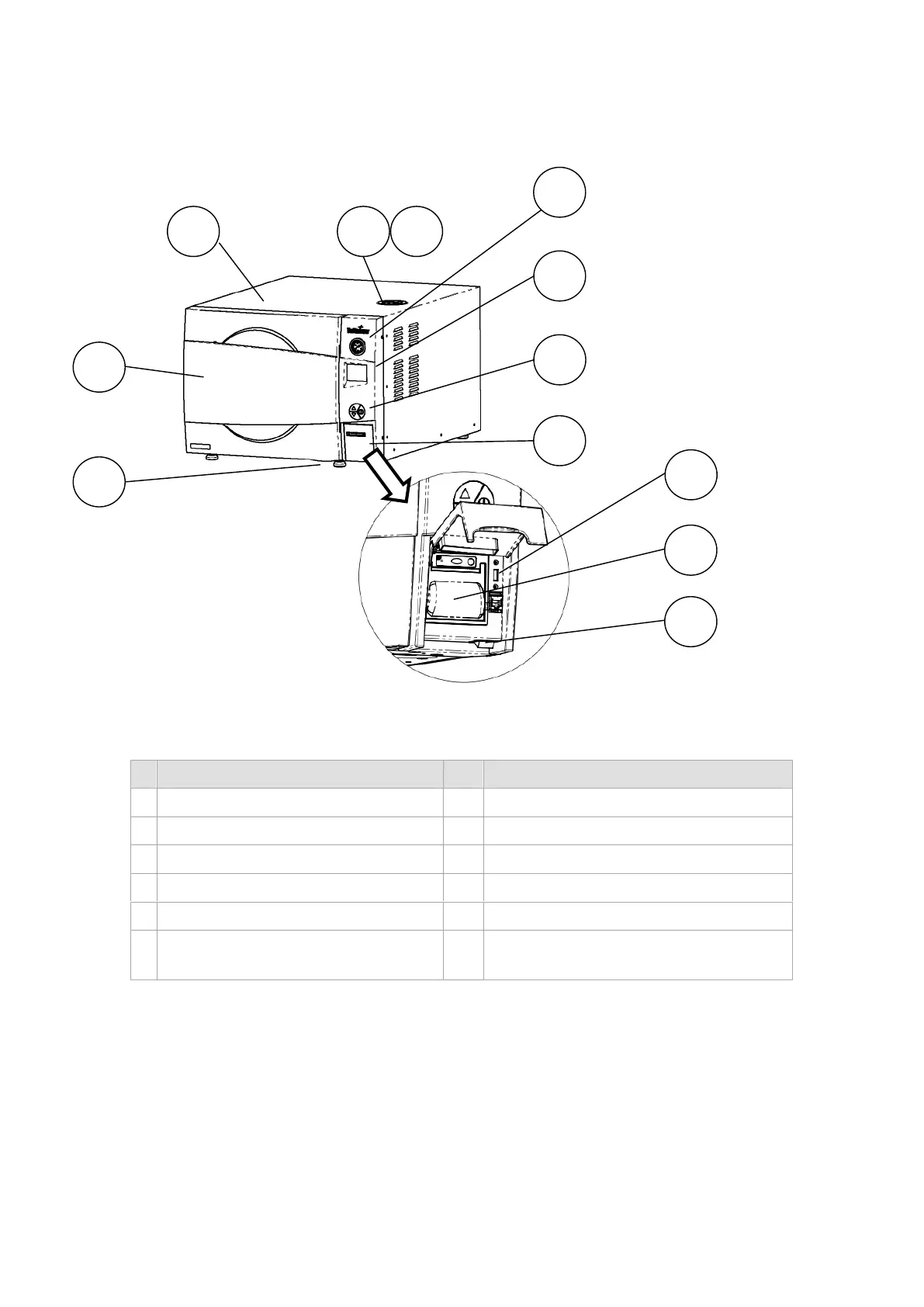

3.15. FRONT VIEW 3850EA-D, 3870EA-D
No.
Description
No.
Description
1
Door opening grip
7
Display
2
Door cover
8
Keypad
3
Autoclave cover
9
Printer cover
4
Mineral-free water reservoir cover
10
USB connector
5
Safety valve
11
Printer (option)
6
Chamber pressure gauge
12
Autoclave On/Off switch & circuit
breaker
3
2
1
4
5
8
6
7
9
11
12
10
