E2 Call Module
Precautions
The modules must be mounted in suitable protective box or car top terminal box. Observe
normal precautions for handling electronic devices, avoid static electricity, dampness and
extreme temperatures. Please read this instruction sheet fully before use.
Specifications
Supply Voltage 24V d.c.
Board Operating Current 300mA
Max Input Voltage (C1-8(16)) 24V d.c.
Max Output Current Call Outputs 300mA @ 24V d.c.
(per output, LED type indicators only)
Output Short Circuit Protection Yes
Dimensions (in DIN carrier) 16 Way 160 x 90 x 60mm
Dimensions (in DIN carrier) 8 Way 90 x 90 x 60mm
Standards EN81-20/50 (EN81-1/2)
8 Way Call Module
+
-
16 Way Call DIP Settings
DIP Name
6 Test Mode
5 250K CAN Baud
4 B8 Node Num
3 B4 Node Num
2 B2 Node Num
1 B1 Node Num
DIP 6 for test mode (normally off)
DIP 5 Turn ON if the node is on the group
bus. (V2.00 software onwards)
DIPs 1 to 4 Set node number 0 to 15,
Maximum of 16 nodes = 256 calls.
Loop and Fault LED’s
The Green LED (D3) will flash every 2 seconds to signify
power to node and that the node is running.
The Red LED (D5) will light continuously for 4 seconds when
the node is first powered up. After this point the red LED
signifies various fault codes. The LED will do a quick flash
every 4 seconds if the node has a fault.
ON
1 2 3 4
SW2
DIP Name
2 CAN Term
1 CAN Term
DIPs 1 and 2 on for CAN termination
These should only be set on the last
node in the network.
SW3
ON
1 2
1 flash every 4 secs = Node not communicating with Ethos
2.
2 flashes every 4secs = Node is experiencing data bus
faults.
3 flashes every 4 secs = Node has stopped transmitting due
to bus faults.
4 flashes every 4 secs = Node has stopped transmitting or
receiving from the data bus
90mm
CC =
0V Call
return
CF =
24V d.c.
Call feed
Module
power
CAN Network
from Ethos and
to other
modules
Network
termination
Node number
+ test dips
Car push return
Wire to CC 0V for
landing calls
Wire to CPR for
car calls on car
node.

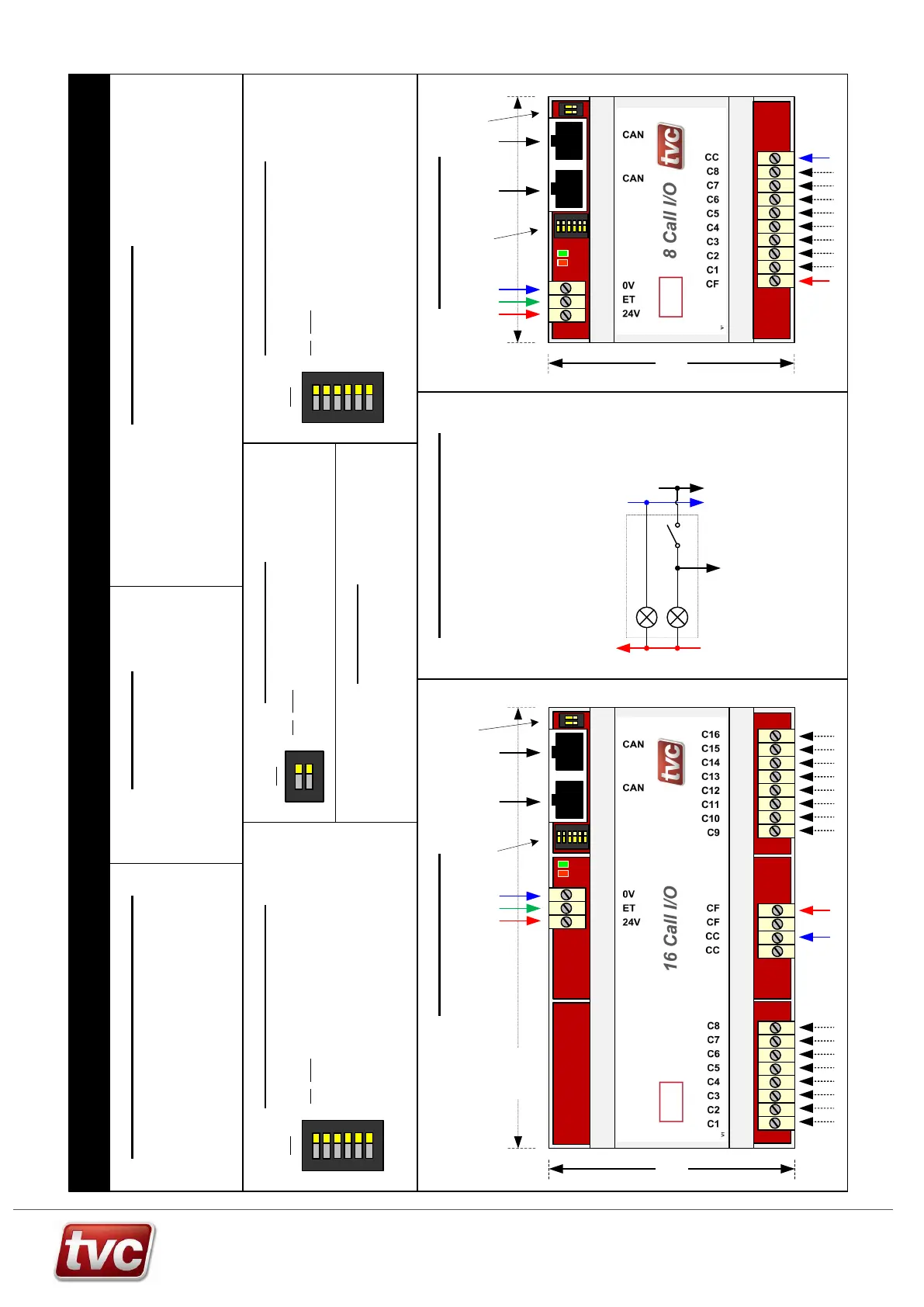

Ethos 2 Call Modules 8 / 16 Way
The Call Modules are designed to be mounted on the lift car or in the panel.
They are used to supply Ethos 2 with car and landing call signals. The
modules are available in 8 way and 16 way form. Consult panel drawings to
determine which calls have been assigned to which module fitted. I/O
includes:- 8 or 16 call I/Os, these are designed for a 24V d.c. LED type call
acceptance lights. The call I/O can be configured via the Ethos 2 MMI.
Please consult main drawings for contract specific wiring and setup.
24V
0V
Earth
5 6
8 Way Call DIP Settings
DIP Name
6 Test Mode
5 250K CAN Baud
4 Spare
3 Spare
2 B2 Node Num
1 B1 Node Num
DIP 6 for test mode (normally off)
DIP 5 Turn ON if the node is on the group
bus. (V2.00 software onwards)
DIPs 1 to 2 Set node number 0 to 3,
Maximum of 4 nodes = 32 calls.
ON
1 2 3 4
SW2
5 6
ON
1 2
3
4
ON
1 2
5
6
160mm
+
-
0V Call
return
24V d.c.
Call feed
Car push with
acceptance indicator
and dual-illumination
Call I/O 3
wire 24Vd.c.
90mm
Module
power
CAN Network
from Ethos and
to other
modules
Network
termination
Node number
+ test dips
24V
0V
Earth
ON
1
2 3 4
ON
1 2
5 6
90mm
+
-
0V Call
return
24V d.c.
Call feed
C1 - Cn
CAN Termination
Call I/O 3
wire 24Vd.c.
16 Way Call Module Typical Wiring to Call I/O
SW2
SW2
J5
J4
J5
J7J6 J3
