TVC Ethos Two - Page 95

Page 95 of 102
TVL 351
ISSUE 15

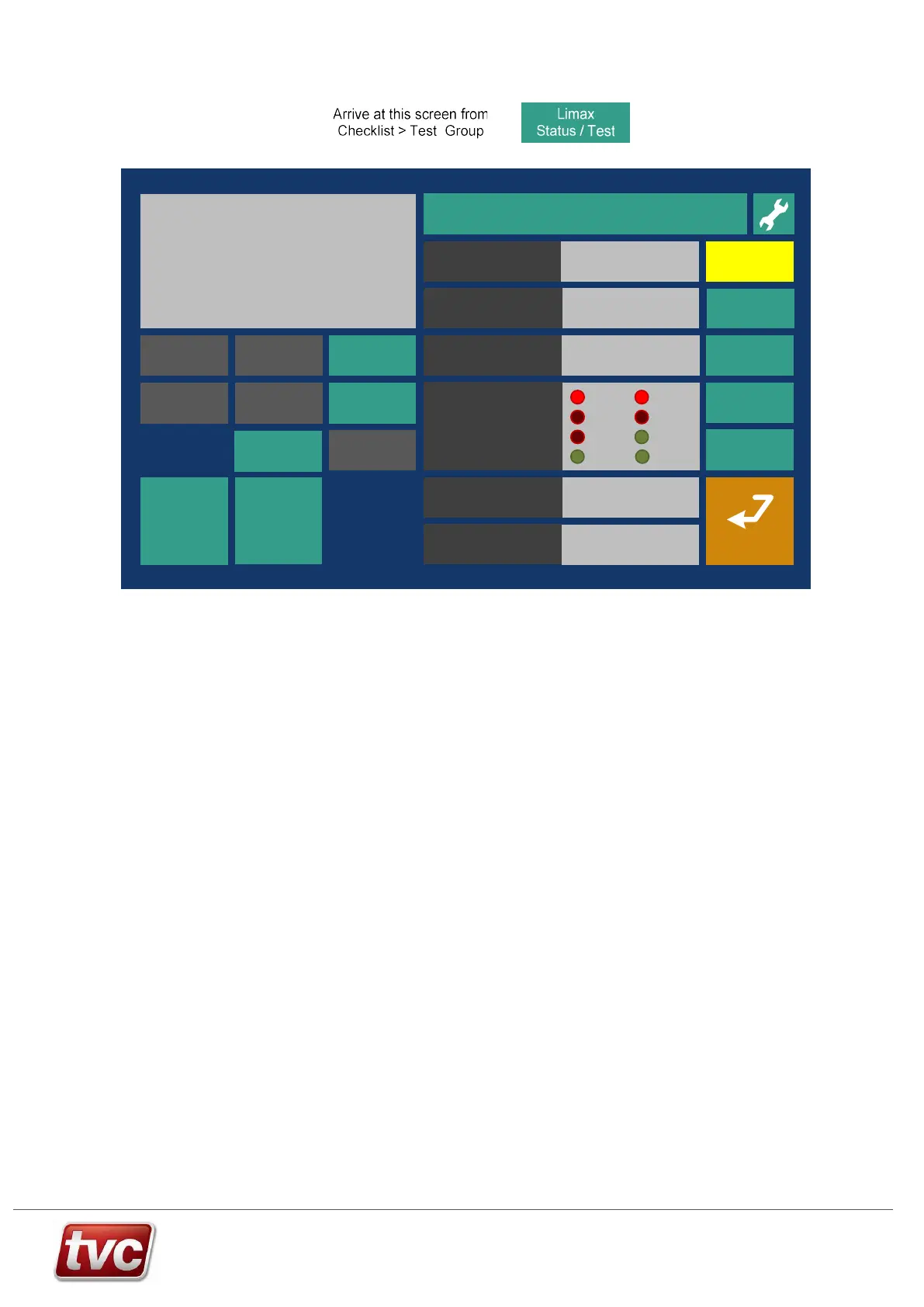

Testing the Limax3CP system.
View Events
Follow on screen prompts to test the Limax3CP safety shaft system.
Back
?
Help
Mode State Limax Norm Mode
Active Error/Fault
No Faults
Fault Codes
None
Instructions:
1) To Test ETSL – Switch Panel to Normal Enable
Test Mode, ETSL Up or Down. Call to terminal
floor.
2) To Test Overspeed – Switch to Normal, Call
to terminal floor.
3) Use buttons to test outputs
I/O States
Enable
Doors
Enable
Test
Mode
Limax Position 14000 mm
Top Car
Call
Bottom Car
Call
OC Output
Test
ETSL
Test Up
ETSL
Test Down
Open SR1
Test eSGC
0xADB12EFC
Configuration CRC
Limax Fault
Reset
Trip Speed
Test
Pre Trig
Test
System
Reset
OC
SR1
SGC
DZR
EN21
DZF
Out of Service
Checklist > Limax Status/Test Fri 03/09/21 15:47:00=Level 1
INUP
INDN
SR1 UCM
Test
Test mode – To Test the Up and Down ETSL function (If Pre-configured / Required).
Limax Test will only work if the following conditions are met:
1) In Normal (LAR Input Active) + Doors Disabled.
2) Safety Circuit and Locks made up.
Testing ETSL for Reduced Buffer Stroke - Sequence of Operation:
1) Move the car to the bottom floor.
2) Select “Limax Status/Test” from checklist.
3) Place in “Enable Test Mode”
4) Place in “ETSL Test Up” sub mode.
5) Move car from lowest level to top level with MMI car call. Limax OC should trip with ETSL mid shaft.
6) Place in “ETSL Test Down” sub mode.
7) Move car from top level to lowest level with MMI car call. Limax OC should trip with ETSL mid shaft.
8) Press “End Test Mode” to cancel and return to normal.
During test mode event code 301 "Limax3CP Test Mode" is logged.
Test mode – To Test the Trip Speed (If Pre-configured / Required).
Trip Speed Test to Test Overspeed Functionality.
Once in “Trip Speed Test” sub mode, Repeat the sequence as above for the ETSL test e.g. run the car from terminal
to terminal.
The Limax will trip once the car reaches the pre-set “Trip Test Speed” which can be adjusted from the “Limax Safe
Setup” screen.
Test mode – To Test the Pre-Trigger Stopping Points for inspection operation (If Pre-configured / Required).
