TYAN TS75-B8252 - Page 96

96
http://www.tyan.com

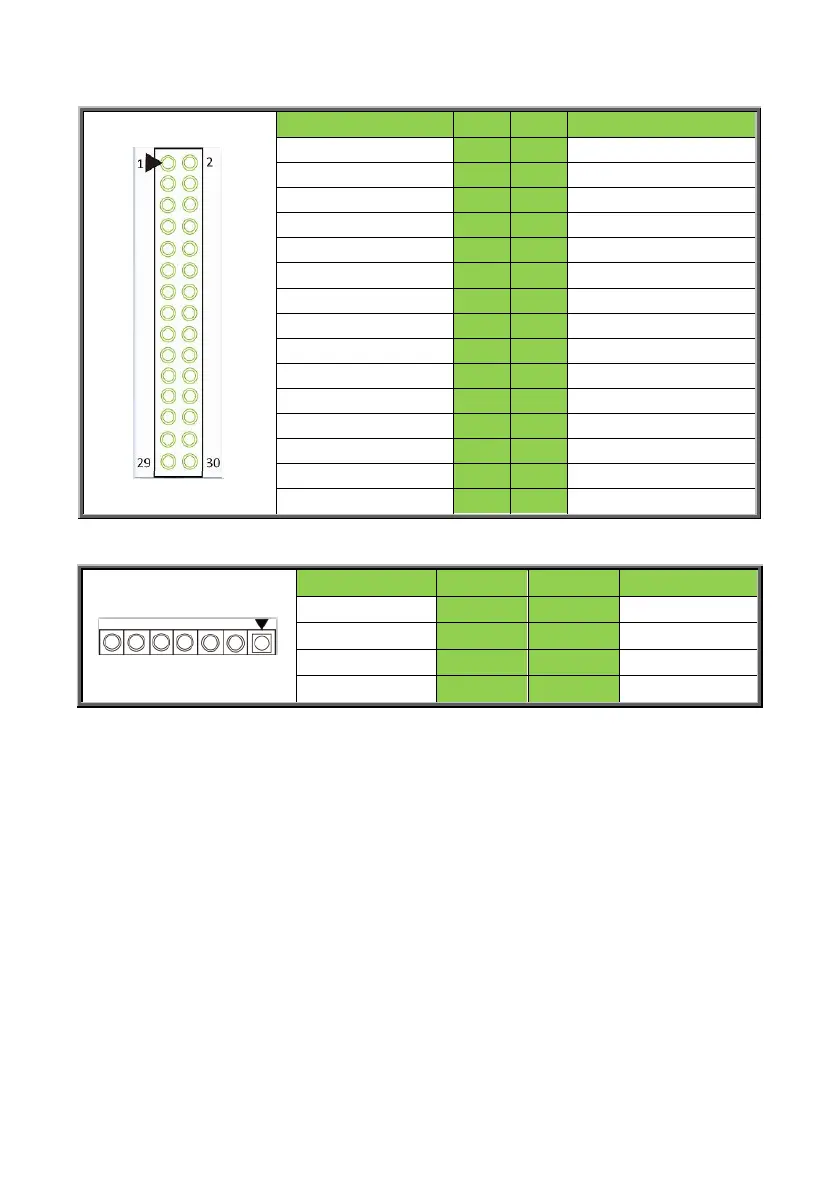

FAN_HD1: Front Fan Connector
Signal
Pin
Pin
Signal
TACH_SYS1
1
2
TACH_SYS6
TACH_SYS2
3
4
TACH_SYS7
TACH_SYS3
5
6
TACH_SYS8
TACH_SYS4
7
8
TACH_SYS9
TACH_SYS5
9
10
TACH_SYS10
GND
11
12
GND
PWM_SYS2
13
14
PWM_SYS1
TACH_SYS11
15
16
BMC_DAT3
TACH_SYS12
17
18
BMC_CLK3
VDD3_DUAL
19
20
PWM_SYS3
VDD3_DUAL
21
22
GND
TACH_SYS13
23
24
TACH_CPU1
TACH_SYS14
25
26
TACH_CPU0
PWM_SYS4
27
28
PWM_SYS5
PWM_CPU0
29
30
GND
J20/J25/J26/J27: 7 Pin Header for hot plug
Signal
Pin
Pin
Signal
VDD_33_Dual
1
5
/
HP_CLK
2
6
/
HP_DATA
3
7
GND
HP-ALERT
4
8
