Tyco Electronics T200 IDENT - Connecting the Printer

10 10
11
2 Installation
2.3 Connecting the Printer
2
3
4
5
1
1 Power switch
2 USB master ports for
keyboard, scanner or
memory stick, I
max
=500mA
3 USB full-speed slave port
4 Ethernet 10/100 Base-T
5 Power connection jack

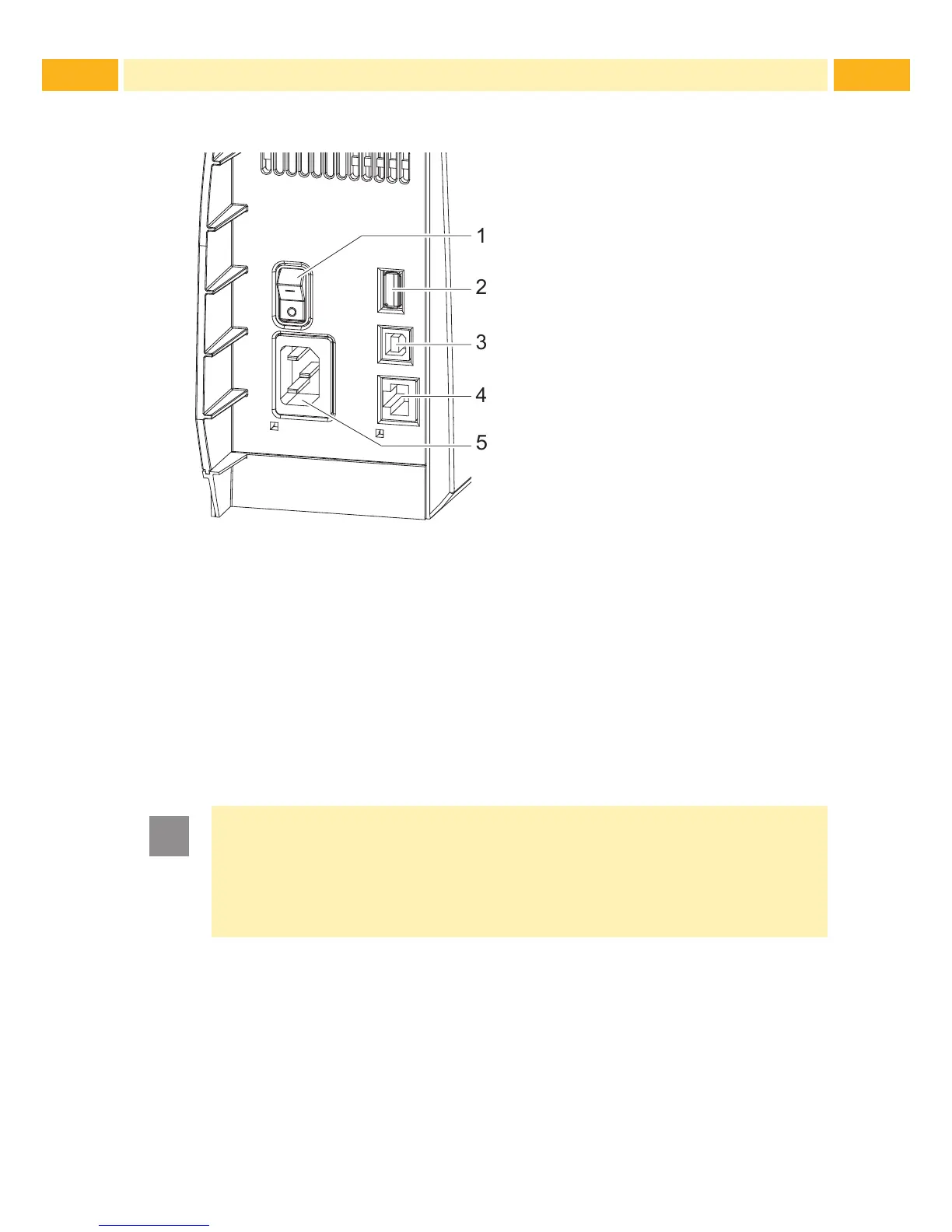

Fig. 4 Connections
2.3.1 Connecting to the Power Supply
The printer is equipped with a wide area power unit for a supply voltage of
100 V to 240 V.
1. Check that the printer is switched off.
2. Plug the power cable into the power connection jack (5).
3. Plug the power cable into a grounded socket.
2.3.2 Connecting to a Computer or Computer Network
!
Attention!
Inadequate or no grounding can cause malfunctions during
operations.
 Ensure that all computers and cables connected to the printer
are grounded.
 Connect the printer to a computer or network by a suitable cable.
