Tyco Electronics T200 IDENT - Loading Media; Loading Media from Roll

14
15
15
4.1 Loading Media from Roll
!
Attention!
 The diameter of media spool greater than 170mm (6
11
/16 inches )
can not be tted in the media roll retainer.
5
7
8
6
9
2
1
3
4

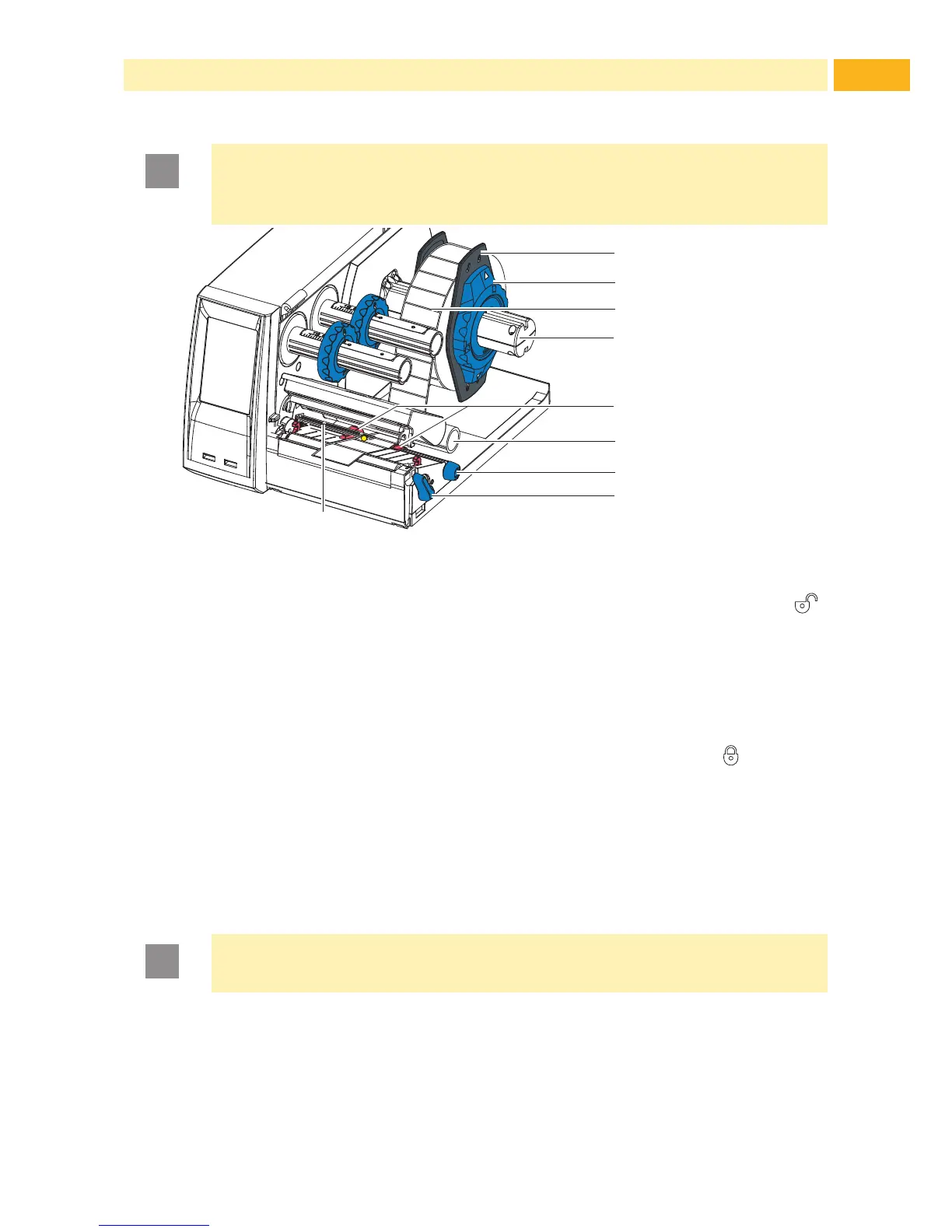

Fig. 7 Loading Media from Roll
1. Turn ring (2) counterclockwise, so that the arrows points to the symbol ,
and thus release the margin stop (1) from the media roll retainer (4).
2. Load media roll (3) on the roll retainer (4) in such a way that the printing
side of the media is visible from above.
3. Re-mount the margin stop (1) and push against the media roll as far as
possible.
4. Turn ring (2) clockwise, so that the arrow points to the symbol , and thus
x the margin stop (1) on the roll retainer (4).
5. Turn lever (8) counterclockwise to open printhead.
6. If the printer is equipped with a cutter or perforator, fold it down.
7. Position guides (5) by turning the knob (7) so that they are several milli-
meters wider than the media.
8. Position material below the roller (6) and guide it through the print unit.
!
Attention!
 Guide media through the print unit below the media sensor (9).
9. Move the guides (5) closely to the edges of the media without clamping
the media.
10. Adjust media sensor ( 4.3 on page 17).
11. If the printer is equipped with a cutter / perforator, guide media through the
cutter / perforator and fold cutter / perforator back to the printing unit.
12. Press printhead retainer down and turn lever (8) clockwise to lock the
printhead.
4 Loading Media
