TYM T494C - Page 74

DESCRIPTION OF TRACTOR CONTROLS
2 - 28
(1)

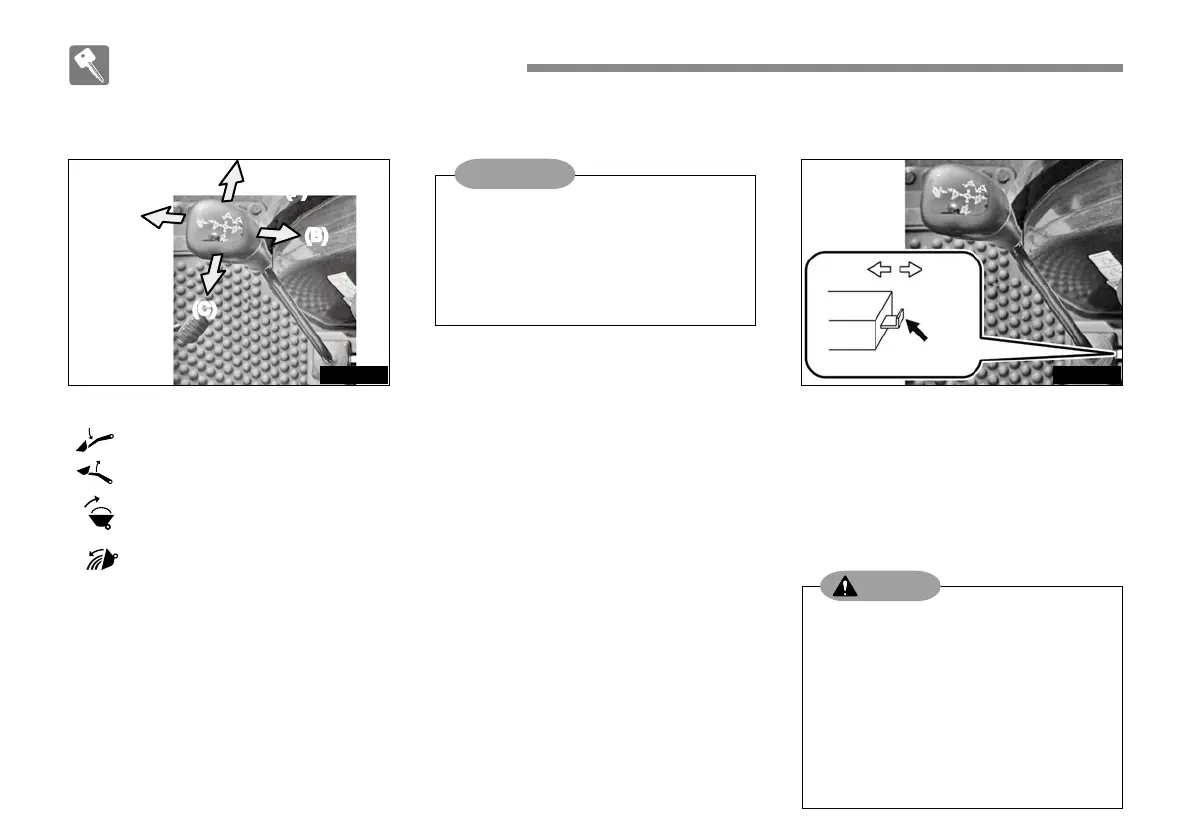

Joystick lever operating directions
- Boom down (A)
- Boom up (B)
- Bucket up (C)
- Bucket down (D)
- Floating (E)
- Bucket down fast (F)
Do not operate the boom cylin-
der and bucket cylinder at the
same time. A loader may mal-
function due to insufficient oil
flow.
•
NOTE
45NO238A
(B)
(A)
(C)
(D)
(2) Joystick lever safety device
T h e r e i s a b ut t o n t o l o c k t he
operation of the joystick lever.
Pulling it forwards unlocks the lever
while pushing it backwards locks
the lever.
Make sure to set the joystick
lever in the neutral position and
press the lock button to lock the
lever in that position when the
lever is not in use. Otherwise,
an implement may fall acciden-
tally by unintended operation of
the lever.
•
WARNING
45NO238A
Release
Lock
Lock button
(E)
(F)
