170
turning effect.

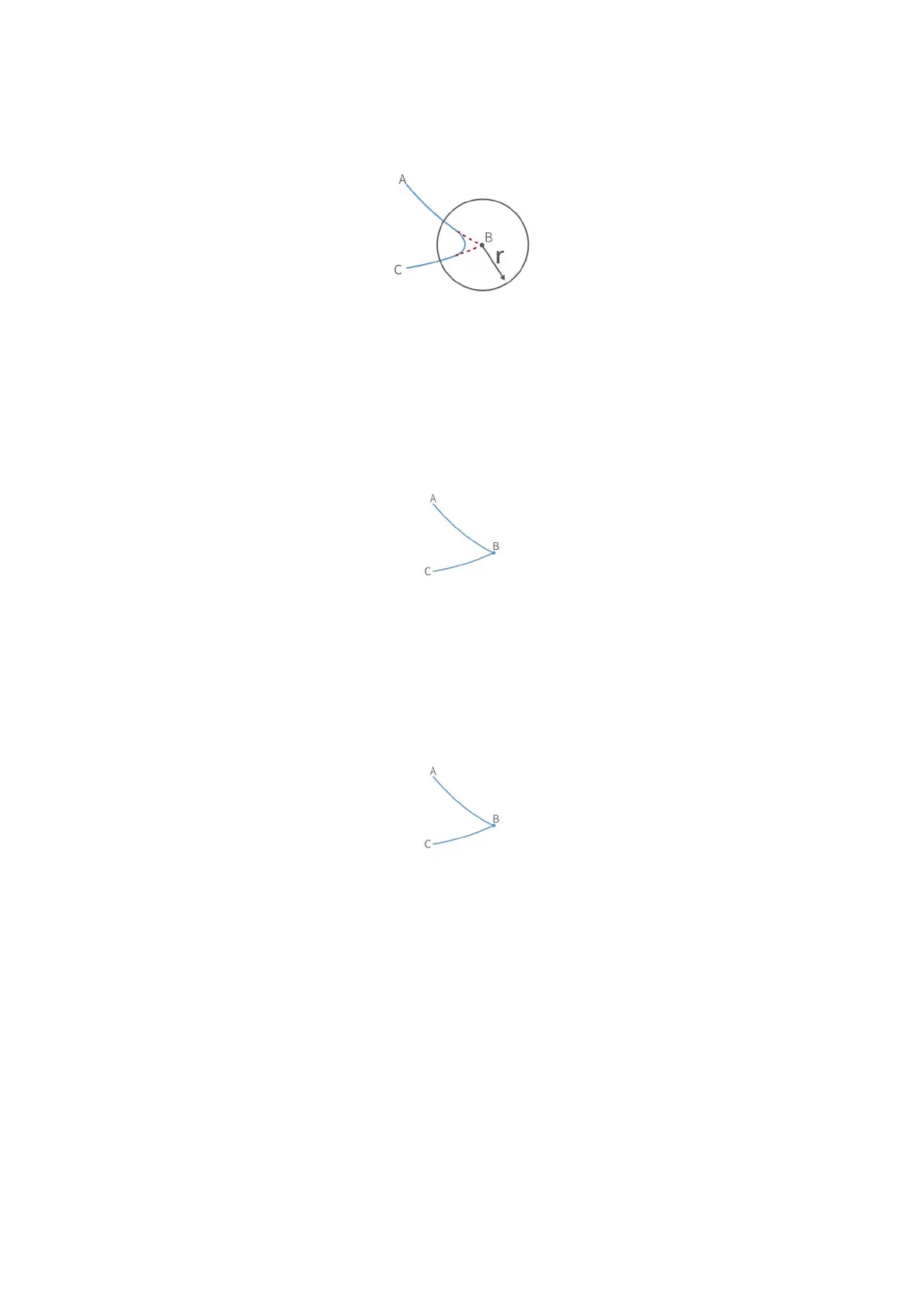

Note: The radius of the arc is smaller than D
AB
and D
BC
.
(2) Radius = 0. There is no arc transition at the turn, it will be a sharp turn
with no deceleration, as shown in the figure below.
(3) Radius <0. There is no arc transition at the turn, this speed will not be
continuous between this and next motion, as shown in the figure below,
speed will decelerate to 0 at point B before moving to C.
Note: Radius <0 cannot realize continuous motion. If you need to plan a
continuous motion of the robotic arm, please make sure Radius>0.
Wait = false
The wait in the "move joint" command indicates whether it is necessary
to wait for the execution of this command before sending the next
