IGNITION
DESCRIPTION OF THE SYSTEM
System logic
- The fundamental parameter is the rpm reading from the
pick-up
- Based on the information from this sensor the ECU calcula
tes the moment in which the spark plug should fire.
Components
- Engine rpm sensor (pick-up)
Sensor resistance: 105 -124 _ at 20º C
(magneto side connector between R and B cable).

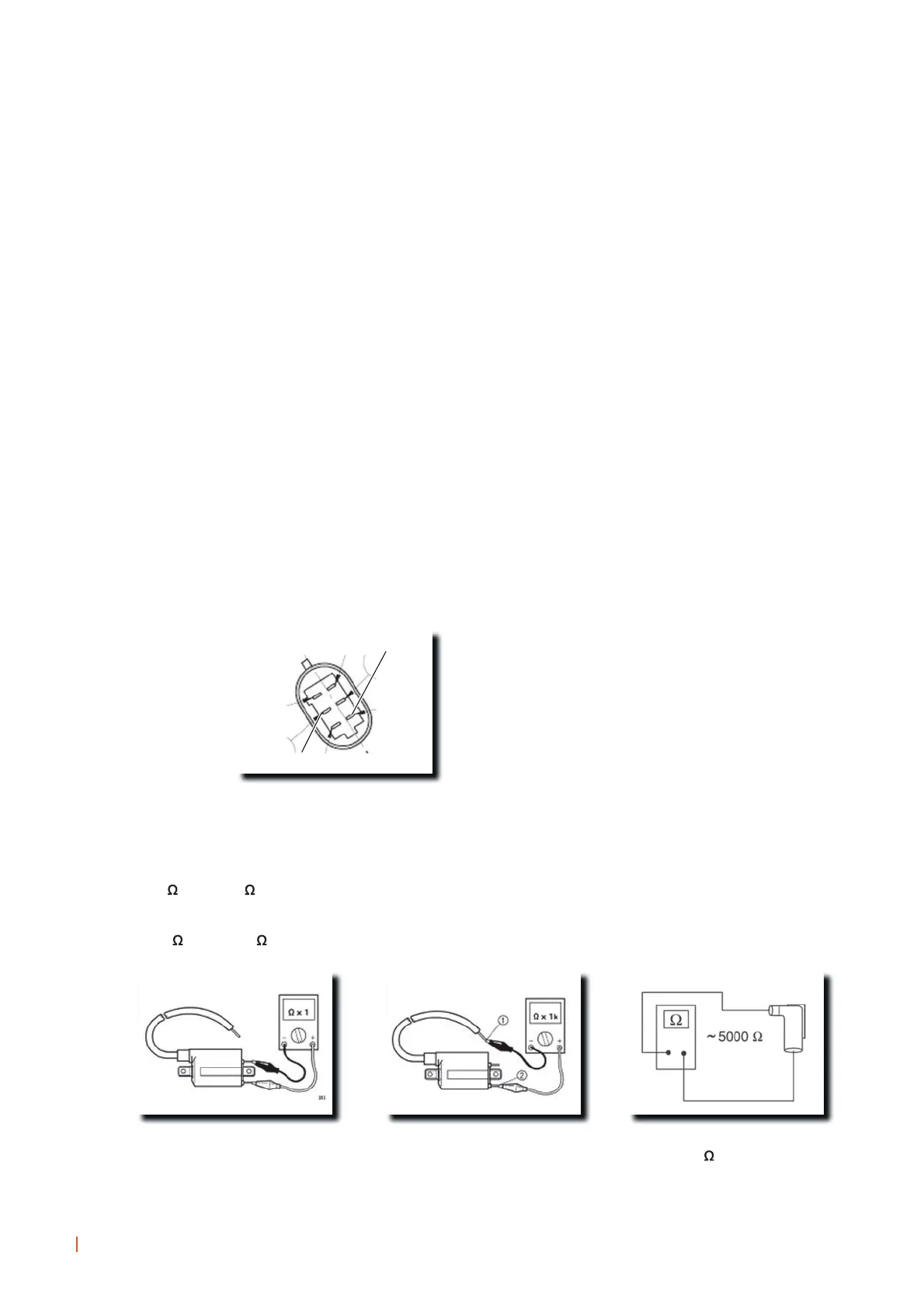

- Ignition coil
Resistance of primary winding
0,21
+/- 0,025 at 25+/-5º C
Resistance of secondary winding
3,1 K +/- 0,31 K at 25 +/-5º C
Primary winding Secondary winding Resistance of spark plug cap
5 K
at 20 ° C
Red (R)
Black (B)
19
ELECTRICAL SYSTEM SPECIFICATIONS
WORKSHOP MANUAL
