um DSR EX 125 - Magneto Installation

M AGNETO

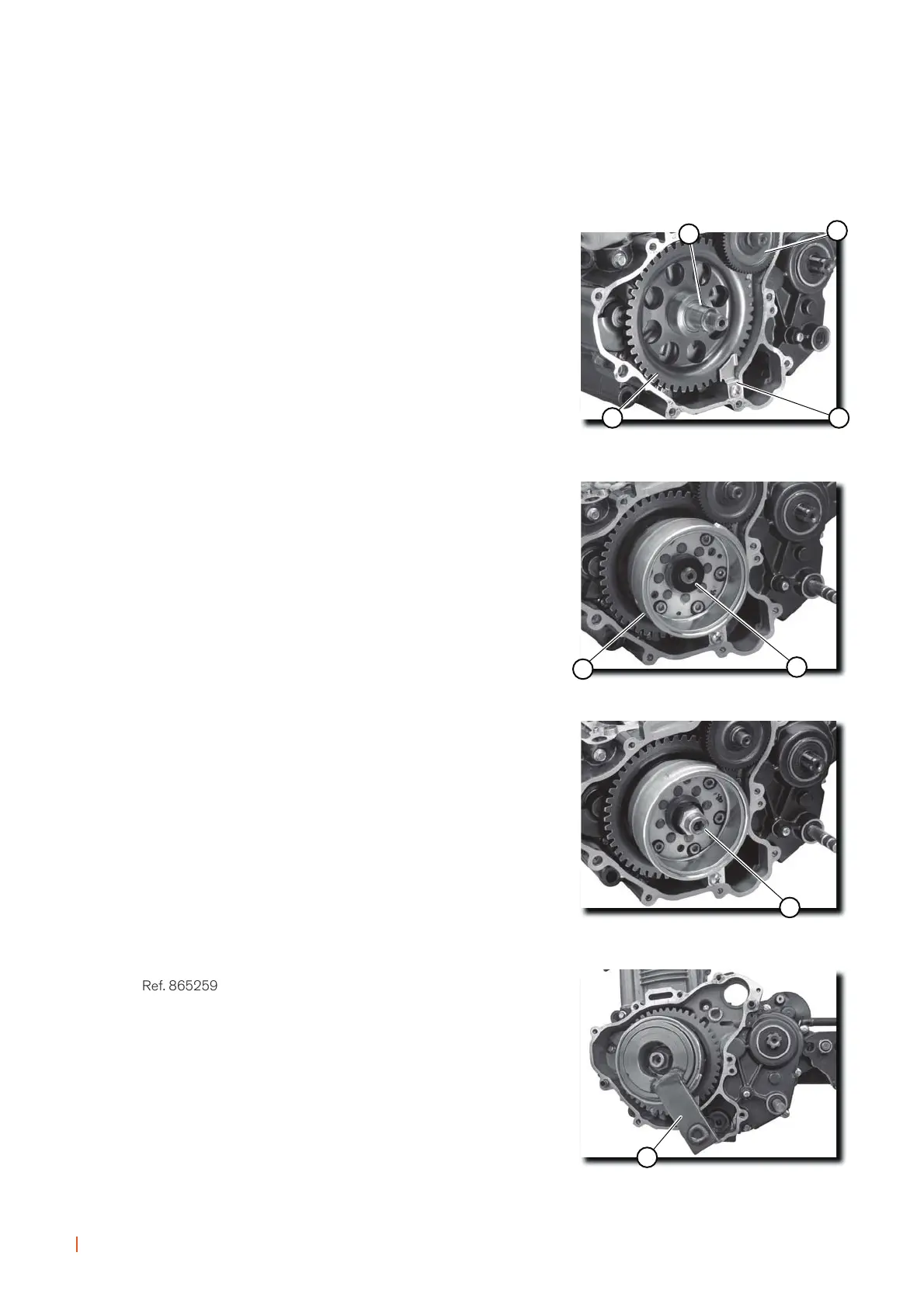

Fit:
- The 2 starter system gears (1).
- The key (2).
- The safety roller (3).
Fit:
- The rotor (4)
- The washer (5).
Fit:
- The rotor nut (6).
Fifar:
- The rotor onto the magneto flywheel, using the magne-
to fl ywheel locking tool (7).
Magneto flywheel locking tool:
Ref. 865259
Magneto flywheel rotor nut:
8,3-9,0 kgf.m (83-90 N.m)
N.B.
POSITION A RUBBER PAD BETWEEN THE TOOL FIXING
POINT AND THE MAGNETO FLYWHEEL TO PREVENT THIS
FROM BEING DAMAGED.
5
6
31
1
2
4
7
76
ASSEMBLING THE ENGINE
AND ADJUSTMENTS
WORKSHOP MANUAL
Ref. T01010046
