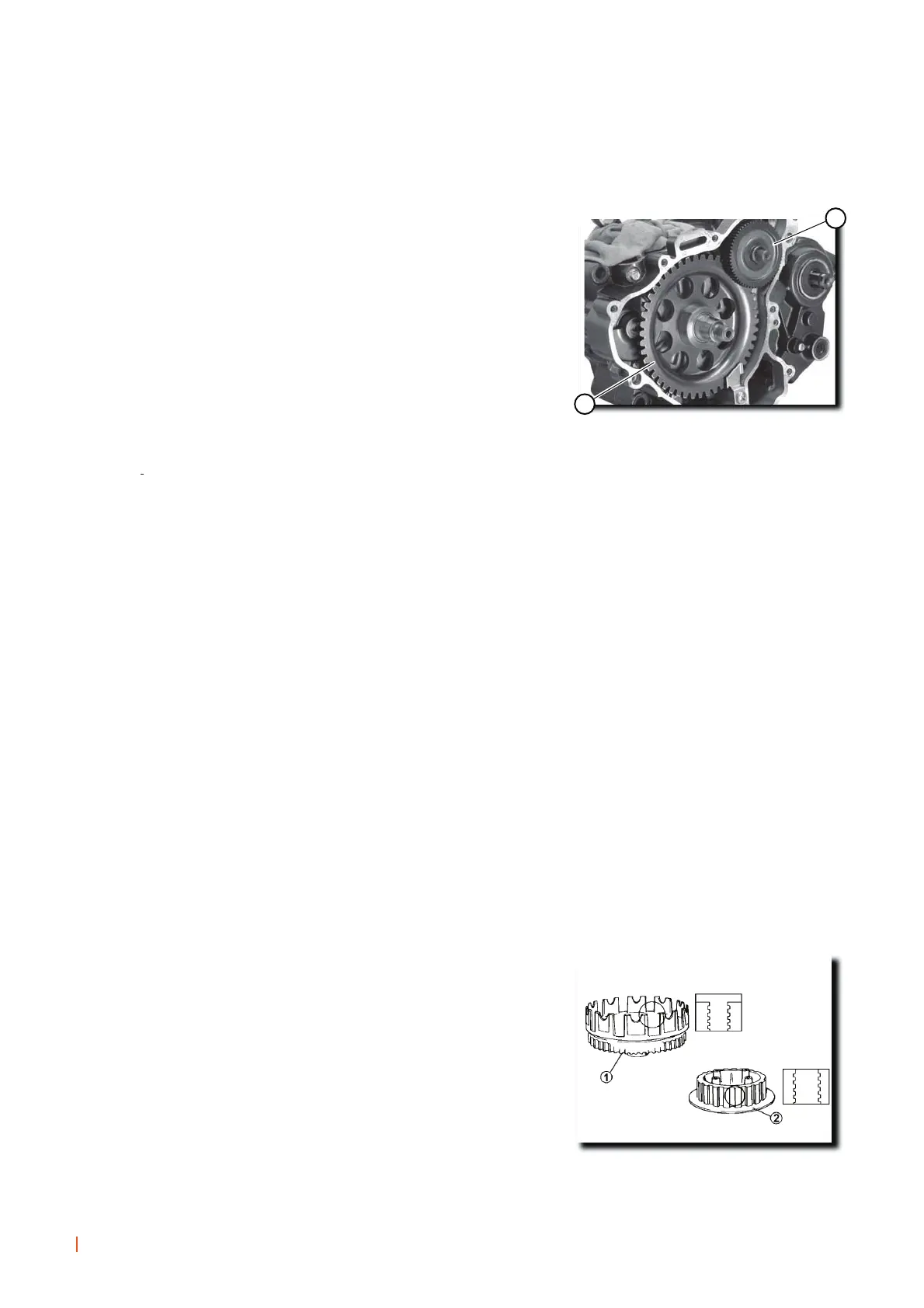

I NSPECTING THE CLUTCH BELL HOUSING
1. Inspect:
- Primary sprocket teeth (1) .
- Bell housing sprocket teeth (2) .
Wear/damage => Renew both sprockets.
Excessive noise when functioning => Renew both spro-
ckets.
I NSPECTING THE CLUTCH
1. Inspect:
- Friction disks
Wear/damage => Renew the friction disks assembly.
2. Inspect:
- Separators
Damage => Renew the separators assembly.
3. Inspections:
- Clutch springs.
Damage=> Renew the springs assembly.
4. Inspect:
- Claws (of the bell housing) (1).
Rough edges/wear/damage => Eliminate the rough ed-
ges or renew the bell housing.
- Clutch assembly slots (2).
Rough edges/wear/damage => Renew the clutch assembly.
N.B.:
ROUGH EDGES ON THE BELL HOUSING CLAWS AND ON
THE CLUTCH HUB SLOTS LEAD TO UNEVEN FUNCTIO-
NING.
