um DSR EX 125 - C Ylinder Head, Cylinder and Piston

C YLINDER HEAD, CYLINDER AND PISTON

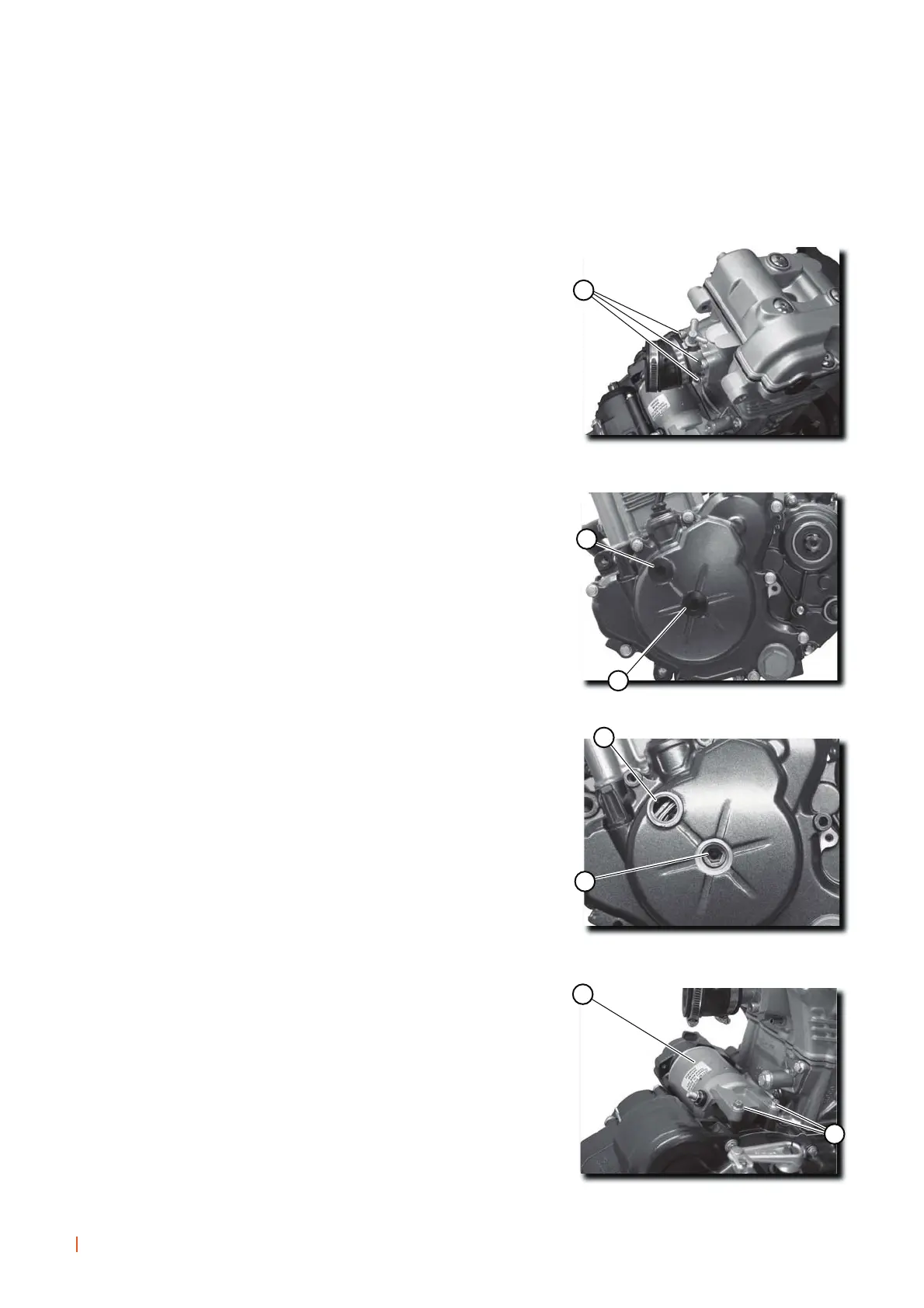

Extract:
- The inlet manifold, by removing the 3 bolts (1).
Remove:
- The TDC (top dead centre) checking plug (2).
- The central plug (3).
Align:
Use an Allen key (b) to turn the crankshaft in an anti-cloc-
kwise direction until the mark (a) is aligned with the statio-
nary point.
N.B.:
GIRE EL CIGÜEÑAL EN SENTIDO ANTIHORARIO.
N.B.:
REMOVE THE STARTER MOTOR TO ENABLE EASY EXTRAC-
TION OF THE TIMING CHAIN TENSIONER .
Extract:
- The 2 bolts (4) securing the starter motor.
- The starter motor (5).
1
a
b
2
3
4
5
36
DISMANTLING THE ENGINE
WORKSHOP MANUAL
