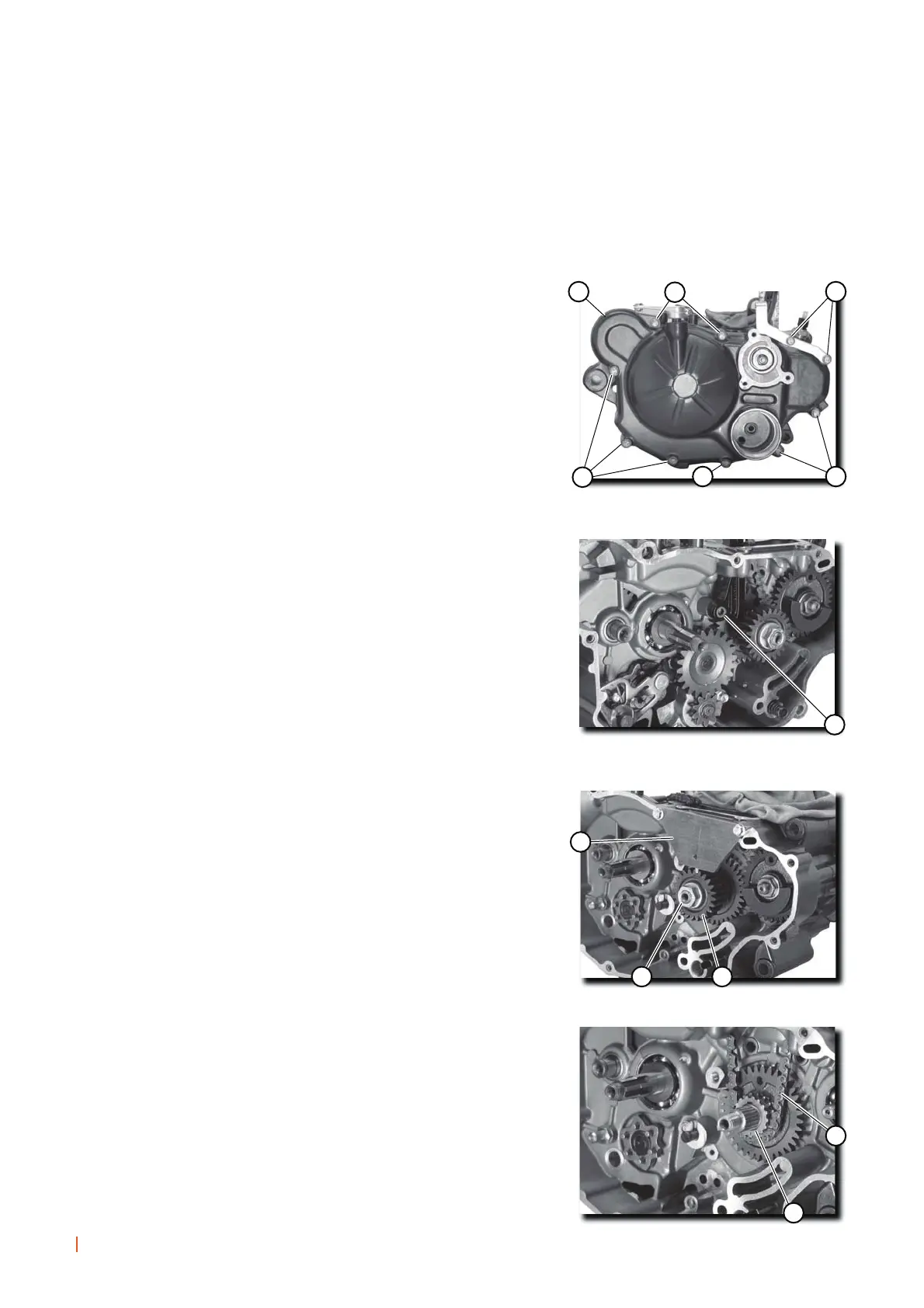

Extract:
- The 10 bolts (13) from the clutch cover.
- The clutch cover (14).
- The clutch cover gasket. (Renew when refitting).
Remove the clutch assembly (see the chapter).
Extract:
- The fixed timing chain roller (15).
Fit:
- The crankshaft sprocket locking tool (16).
Crankshaft sprocket locking tool:
Ref. 864487
Extract:
- The nut (17).
- The crankshaft sprocket (18).
Extract:
- The timing chain sprocket (19).
- The timing chain from the top (20).
15
13
13
14
13 13
13
20
19
18
16
17
35
DISMANTLING THE ENGINE
WORKSHOP MANUAL
Ref. T01010050
