um DSR EX 125 - Oil Pump

OIL PUMP

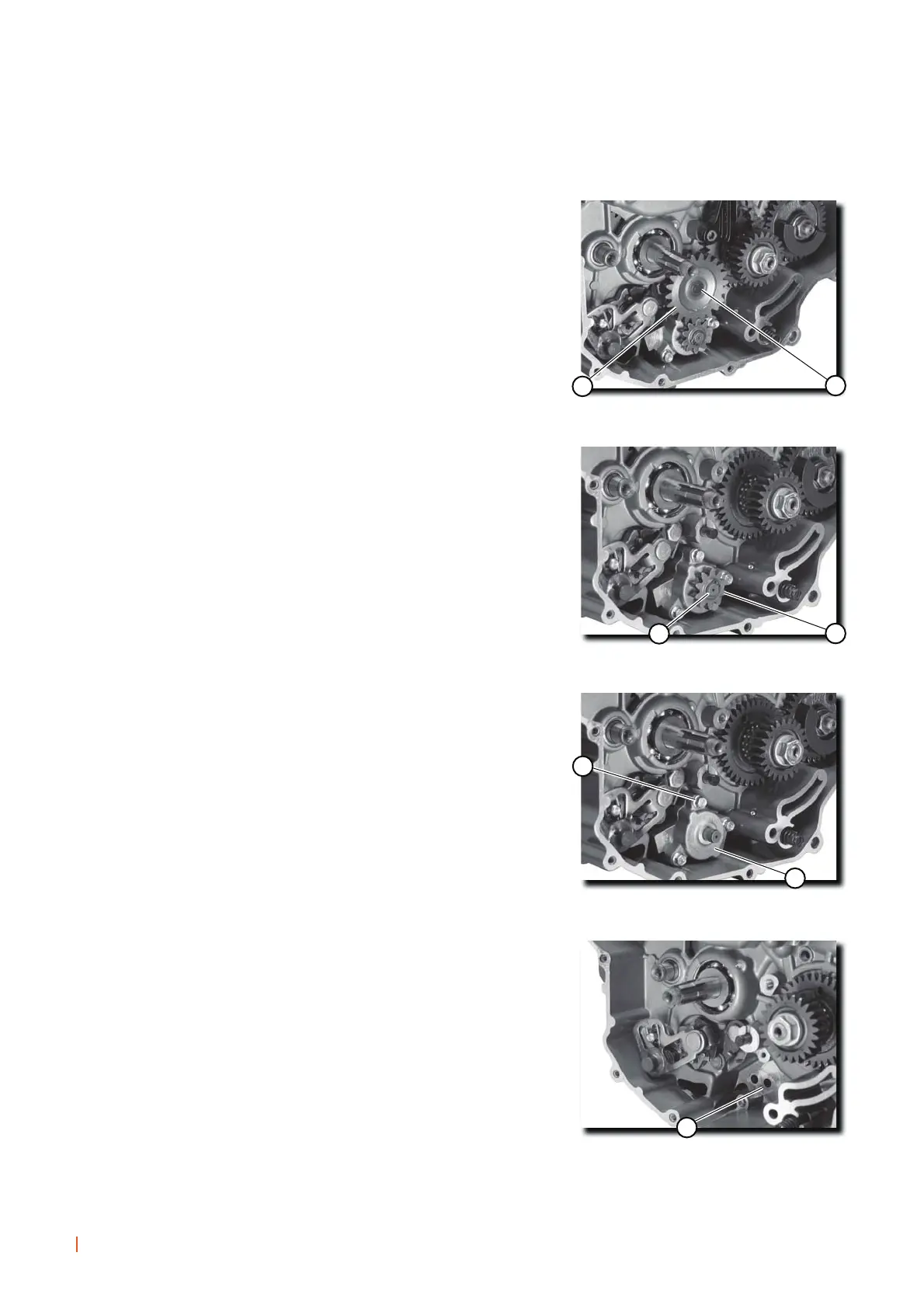

Remove the clutch assembly (see the chapter).
Extract:
- The intermediate starter gear clip and washer(1).
- The intermediate starter gear (2).
Extract:
- The oil pump gear clip (3).
- The oil pump gear (4).
Extract:
- The 3 oil pump bolts (5).
- The oil pump (6).
Extract:
- The oil pump gasket (7).
